- Page 1 DTRONICS DT-01 User’s Manual DT-01 MANUAL...
-
Page 2: Introduction

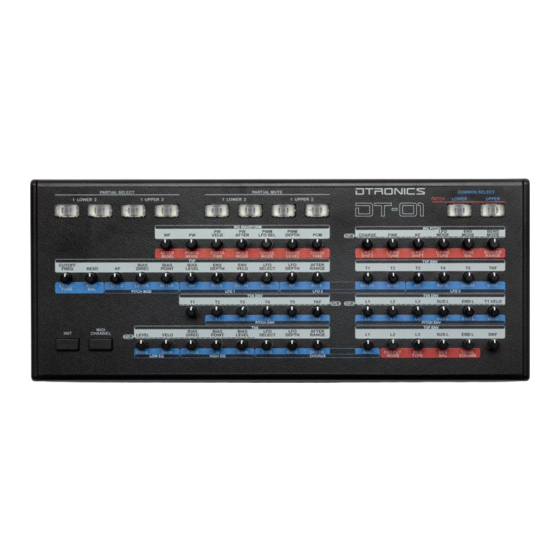

DTRONICS INTRODUCTION The DT-01 is a programmer specially designed for the D-50, D-550 and D-05. Using the Programmer, a sound on the D-50 can be much more easily and quickly edited or even synthesized from scratch. The MIDI Exclusive messages (specific messages used by individual manufacturer) sent from the DT-01 does the editing and synthesizing. -
Page 3: Table Of Contents
PREPARATION ..................6 INIT button ..................7 BASIC OPERATION ................7 Editing Common Parameters .............. 8 Editing Partial Parameters ..............8 Partial Mute ..................8 3 SPECIFICATIONS ................. 9 Front Panel ..................9 Rear Panel ................... 9 Accessories ..................10 DT-01 MANUAL... - Page 4 DTRONICS Document revisions Date Version Change 12-01-2019 Initial document DT-01 MANUAL...
-
Page 5: Setup
• USB power cable MIDI Connections IN / OUT / THRU The messages fed into the MIDI IN of the DT-01 is mixed with the sound editing messages created in the DT-01, and the mixed message is sent through MIDI OUT. The MIDI THRU sends out the exact copy of... -
Page 6: Operation
DT-01. The DT-01 defaults to channel number 1 at power up. The DT-01 MIDI channel can be changed to other number than 1. Hold MIDI Channel button and press the channel button you want. For channel 1 to 10: press buttons 1 to 10... -
Page 7: Init Button
►The edited data is not automatically written into memory, therefore will be erased when a different Patch is selected on the D-50 or the unit is turned off. If you wish to retain the edited data, take the appropriate writing procedure on the D-50. DT-01 MANUAL... -
Page 8: Editing Common Parameters
The Partial Selector Buttons of the selected Partials go out and the sounds are muted. The Partial Mute setting is erased when the unit is turned off. * Partial Mute you have set here will be automatically written into the D-50's memory by taking writing procedure on the D-50. DT-01 MANUAL... -
Page 9: Specifications
MIDI Channel Button Common Selector Button x 2 Partial Selector Button x 4 Partial Mute Button x 4 Init Button Rear Panel USB power input USB power output (e.g. to power the D-05) MIDI IN Connector MIDI OUT Connector DT-01 MANUAL... -
Page 10: Accessories
DTRONICS Consumption: 100mA (DC 5V) Weight: 0.620kg Dimensions: 300(W) x 123(D) x 57(H) mm/ Accessories MIDI/Sync Cable x 1 USB power cable DT-01 MANUAL...
