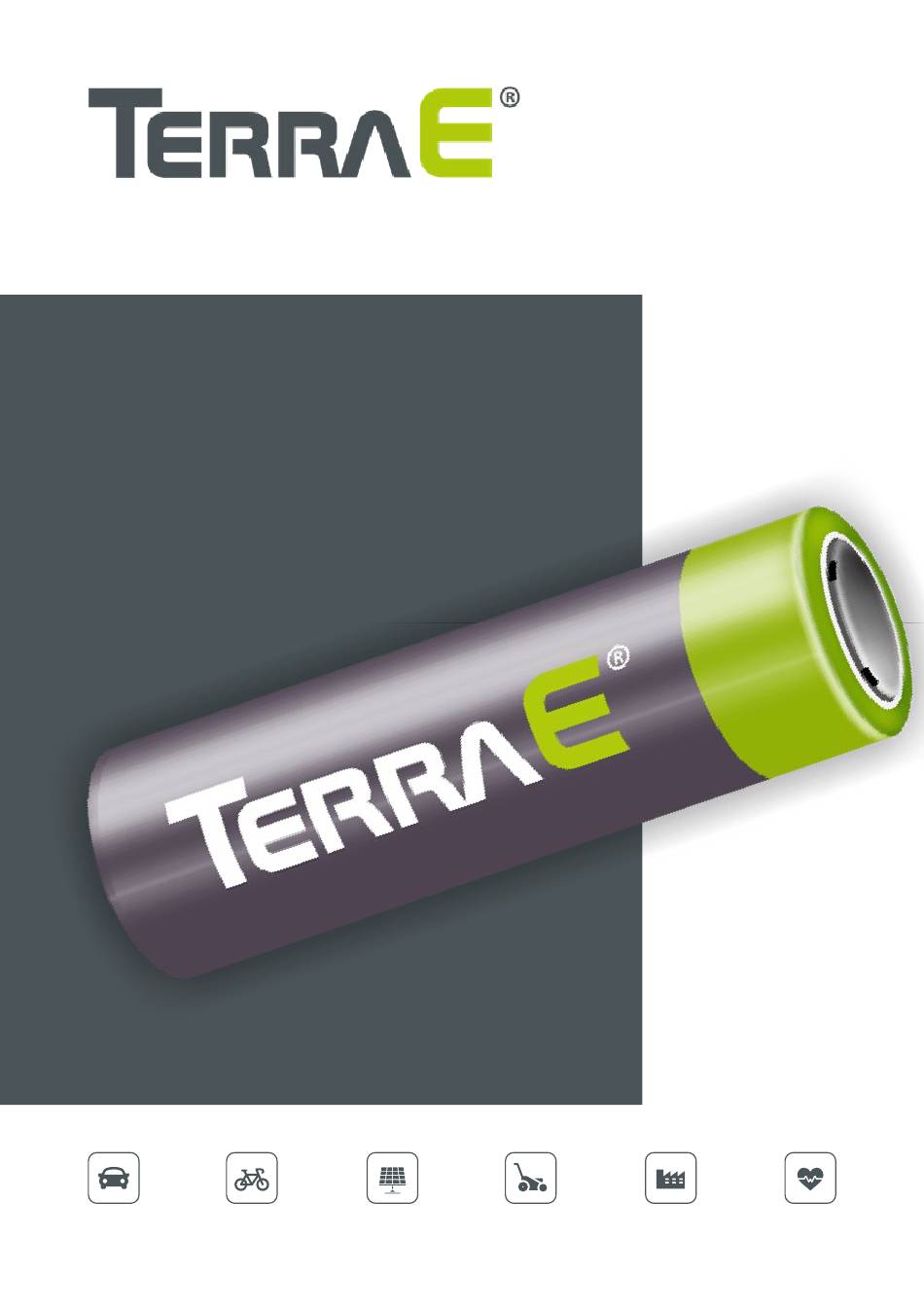

- Page 1 CELL SPECIFICATION INR 18650 35 E E-MOBILITY DRIVE ENERGY STORAGE POWER- AND INDUSTRIAL MEDICAL SYSTEMS SYSTEMS GARDENTOOLS...
-
Page 2: General Specifications
2.0 C ≥90% shall be compared with the discharge 3.0 C ≥88% capacity at 0.2C TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein... - Page 3 1 month: -5 to 45℃ -5~35℃ 3 months: -5 to 45℃ 12 months: -5 to 30℃ 3.16 STORAGE ≤75%RH 3.17 HUMIDITY WEIGHT ≤50g TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
- Page 4 4.2 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05C. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
- Page 5 Each cell shall meet or exceed the requirements of Table 2. Table 2: TEMPERATURE AVAILABLE CAPACITY -20°C ≥70% 0°C ≥80% 25°C 100% 45°C ≥100 % 60°C ≥100% TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
-
Page 6: Safety Tests
The capacity of delivery cell is under 10 - 30% SOC. It is not specified more than 10% capacity remain at customer, because of self-discharge. During transportation, keep the cell from acutely vibration, impacting, solarization, drenching. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein... - Page 7 INR 18650 35 E Cylindrical Lithium Ion Cell Attached 1: Cell Size Drawing Attached 2: Packaging Sketch map Drawing TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
-
Page 8: Handling Instructions
When stored within 1 month: -5°C ~ 45°C When stored within 3 months: -5°C ~ 45°C When stored within 12 months: -5°C ~ 30°C TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein... - Page 9 Overcurrent protection: If the discharge current of the single cell exceeds about 2C for 5s, the overcurrent protection should cut off the discharge current circuit. Short circuit protection: The battery pack shall be equipped with short-circuit protection. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
-
Page 10: Safety Instructions
2.1.2 Don’t place the batteries in a chaotic manner, away from metal and other conductive materials to avoid positive (+) negative (-) short circuit, do not reverse the positive (+) negative (-) pole. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein... - Page 11 2.2.9 Don’t store the cell in a pocket or a bag together with metallic objects such as keys, necklaces, hairpins, coins, or screws. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
- Page 12 If you choose to use this battery, your use will be regarded as an endorsement of all the contents of this statement. The amendment, renewal and final interpretation of this statement are belong to TerraE. TerraE Confidential Proprietary and not be reproduced without written permission from BMZ Germany GmbH, Zeche Gustav 1, 63791 Karlstein...
-
Page 13: Any Questions
© BMZ September 24, 2021 All rights reserved. Preliminary data sheet. Although we have taken great care in preparing this document, BMZ does not accept any responsibility for errors or omissions. All information included here may be changed at any time without prior notification.
