Summary of Contents for BMZ 10S3P

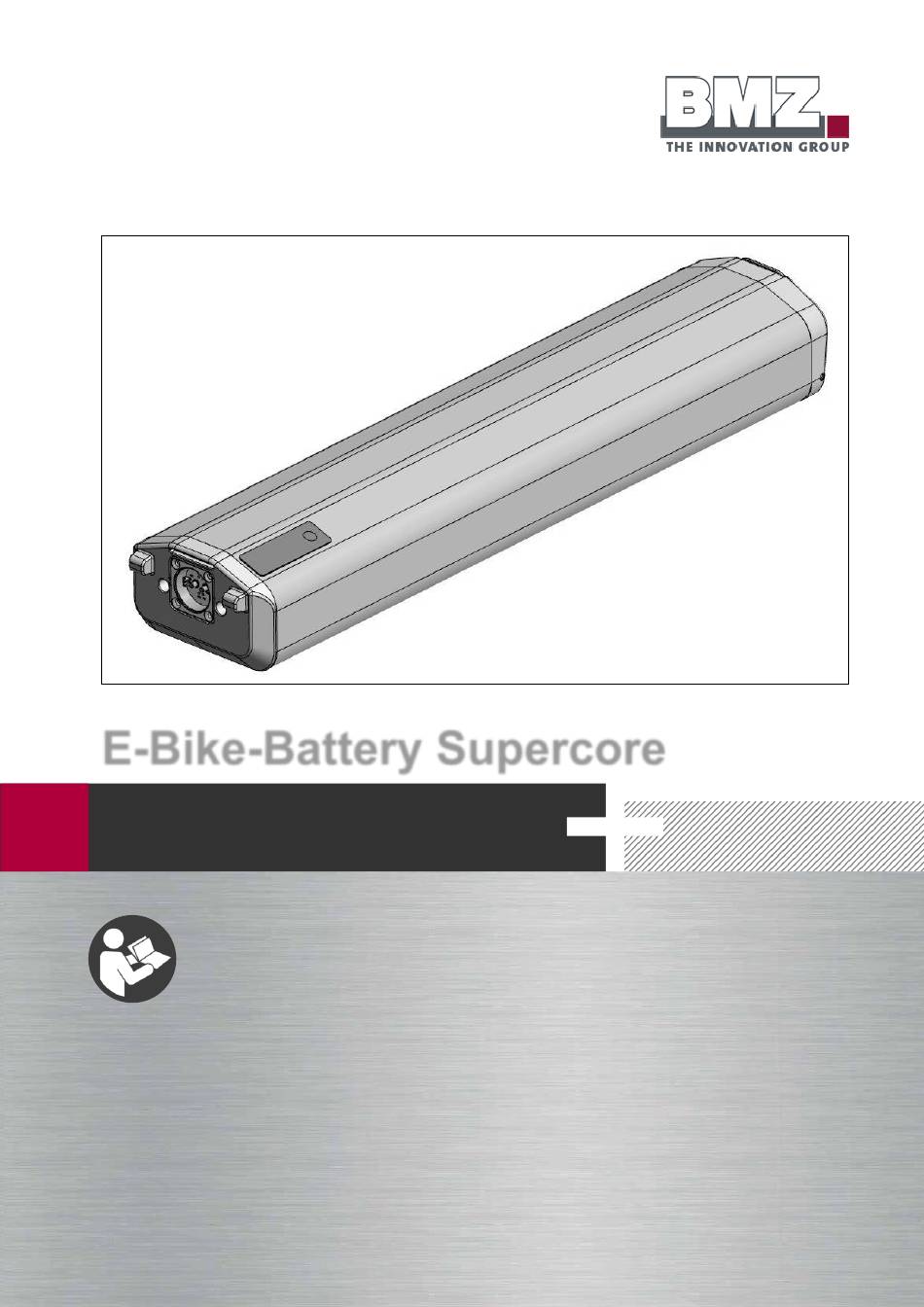

- Page 1 E-Bike-Battery Supercore OPERATING INSTRUCTIONS...
- Page 2 Art. No. 601489 (Shimano 20 Ah without cover) Art. No. 601590 (Alber 20 Ah) Country of Origin: Germany Mark: CE MANUFACTURER BMZ Batterien-Montage-Zentrum GmbH Zeche Gustav 1 63791 Karlstein Germany Ph.: +49 (0) 6188 9956-0 Fax: +49 (0) 6188 9956-900 E-mail: kontakt@bmz-group.com Web: www.bmz-group.com...
- Page 3 IMPORTANT Carefully read the operating instructions before using the e-bike battery. These operating instructions contain necessary information on the correct use of the rechargeable e-bike battery. They are directed towards the end user. Keep these instructions accessible to all battery users.
-
Page 4: Table Of Contents
CONTENTS CONTENTS CONTENTS Product Description Overview Intended use Technical data LED display Compatible Charger Labeling Safety Safety Advice General Safety Advice Safety Advice for People with implants Emergency Information First-aid measures Fire fighting measures Operation Safety Advice Switch on Charging Switch Off Troubleshooting Cleaning... -
Page 5: Product Description
COMPATIBLE CHARGER TECHNICAL DATA Art. No. 28555 Charger 10S | 42 V | 4,5 A | 100-240 VAC 10S3P 10S4P Nominal Capacity 15 Ah 20 Ah Energy 555 Wh 750 Wh Max. -
Page 6: Labeling
1 PRODUCT DESCRIPTION LABELING EXAMPLE LABEL SYMBOLS Symbol Description Lithium-ion battery symbol (contains recyclable materials) Conformity with relevant European directives General warning symbol Do not immerse in liquids. Do not throw into fire. Do not charge broken battery. Follow operating instructions. Do not dispose in domestic or industrial waste. -
Page 7: Safety
Only use the battery that is approved for your e-bike. AFTER INHALATION Use this battery only in e-bikes with BMZ In case of damage or improper use chemical systems. Your battery is only protected from gases may leak. Leave area immediately and dangerous overloading if used in the intended breath fresh air. -
Page 8: Fire Fighting Measures
2 SAFETY FIRE FIGHTING MEASURES WARNING Inhaling smoke can cause poisoning. When facing the fire, position yourself with wind in your back. If possible, use breathing protection. If possible, remove other batteries carefully. Evacuate all persons from immediate area of fire. -
Page 9: Operation
TROUBLESHOOTING OPERATION Problem Possible Solution SAFETY ADVICE All LEDs are Battery is damaged. Only use a battery that has been approved for blinking Contact your vendor. use in your e-bike. Check if the battery and First LED blinks Battery is empty. Charge housing are intact before use. -
Page 10: Storage And Transportation
4 STORAGE AND TRANSPORTATION STORAGE AND TRANSPORTATION STORAGE SAFETY PROVISIONS Remove battery from e-bike or charger when it is not in use. Do not store battery near hot or inflammable objects. Danger of explosion. Temperatures above 140 °F (60 °C) may lead to leakage and damage to battery’s casing. -
Page 11: Disposal
DISPOSAL Do not dispose your old battery with your household waste. In EC countries it is mandatory to return batteries. Returning old batteries is free of charge. To avoid a short circuit, fully discharge the battery and cover its poles with adhesive tape. - Page 12 BMZ GmbH BMZ Company Ltd. BMZ Poland Sp. z o.o. Zeche Gustav 1 2nd Building, NO.2 Jinlong Street Alberta Einsteina 9 63791 Karlstein am Main Baolong Industry Zone, Longgang PL–44–109 Gliwice Germany 518116 Shenzhen Poland China Phone +49 61 88-9956-0...
