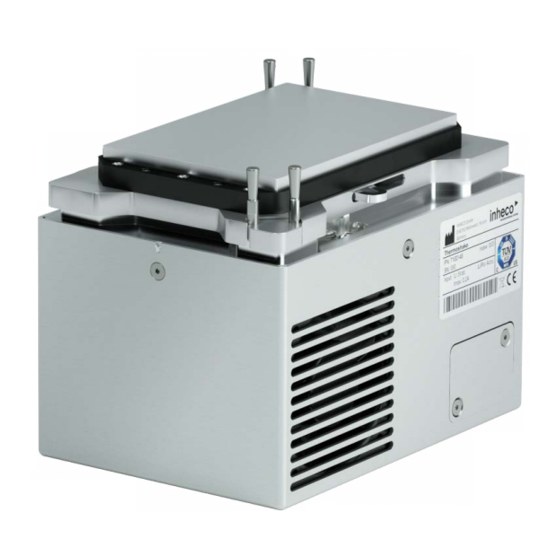

INHECO Thermoshake AC User And Installation Manual

Shaker with clamping
Hide thumbs Also See for Thermoshake AC:
Table of Contents

Advertisement

Quick Links

Download this manual
User and installation manual
Shaker with clamping
Thermoshake AC | Thermoshake AC 180
Part No.: 7000160 | 7000161
Teleshake AC | Teleshake 95 AC
Part No.: 7000150 | 7000151
Doc ID: 901325-000 December 2021
Tek-Matic 7316 N. Alpine Rd, Loves Park Il 61111
815.282.1775
www.tekmatic.com
insidesales@tekmatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermoshake AC and is the answer not in the manual?

Questions and answers

Related Manuals for INHECO Thermoshake AC

Summary of Contents for INHECO Thermoshake AC

  • Page 1 User and installation manual Shaker with clamping Thermoshake AC | Thermoshake AC 180 Part No.: 7000160 | 7000161 Teleshake AC | Teleshake 95 AC Part No.: 7000150 | 7000151 Doc ID: 901325-000 December 2021 Tek-Matic 7316 N. Alpine Rd, Loves Park Il 61111 815.282.1775...
  • Page 2 This manual and the information herein have been assembled with due diligence. INHECO GmbH does not assume liability for any misprints or cases of damage resulting from misprints in this manual. If there are any uncertainties, please feel free to contact sales@inheco.com.

  • Page 3: Table Of Contents

    General Information ..................04 Explanation of Symbols ................04 Abbreviations and Glossary ................ 05 Warranty ...................... 05 How to contact INHECO ................06 Product Description .................. 06 Intended Use ....................06 Scope of Supply ..................07 Functional Elements: ................... 09 Status LED and Firmware update ...............

  • Page 4: Important Notes

    - The signal word NOTICE stands for the general measures that help using the device. Contact INHECO in case there are any uncertainties of how to operate or how to handle the devices with auto clamping.

  • Page 5: Abbreviations And Glossary

    Broken seals on INHECO devices lead to the loss of warranty as well. INHECO will only accept parts / devices for return that do not pose a threat to the health of our staff. In particular, the devices may not have been used in Biosafety Level 3 and 4 environments or have been exposed to radioactive or radiation materials.

  • Page 6: How To Contact Inheco

    2.1. Intended Use While the Thermoshake AC is one of the most compact heated and cooled shaking positions for a wide range of standard ANSI/SLAS (formerly SBS) plates and tubes. The Teleshake AC is offering the shaking without temperature control and the Teleshake 95 AC heating and shaking control up to 125°C without cooling.

  • Page 7: Scope Of Supply

    In case of parcel or product damages, make photos of the damaged boxes and products and email them to techhotline@inheco.com immediately. Transportation damages must be reported to INHECO within 7 days of delivery. The following components should be included in each shipment: 2.2.1.
  • Page 8 The Sub-D-Connector Cable is already connected with the Teleshake (95) AC and it also needs to be connected to the Yellow Slot Module installed inside the TEC Control Unit (MTC or STC). → Initial Operation, page 16. INHECO Doc ID: 901325-000 December 2021 Tek-Matic 7316 N.

  • Page 9: Functional Elements

    2.3. Functional Elements: In the following images the Thermoshake AC (180) is shown, but the clamping mechanism of the Teleshake (95) AC is identical to this. If there are differences in other functional elements they are clearly pointed out. 2.3.1.
  • Page 10 Cold plate (temperature area) (only for Thermoshake AC and Teleshake 95 AC) Fig.6: Heated area of Thermoshake AC (Teleshake 95 AC is similar) WARNING Devices can burn your skin. Even after switching off the TEC Control Unit, the connected devices can still be hot and could seriously burn your skin as the material´s temperature can reach up to +125°C [+257°F]! It takes a while to cool down after the...

  • Page 11: Status Led And Firmware Update

    The ventilation is the big difference between Thermoshake AC and Thermoshake AC 180. With the standard device the fans airflow direction if from the outside to the inside sucking ambient room temperature into the device. The Thermoshake AC 180 has a turned fan which means the hot air is blown out.

  • Page 12: Labels

    If it has become illegible or falls off, it has to be replaced by a new identification label. New labels can be ordered at INHECO. In case the label is missing and you do not know the part number and serial number, they can also be read out with the software (MTC/STC Demo Tool) which can be downloaded from INHECO´s login...

  • Page 13: Technical Data (Preliminary)

    In case the shaking is not steady you will receive a warning "error 35 slot x (x = slot ID). This error can be igrnored if no other error or warning are set in the same time. It is not INHECO´s responsibility if there is any method failure due to this low RPM.

  • Page 14: Safety Instructions

    - Never connect or remove the power plug of the TEC Control Unit with wet hands. - Original power cable for the TEC Control Unit provided by INHECO has to be used to guarantee safe and proper operation.

  • Page 15: Technical Alterations

    Technical Alterations - Do not alter the product. Any modification or change which is not approved by INHECO leads to the loss of warranty. Broken seals on INHECO devices lead to the loss of warranty as well. - Use only original parts provided by INHECO. Parts provided by other suppliers can impair the functionality of the unit.

  • Page 16: Hardware Installation

    4.2.1. How to connect devices to the MTC / STC In order to connect an INHECO heating/cooling/shaking device, the TEC Control Unit has to be equipped with the corresponding Slot Module. There are blue, black, and red Slot Modules available. The following table shows the appropriate Slot Module for each heating/cooling/shaking device.

  • Page 17: Programming The Movement Pattern

    The holder at the four corners can be taken off in case the standard holder is not suitable for your set up. → chapter 4.5. Visit www.inheco.com to find the custom-fit adapter for your disposable and contact sales@inheco.com in case you need a custom-fit holder.

  • Page 18: Removal Of Fixation Pins

    Fig.15: Removal of Fixation Pins • use the open-end wrench to screw the new pins back in position. NOTICE In case the standard fixation pins don’t work with your plate please contact INHECO (sales@inheco.com) for customized fixation pins. INHECO Doc ID: 901325-000 December 2021 Tek-Matic 7316 N.

  • Page 19: Installation Of Adapter Plates (Inserts, Nests)

    The adapter may facilitate accurate positioning for easy robotic handling plate. Visit www.inheco.com to find the adapter which fits your tube, reservoir or plate. In case you do not find your disposable on the list of adapters, ask sales@inheco.com for a custom design.

  • Page 20: Mechanical Integration

    When the Thermoshake Shaking devices are placed on a bench top, they must be fixed to the ground with two M4 screws via the thread holes of the units. The ground must be firm and even. Drilling schematic for secure mounting of the Thermoshake AC (180): Fig.18: Drilling Scheme NOTE The Shaker always needs to be fixed to the ground for proper shaking performance.

  • Page 21: Software Installation

    The devices can be operated by touchscreen at the front panel of the MTC/STC, by the Demo Tool software delivered by INHECO or by the software of your liquid handling workstation. The INHECO Demo Tool software and the touchscreen allow programming basic temperature and shaking sequences.

  • Page 22: How To Get The Shaking Devices In Closed Position

    In this case contact INHECO to receive the permission to ship the device as it is. If a device is received opened without the permission of INHECO any damages will be invoiced to the customer (even when in warranty).

  • Page 23: How To Get The Shaking Devices In Opened Position

    6.3.3. Using the lever If sending the commands or the restart is not successful you can use the lever to open the clamp mechanism. INHECO Doc ID: 901325-000 December 2021 Tek-Matic 7316 N. Alpine Rd, Loves Park Il 61111 815.282.1775 www.tekmatic.com...

  • Page 24: Maintenance

    - INHECO product number of the device (shown on device label) - INHECO product name of the device (shown on device label) - INHECO serial number of the device (shown on device label or via software) - Detailed error description - Error code report (generated with software “MTC/STC Demo Tool”)
  • Page 25 STC as well as connected devices. • Click on the button “report error codes”. An additional window appears in which all error codes are displayed. Email a screenshot of this window along with all other required information to techhotline@inheco.com INHECO Doc ID: 901325-000 December 2021 Tek-Matic 7316 N.

  • Page 26: Maintenance - Refilling Of Cooling Liquid Reservoir

    The Thermoshake AC needs a well-defined minimum level of cooling liquid to work properly and to avoid damages to the system. To ensure that the Thermoshake AC does not run dry INHECO implemented a sensor to check the liquid level of the cooling liquid.
  • Page 27 In case the touch screen displays Error 7, the liquid reservoir of the selected Thermoshake AC is below minimum filling level and requires a refill of cooling fluid. In case the touch screen does not display Error 7 after selection of the Thermoshake AC and Slot, the filling level may not be at maximum level, but the level is sufficient.
  • Page 28 Maximum number of occurrences is 255. If this number is reached the error memory of the slot module has to be erased. • Make a screenshot of error code report. • Send screenshot to techhotline@inheco.com along with request for command to set back the error codes. INHECO...
  • Page 29 • Enter in the command field the command xRRS ( x = SlotID → table below). Command for STC Description 1RRS send this command to check the filling level of cooling liquid of a Thermoshake AC connected to a Single TEC Control unit. Commands for Description 1RRS...
  • Page 30 • Select button Refresh (in the upper left corner of user interface) • Uncheck refresh check box • Resend command. INHECO Doc ID: 901325-000 December 2021 Tek-Matic 7316 N. Alpine Rd, Loves Park Il 61111 815.282.1775 www.tekmatic.com insidesales@tekmatic.com...

  • Page 31: Cleaning

    Liquids must not enter into the unit. Do not use aggressive cleaning fluids such as acetone, or abrasive cleaners. Contact INHECO in case you prefer other cleaning liquids or methods as they might be be harmful for the material of the devices.

  • Page 32: Return For Repair Only With Rma Number

    INHECO for return. Ask techhotline@inheco.com or visit www.inheco.com/service/returns-rma.html for the return procedure before you return a device to INHECO. Do not return any devices without INHECO’s RMA number. INHECO’s RMA number must be shown on the outside of the return package. Returns without RMA number are not being processed by INHECO.

  • Page 33: Accessories

    Part Number Yellow Slot Module Teleshake (95) AC, Thermoshake AC (180) 2400211 8.3. Thermal Adapter for Temperature Transfer A list of adapters (inserts, nests) can be downloaded from INHECO´s webpage www.inheco.com or requested from sales@inheco.com. 8.4. Miscellaneous Product Name Description...

  • Page 34: Appendix

    International Standards For international standards please see UL certificate U8 046515 0033 Rev.00, U8 046515 0034 Rev.00 and U8 046515 0037 Rev. 01 Download UL certificat: http://www.inheco.com/service/certificates.html Manufacturer address: INHECO Industrial Heating and Cooling GmbH Fraunhoferstr. 11 82152 Martinsried Germany...
