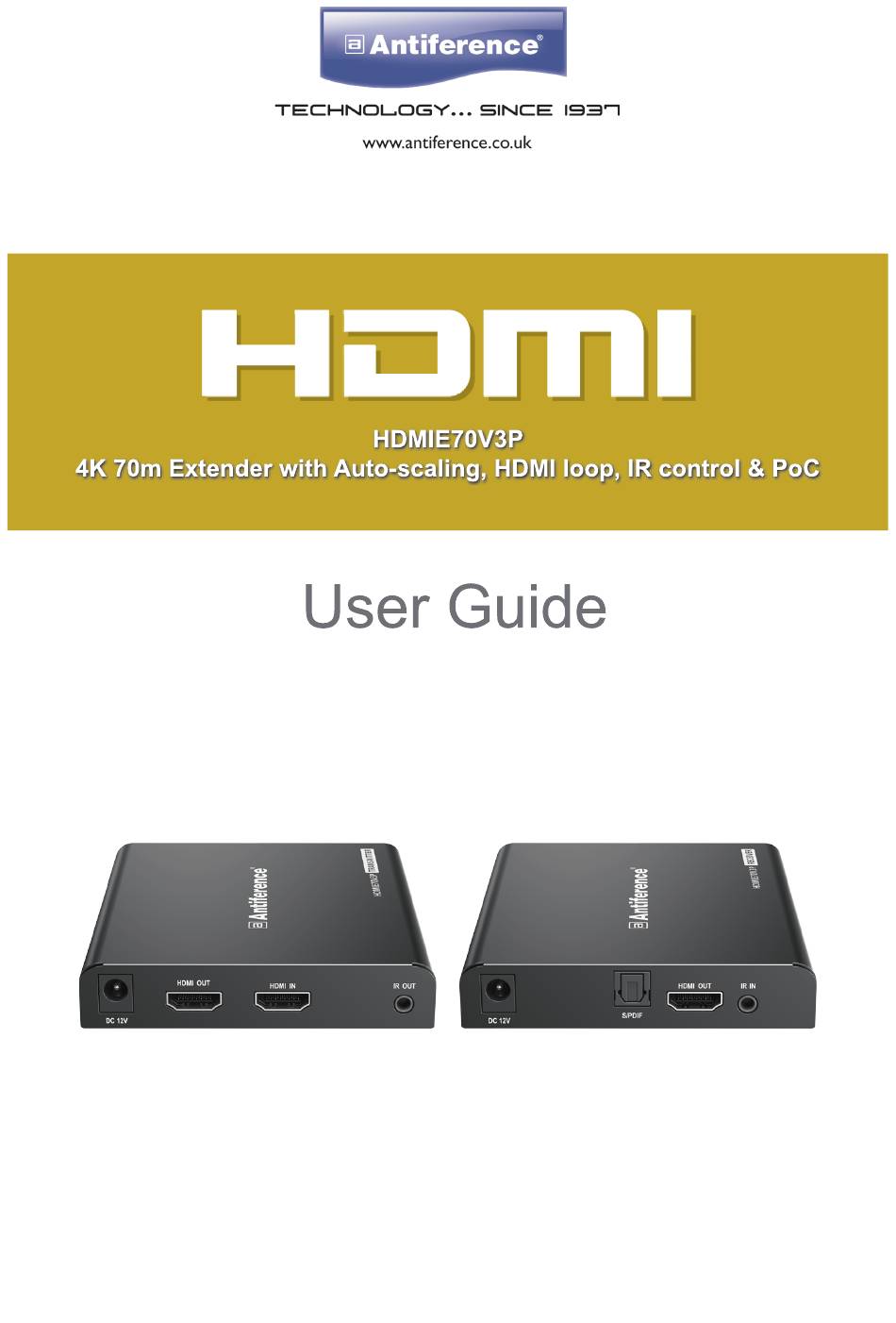

ANTIFERENCE HDMIE70V3P User Manual

4k 70m extender with auto-scaling, hdmi loop, ir control & poc

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDMIE70V3P and is the answer not in the manual?

Questions and answers

Summary of Contents for ANTIFERENCE HDMIE70V3P

  • Page 2 Auto-scaling to allow use of 1080p display & 4K source Supports full HD 1080p@60Hz, UHD@60Hz & 4K@25Hz with HDCP2.2 Extend HD/UHD signal over CAT6 up to 70 meters Audio extractor via S/PDIF on receiver HDMI loop out on transmitter HDR supported with 4:4:4 colour space One-way IR control system PoC system Supports audio formats: LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1/...
  • Page 3 Transmitter unit x1pc Receiver unit x1pc User manual x1pc DC12V/1A x1pc IR blaster extension IR Receiver extension cable x1pc cable x4pcs Mounting brackets Screw x18pcs x8pcs...
  • Page 4 ① ② ③ ④ ⑤ ⑥ ⑦ ① Reset button Press to restart the device ② Connect with network cable RJ45 signal output ③ When there is power and no HDMI signal, the indicator will flash, Power/Signal indicator when there is HDMI signal, the indicator will light solid blue ④...
  • Page 5 HDMI Display Speaker HDM I OUT Network c able Video Source HDMI Display DC12V...
  • Page 7 Items Specification Voltage/Current DC12V/1A Transmission protocol Power consumption TX<4W RX<4W HDMI compliance HDMI2.0 HDCP compliance HDCP 2.2 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, HDMI resolution 4096x2160@24/25Hz, 1280x960, HDMI 1280x800, 1280x768, 1680x1050, Performance 1360x768, 1366x768, 1600x900, And Interface 1024x768, 800x600 Supports audio formats LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1/ Dolby Digital 5.1...
