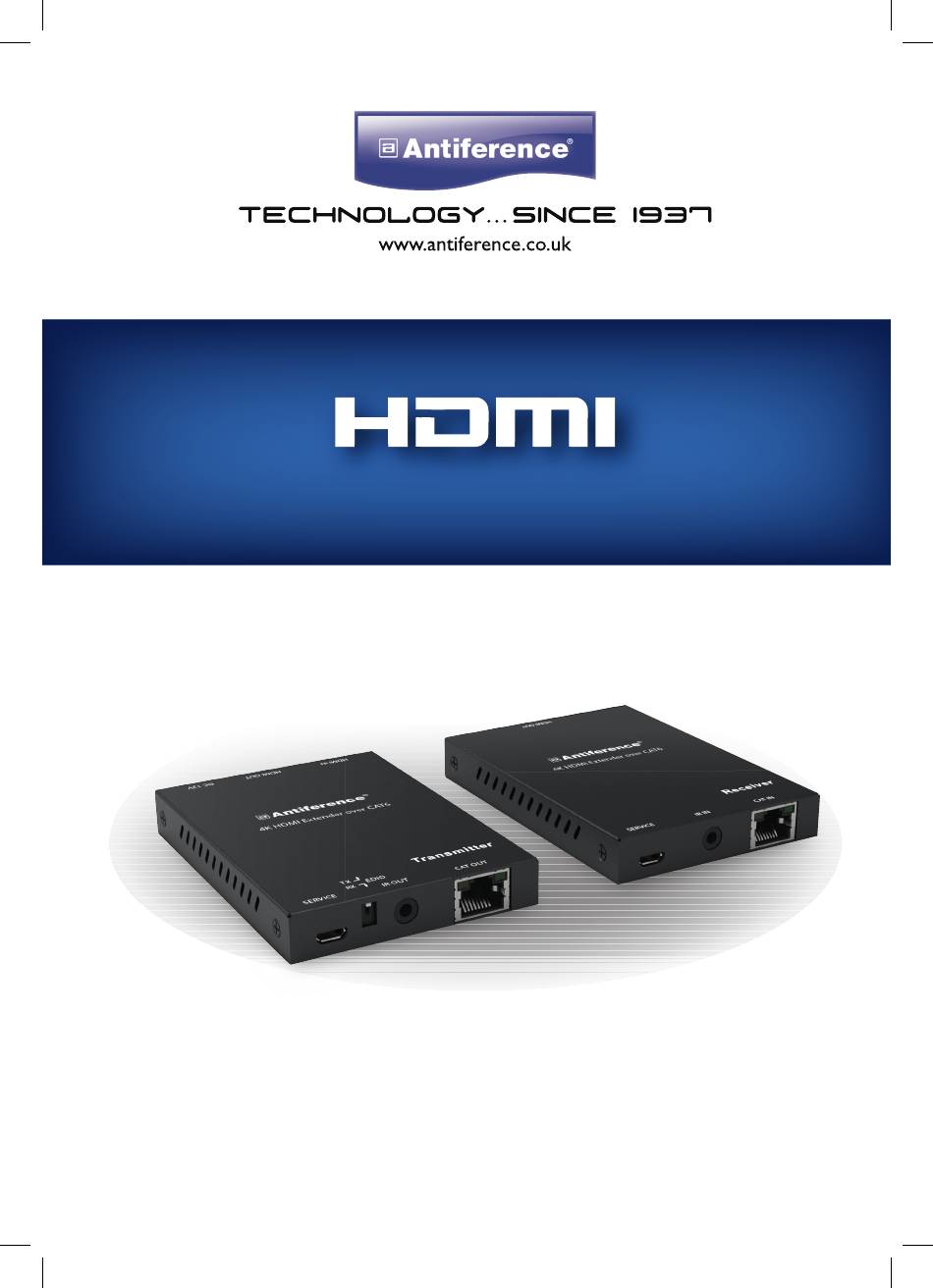

- Page 1 H D M I E 5 0 V 2 4 K H D M I E x t e n d e r u p t o 5 0 m w i t h P o C , H D M I L o o p & I R C o n t r o l...
-
Page 2: Table Of Contents
7. Declaration of Conformity 1. Introduction This Antiference HDMI Extender set sends full 4K (2160p) or HD (1080p) over a single CAT 6 cable to a remote location up to 50m. The kit contains a transmitter (TX) and receiver (RX) unit and features an IR control system to enable to user to control the 4K/HD source from the remote location. -
Page 3: Features
2. Features HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant Supports HDCP2.2 for 4k signals Supports 18Gbps bandwidth Supports video resolutions up to 4k2k@60Hz RGB/Ycbcr 4:4:4/Ycbcr 4:2:2, colour sampling HDMI loop output IR Control HDR Supported EDID management Compact design for easy and flexible installation. Compatible with a range of sources such as SKY Q/HD, Blu Ray Player, CCTV etc. -
Page 4: Receiver Panel
IR OUT Connect IR transmitter cable. CAT OUT Connect to CAT IN port with a CAT6 cable. Power Indicator LED The LED will light when the transmitter power is on. Signal LED The LED will light when signal is being transmitted. HDMI IN Connect to HDMI source device such as SKY Q/HD, BDor CCTV with an HDMI cable. -
Page 5: Application Example
4.3 IR Sensors IR Receiver IR Transmitter - Blaster 5. Application Example EDID SERVICE IR OUT CAT OUT HDMI IN HDMI OUT DC 12V Transmitter Power Supply IR Blaster DVD or Blu-ray Player UHDTV SERVICE IR IN CAT IN HDMI OUT Receiver IR Extender UHDTV... -
Page 6: Specifications
6. Technical Specifications TECHNICAL HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master, Audio, DSD ESD Protection Human body model—±8kV (Air-gap discharge) &... -
Page 7: Declaration Of Conformity
7. Declaration of Conformity We, ANTIFERENCE LIMITED herewith declare that the HDMI Extender Kit complies with all essential requirements and any other applicable conditions set forth on directive 2014/30/EU. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste. - Page 8 USER GUIDE: PAPER WIDELY RECYCLED...
