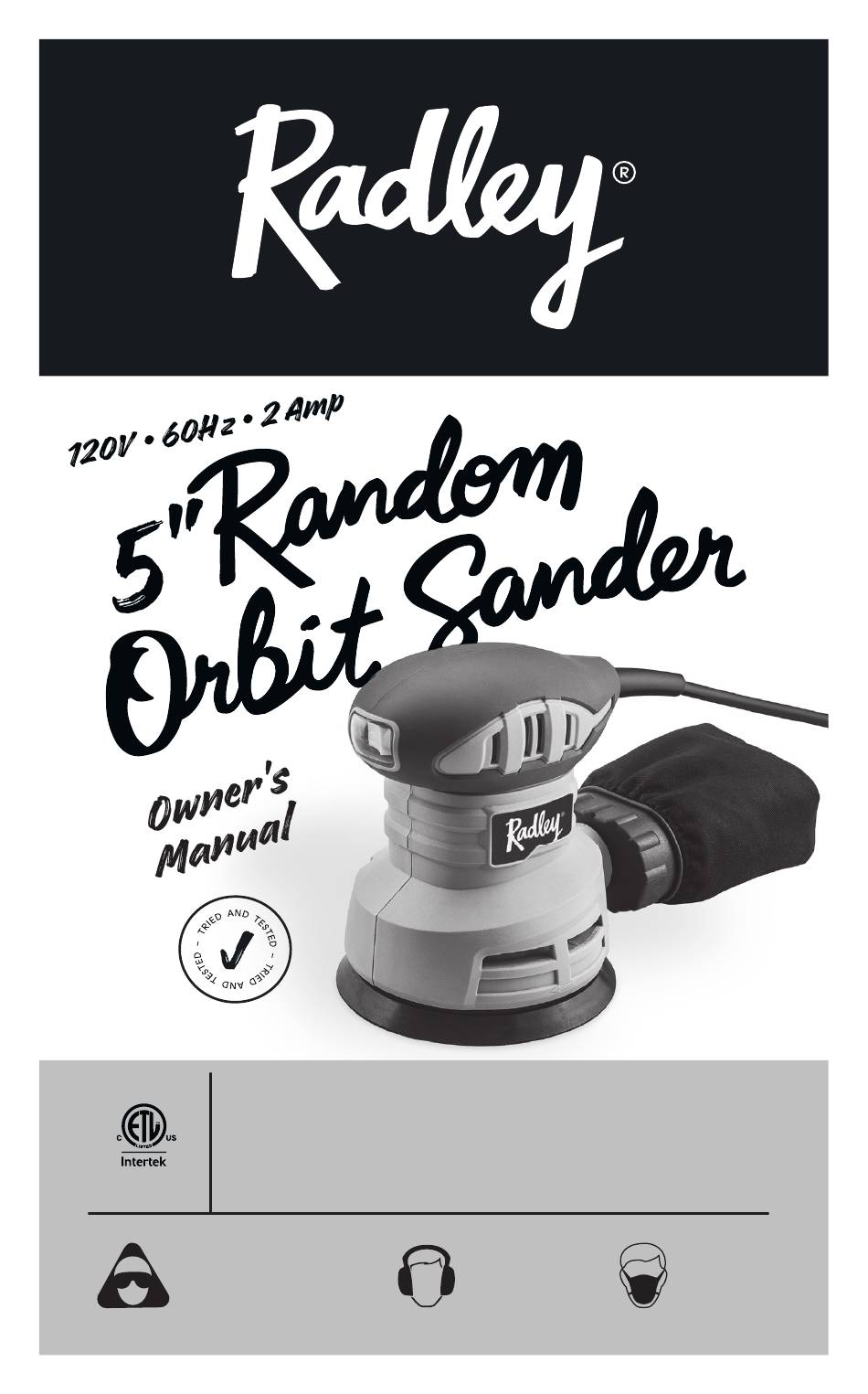

- Page 1 1262-171 LISTED READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. 3042597 JD2522U WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
-
Page 2: Product Specifications
5" R n o r i s n e - O n r's M n a PRODUCT SPECIFICATIONS Rating: 120V, 60Hz, AC Amperes: 2.0 AMP No load speed: 12,000 OPM Disc diameter: 5" Weight: 3 lb. 6 oz (1.53 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am –... -
Page 3: Table Of Contents
1262-171 TABLE OF CONTENTS Product specifi cations ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ………….……………………………………………………………3 Eye, ear & lung protection ………….……………………………………………………………3 Electrical safety ………….…………………………………………………………….4 Power tool safety ………….……………………………………………………………4 Work area safety ………….……………………………………………………………4 Electrical safety ………….……………………………………………………………5 Personal safety ………….……………………………………………………………5-6 Power tool use and care ………………….…………………………………………………….6 Service ………….……………………………………………………………6... -
Page 4: General Safety Warnings
5" Random orbit sander - Owner's Manual GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. -
Page 5: Electrical Safety
1262-171 ELECTRICAL SAFETY WARNING: To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This tool is wired at the factory for 120 V AC operation. It must be connected a 120 V AC, 15 A circuit that is protected by a time-delayed fuse or circuit breaker. -
Page 6: Electrical Safety
5" Random orbit sander - Owner's Manual ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. -
Page 7: Power Tool Use And Care
1262-171 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. -
Page 8: Specific Safety Rules
5" Random orbit sander - Owner's Manual SPECIFIC SAFETY RULES WARNING: Know your orbit sander. Do not plug the tool into the power source until you have read and understand this Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards related to this tool. - Page 9 1262-171 GUIDELINES FOR EXENSION CORDS WARNING: Keep the extension cord clear of the working area. Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool. Make sure any extension cord used with this tool is in good condition.
-
Page 10: Symbols

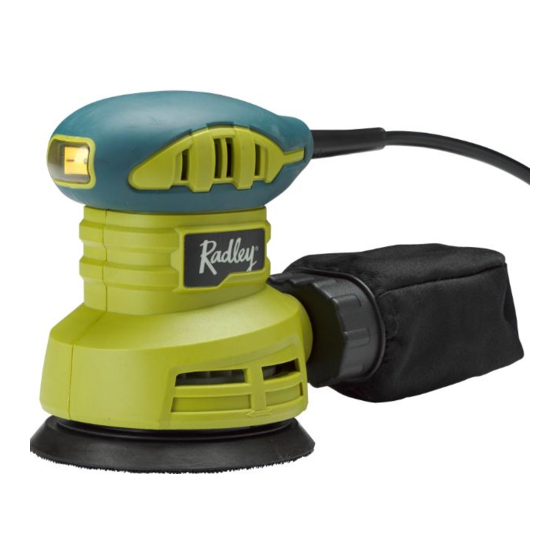

5" Random orbit sander - Owner's Manual SYMBOLS WARNING: Some of the following symbols may appear on the sander. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. - Page 11 1262-171 KNOW YOUR RANDOM ORBIT SANDER Motor vents Palm Grip ON/OFF switch Dust Bag Assembly 8 Hole-Hook Hook & loop and Loop Motor vents fastening system sanding base 3 x Hook & loop sandpapers...
-
Page 12: Assembly And Operating
5" Random orbit sander - Owner's Manual ASSEMBLY AND OPERATING NOTE: The drawings in the assembly and operating section of this manual may differ slightly from the tool you purchased. INSTALLING A SANDING DISC To install a sanding disc, firmly press the sanding disc (1) onto the hook &... -
Page 13: Cleaning The Dust Bag
1262-171 ASSEMBLY AND OPERATING CLEANING THE DUST BAG Remove the dust bag assembly (1) from the dust port by rotating it COUNTERCLOCKWISE approximately 15° and pulling it out of the dust port (Fig. 5). Carefully shake the dust bag assembly with the end cap opening (2) pointing Fig.5 downward to remove the sanding dust. -
Page 14: Sanding
5" Random orbit sander - Owner's Manual ASSEMBLY AND OPERATING SANDING Clamp or otherwise secure your workpiece to prevent it from moving under the sander while being sanded. Secure the workpiece in a vice if possible. WARNING: Any unsecured workpiece could be thrown toward the operator causing injury. -
Page 15: Maintenance
1262-171 MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease etc. -
Page 16: Exploded View
5" Random orbit sander - Owner's Manual EXPLODED VIEW NOTE: The drawings in the exploded view section of this manual may differ slightly from the tool you purchased... - Page 17 1262-171 PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the sander. Any attempt to repair or replace electrical parts on this sander may create a safety hazard unless repairs are performed by a qualified technician.
-
Page 18: Warranty
WARRANTY RADLEY RANDOM ORBIT SANDER WARRANTY If this Radley Tool fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. - Page 19 EXCLUSIVE TO HOME HARDWARE For information on the entire line-up of Radley power tools visit homehardware.ca or your local Home Hardware retail store. MADE IN CHINA / FABRIQUÉ EN CHINE HOME HARDWARE STORES LIMITED ST. JACOBS, ONTARIO N0B 2N0 ORDER ONLINE / COMMANDE EN LIGNE 1262-171 ©...
