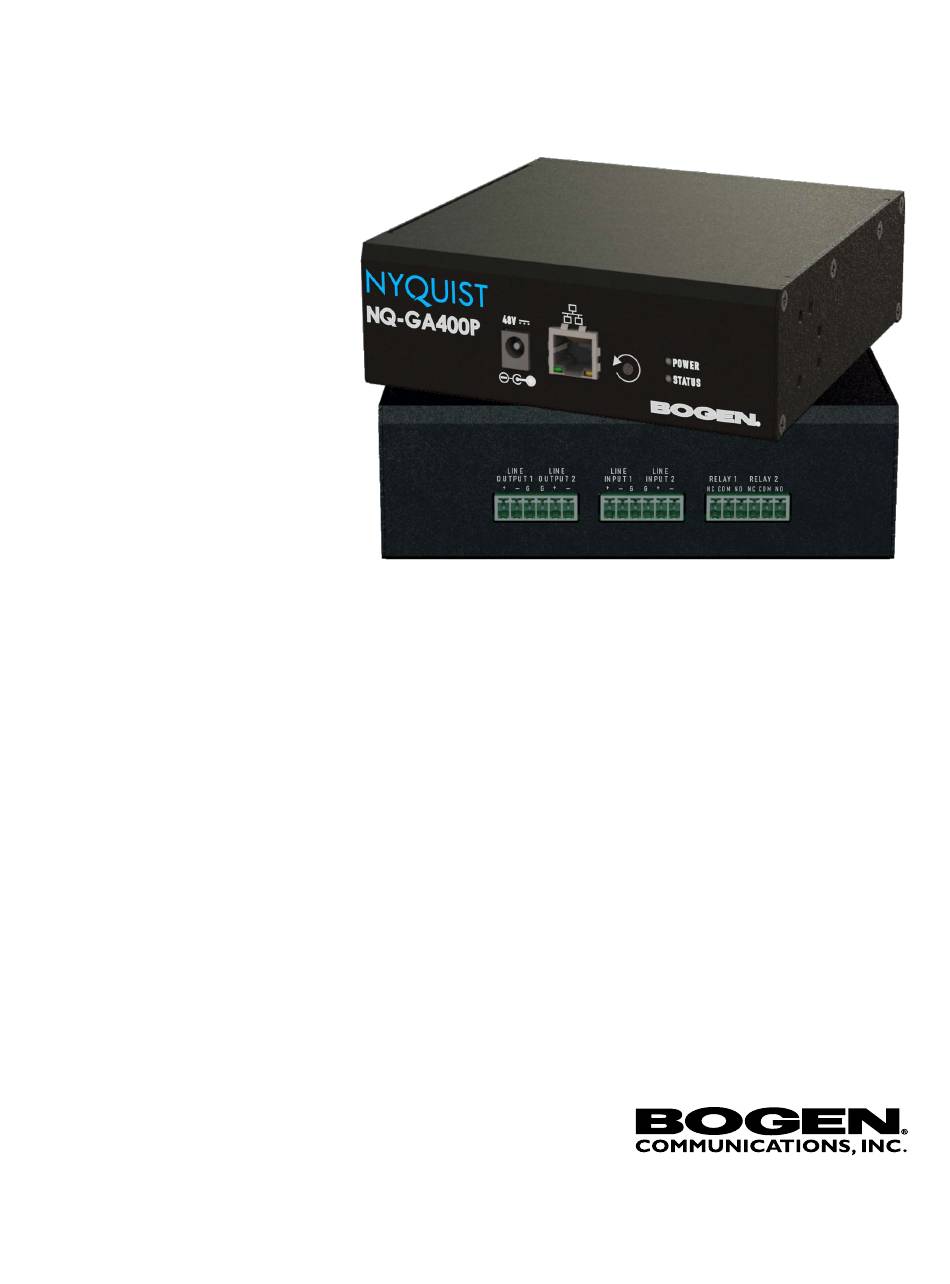

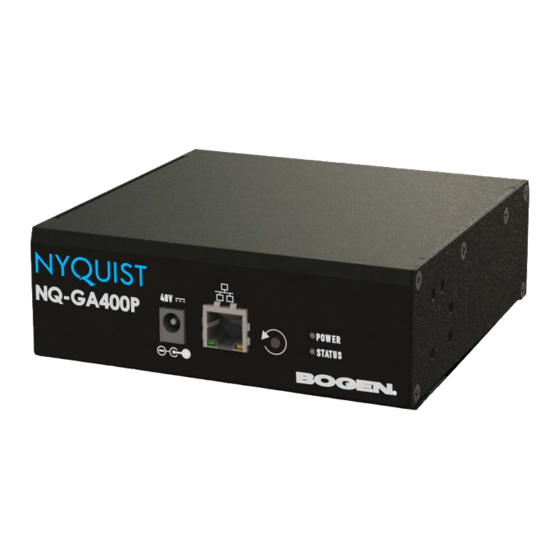

AoIP Gateway Configuration Guide
NQ-GA400P
© 2021 Bogen Communications, Inc.
All rights reserved.
740-00163A
211115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NQ-GA400P and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen NQ-GA400P

Summary of Contents for Bogen NQ-GA400P

  • Page 1 AoIP Gateway Configuration Guide NQ-GA400P © 2021 Bogen Communications, Inc. All rights reserved. 740-00163A 211115...

  • Page 2: Table Of Contents

    Contents Configuring the Nyquist AoIP Gateway ........1 Using the Dashboard .

  • Page 3: Configuring The Nyquist Aoip Gateway

    Configuring the Nyquist AoIP Gateway The Nyquist GA400P AoIP (Audio over IP) Gateway provides the ability to receive an analog signal, convert it to a digital signal, and send it to a partner device across a net- work. It can also receive a digital signal over a network, convert it to an analog signal, and play it back through a speaker.

  • Page 4: Using The Dashboard

    Figure 1. Nyquist Appliance Login At the Nyquist Appliance Login page, enter username and password, and then select Login. The default username is admin; the default password is bogen. The dashboard for the selected appliance appears. Figure 2. NQ-GA400P Dashboard...
  • Page 5 Table 1. Appliance Dashboard Fields Device Type Identifies the model of this device. Serial Number Identifies the serial number for the device. MAC Address Specifies the Media Access Control (MAC) address, which is a unique identifier assigned to network inter- faces for communications on the physical network seg- ment.

  • Page 6: Standalone Operation

    Standalone Operation mode is ideal for scenarios that do not require the full functionality provided by an integrated system, such as the Bogen C4000 or E7000 Series, but has the ability to provide paging, multi-channel audio processing, and a SIP endpoint for a PBX/ VoIP phone system.
  • Page 7 Check for Updates button checks the Bogen website for the latest firmware version available. If a version newer than the one currently installed is found, it is downloaded to the appliance. If you already have a firmware file you would like to install to the appliance, select Upload Firmware to upload the firmware file from your computer to the appliance.

  • Page 8: Network Settings Tab Parameters

    Check for Updates Available only when the appliance is configured for Standalone mode. Checks the Bogen website for the latest firmware version available and, if it finds a version newer than what is currently installed, downloads it to the appliance.
  • Page 9 Select your desired network settings. Select Save. Figure 4. Network Settings Network settings are described in the following table: Table 4. Network Settings IP Address Identifies the IP address assigned to the appliance. Netmask Identifies the subnetwork subdivision of an IP net- work.
  • Page 10 Table 4. Network Settings (Continued) NTP Server Identifies the IP address or the domain name of the Network Time Protocol (NTP) Server. Note: This field is only editable when Standalone Operation is enabled. TFTP Server Identifies the host name or IP address of the Trivial File Transfer Protocol (TFTP) server.

  • Page 11: Configuration Settings Tab Parameters

    Table 4. Network Settings (Continued) DHCP Enabled Indicates if the device is enabled to use DHCP to retrieve its IP configuration. Reboot Appliance Indicates that this appliance should reboot when the Save button is clicked. Configuration Settings Tab Parameters The easiest way to configure Nyquist appliances is to obtain configuration settings from the Nyquist server by selecting Get Configuration From Server.
  • Page 12 Figure 5. Appliance Configuration Settings (Standalone disabled) The following table describes the Configuration Settings tab settings when Standalone Operation is not enabled for this device: Table 5. Configuration Settings (Standalone disabled) Get Configuration from Retrieves configuration settings (i.e., web username, server, and local port) from the TFTP server specified in Server the Network Settings (see "Network Settings Tab...

  • Page 13: Standalone Operation Configuration Settings

    Configuration Settings tab also displays the following information for each Device Station attached to the device: Port Number Shows the output port/channel number of the appli- ance. Port Type Shows the device type to which the port connects. Account ID Shows the SIP account (IP address) associated with the device preceded by the extension of the device associ- ated with this port.
  • Page 14 Figure 6. Appliance Configuration Settings (Standalone enabled) The following table describes the Configuration Settings tab settings when Standalone Operation is enabled for this device: Table 6. Configuration Settings (Standalone enabled) Device Type Displays the type of this device. Device Name Provides a name for this device.
  • Page 15 Table 6. Configuration Settings (Standalone enabled) Web Password Specifies a web password for logging into the appli- ance. Web Confirm Password Re-enter the password used to log into the appliance. Time Zone Specifies the time zone in which the device resides. External Relay Trigger 1/2 Enables this device to apply a trigger signal to the external relay output to notify an external device that...
  • Page 16 a. Available only when Enable SIP Calls has a value of Yes. The following parameters appear for the two Multicast Addresses (Audio Cast) (i.e., outgoing streams) and for each of the Multicast Addresses (i.e., incoming streams) con- figured for this device. Enabled Enables audio signals from the Line Input ports to be sent to the specified multicast addresses and ports.

  • Page 17: Accessing Log Files

    Channels Channel(s) on which the audio streams will be input or output. One or more of the following values: • Line 1 • Line 2 Tip: If multiple output channels are selected, they will all use the same cut level. Fine tuning of cut levels per output channel can be adjusted using DSP settings.
  • Page 18 From the drop-down menu, select the log that you want to view. Multiple versions of the same log, and zipped copies of the log, may be available. To export the file, select Export. A link to a .txt file appears in the browser’s lower left corner. Figure 7.

  • Page 19: Setting Dsp Parameters

    Table 7. Logs (Continued) Description debug Contains errors and debug information. dpkg.log Contains information that is logged when a package is installed or removed using dpkg command. faillog Contains user failed login attempts. kern.log Contains information logged by the kernel and recent login information for all users.
  • Page 20 Figure 8. DSP Page Note: The terms analog input and analog output will be used to refer to the electrical signals on the physical analog ports (e.g., from a microphone and to an amplifier) while network send and network receive will refer to the digital streams that are sent and received over the network.
  • Page 21 Each strip controls the audio signal for a given channel, providing muting, gain adjust- ments, signal processing, and more. Signal processing includes traditional audio process- ing, such as hi/low-pass filters (output), limiters (input), and parametric EQs (output). This console can be used to do the following: •...

  • Page 22: Setting The Channel Level

    Table 8. DSP Page OUT VU meter Indicates the strength of the network send signal. Input Gain Adjusts the strength of the analog input signal. The DSP features that can be applied to a channel, accessible through the DSP Features menu, are described in the following table.

  • Page 23: Knob Adjustments

    Tip: For best results, use the vertical slider to adjust the input level until you have a strong signal (i.e., within the green and yellow areas on the meter), then adjust the final output levels using the DSP Outputs controls. To adjust the channel volume level: On the appliance Web UI’s main page, select DSP.

  • Page 24: Adjusting Input Gain

    Mute button will illuminate red. You can click the Mute button again to unmute the channel. • Adjusting Input Gain Because input signal levels can vary greatly based on the attached device, you will want to adjust the Input Gain for a channel to ensure the input signal level is high enough to use, but not so high that it sounds distorted.

  • Page 25: High/Low Pass

    If Channel Volume Is Too High If a channel is not clipping but the channel slider level control must be set below the −20 dB position to achieve the proper volume level, the Input Gain control setting is too high. Set the channel slider control knob to the 0 dB position and adjust the Input Gain control until the desired volume level is achieved.
  • Page 26 To adjust the high/low pass parameters for a channel: On the appliance Web UI’s main page, select DSP. Select the Menu button for the channel. From the drop-down menu, select High/Low Pass. Note: If you want to return to the factory settings, select the Reset icon that appears in the right corner.

  • Page 27: Limiter

    Table 10. High/Low Pass Parameters (Continued) Low-Pass (High Cut) This feature helps eliminate high-frequency noise (signals of 8000 Hz and above) such as background hiss and sibilance (excessive "S" in vocals, etc.) and is used primarily with microphone-level input. It is particularly effective when handheld microphones are used.
  • Page 28 Figure 10. Limiter Settings To adjust the limiter settings for a channel: On the appliance Web UI’s main page, select DSP. Select the Menu button for the channel or select the Menu button for the Output. From the drop-down menu, select Limiter. Note: If you want to return to the factory settings, select the Reset icon that appears in...

  • Page 29: Parametric Eq

    Table 11. Limiter Settings Threshold Sets the signal level at which the limiter is triggered. Any signal exceeding this threshold will be compressed to this level. The range is -24 to +24 dB. Decay Sets the rate for turn off of the limiter after the signal is below the threshold.

  • Page 30: Settings

    The parametric equalizer settings for your device allows you to adjust the Q and gain for five separate frequencies, which then become plot points on the screen’s graph. To adjust the parametric equalizer settings for a channel: On the appliance Web UI’s main page, select DSP. Select the Menu button for the channel.

  • Page 31: Signal Present

    Figure 12. Settings Parameters To adjust the settings for a channel: On the appliance Web UI’s main page, select DSP. Select the Menu button for the channel. From the drop-down menu, select Settings. Note: If you want to return to the factory settings, select the Reset icon that appears in the right corner.
  • Page 32 Figure 13. Signal Present Parameters To adjust the Signal Present settings for a channel: On the appliance Web UI’s main page, select DSP. Select the Menu button for the channel. From the drop-down menu, select Signal Present. Note: If you want to return to the factory settings, select the Reset icon that appears in the right corner.
  • Page 33 Table 12. Signal Present Parameters Threshold Sets the minimum level the signal must reach before the signal LED is illuminated. Threshold range is -144 to +24 dB. Hold Sets the minimum number of milliseconds that the signal LED will remain illuminated. Hold range is 2 to 200 milliseconds.
