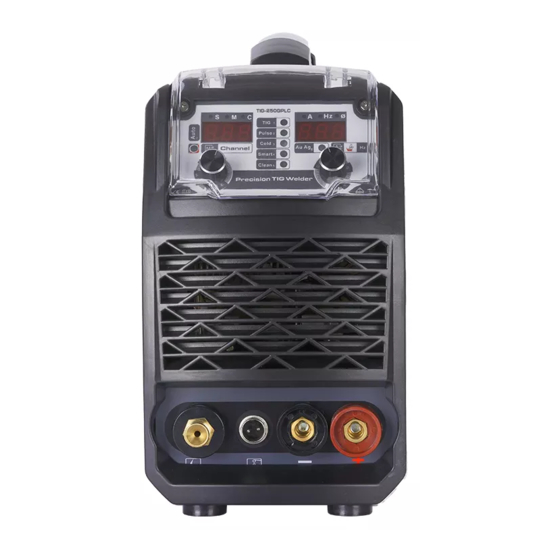

ANDELI TIG-250GPLC User Manual

ANDELI TIG-250GPLC User Manual

Intelligent precisionmultifunction argon arc welding machine

Advertisement

Quick Links

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIG-250GPLC and is the answer not in the manual?

Questions and answers

Gonzo
May 13, 2025

Accidentally switched leads now machine does not come on. Is there a circuit reset, of fuse??

Subscribe to Our Youtube Channel

Summary of Contents for ANDELI TIG-250GPLC

  • Page 2 TIG-250GPLC 智能精密多功能氩焊机 TIG-250GPLC Intelligent Precision Multifunction Argon Arc Welding Machine 用户手册 User Manual (在操作前,请仔细阅读) (Please read carefully before use)
  • Page 3 ANDELI 安德利 TIG-250GPLC 目录 Contents 1 :安全操作注意事项 2 :产品概述 3 :主要技术参数,电气原理框 4 :面板控制操作 5 :安装调式与操作 1 :Matters needing attention for safety operation 2 :Product overview 3 :Main technical parameters, electrical principle block diagram 4 :Panel control and operation 5 :Installation, debugging and operation...
  • Page 4 安 德 利 集 团 有 限 公 司 郑 重 声 明 : 本 产 品 系 按 中 国 及 国 际 有 关 标 准 制 造 , 产 品 符 合 GB- 15579.1(2013)标准。本公司对 ANDELI 牌逆变焊机系列之所有产品,自购买之日起保修一年。 ANDELI GROUP CO. LTD. solemnly and sincerely declares that: this product is manufactured in accordance with relevant Chinese and international standards and conforms to standard GB-15579.1 (2013).
  • Page 5 ANDELI 安德利 TIG-250GPLC :安全事项 1: Safety matters 在焊接过程中,可能会给你或他人造成伤害,在焊接时请做好安全保护。详细情况请参考 符合生产商的事故预防要求的操作人员安全防护指南。 In the process of welding, you or others might be hurt, please take safety protection measures when welding. For detail information, please refer to operating personnel safety protection guide which meets accident prevention requirements of manufacturer.
  • Page 6 ANDELI 安德利 TIG-250GPLC Improper use and operation might lead to fire or explosion 焊接火花可能导致失火,请确认焊接工位附件无易燃物,并注意安全防火。 Welding spark may lead to fire, please be sure that there is no inflammable nearby welding post and pay attention to fire safety. 保证有灭火装置在附件,并且有训人员能熟练使用灭火器。 Be sure that fire extinguishing apparatus is available nearby and trained personnel can operate fire extinguisher skillfully.
  • Page 7 If you still can’t fully understand after reading the User Manual or still can’t solve the problem in accordance with the User Manual, you should contact with your supplier or service center of ANDELI Company immediately to seek professional help. 2:产品概述...
  • Page 8 ANDELI 安德利 TIG-250GPLC Continuous low temperature pulse welding technology overcomes difficulty in  continuous pull welding of thin plate.  单点冷焊技术可完美的解决薄板点焊难度。 Single spot cold welding technology can perfectly overcome difficulty in spot welding  of thin plate.  美观的造型和结构设计 Beautiful modeling and structure design ...
  • Page 9 ANDELI 安德利 TIG-250GPLC 主要技术参数 Main technical parameters 额定输入电压 AC110V 60HZ Rated input voltage 额定输入功率 5.5KVA Rated input power 额定输入电流 25 A Rated input current 焊接电流调节范围 5-200A Regulating range of welding current 空载电压 56 V No-load voltage 脉冲连续点焊频率 1-30HZ Pulse continuous spot welding frequency 脉冲时间调节范围...
  • Page 10 ANDELI 安德利 TIG-250GPLC Electrical principle block diagram Power switch 电源开关 Driver module 驱动模块 Power supply 电源 Feedback 反馈 Control circuit 控制电路...
  • Page 11 ANDELI 安德利 TIG-250GPLC 面板操作与控制说明 Panel operation and control description Argon arc welding 氩弧焊 Pulse spot welding 脉冲点焊 Single spot cold welding 单点冷焊 Time display 时间显示 Time adjustment 时间调节 Welding gun 焊枪 Front panel 前面板 Welding gun switch 焊枪开关 Current display 电流显示...
  • Page 12 ANDELI 安德利 TIG-250GPLC 本机设有三种焊接模式,各种模式下参数显示含义及控制方法如下图。 This machine is equipped with three welding modes, parameter display meaning and control method in each mode are as shown in figure below. Gas delay time display 气体延时时间显示 Delay time adjustment 延时时间调节 Welding current display 焊接电流显示...
  • Page 13 ANDELI 安德利 TIG-250GPLC Welding current adjustment 焊接电流调节 Single spot cold welding mode 单点冷焊模式...
  • Page 14 ANDELI 安德利 TIG-250GPLC 安装调式及操作 Installation, debugging and operation 注意:请严格按照以下步骤进行安装与调式! Notes: Please carry out installation and debugging in strict accordance with following steps! 电器连接必须在关闭配电箱电源开关后进行! Electric connection must be carried out after turning off power switch of distribution box! 本设备防护等级为 IP21,应避免在雨中使用! Protection grade of the equipment is IP21, and it is necessary to avoid using in the rain! 安装方法...
  • Page 15 ANDELI 安德利 TIG-250GPLC Installation diagram 安装示意图 Distribution box 配电箱 Argon gas bottle 氩气瓶 Ground connection 接地 Argon welding gun 氩焊枪 Workpiece 工件...
  • Page 16 ANDELI 安德利 TIG-250GPLC 1:请按照安装示意图正确的连接好焊枪,控制线及地线。所有接头务必连接紧固以防接 触不良造成焊机连接端子损坏。 1: Please connect welding gun, control line and ground wire correctly in accordance with installation diagram. All connectors must be connected and fastened so as to prevent damage of terminal block of welding machine due to poor contact.
  • Page 17 Please refer to panel operation and control description for conversion method. 5:如果你参照本手册说明后仍无法理解,请你务必联系安德利集团客服中心进行求助。 5: If you still can’t fully understand after reading the manual, be sure to contact with customer service center of ANDELI Group to seek professional help.
  • Page 18 ANDELI 安德利 TIG-250GPLC 单点冷焊操作方法: Operation method of single spot cold welding: 在操作单点冷焊之前请你务必认真阅读并理解以下内容! Please be sure to carefully read and understand following contents before operating single spot cold welding! 钨极研磨示意图 Tungsten electrode grinding schematic diagram Slab splicing, corner angle and plane spot welding 平板拼接,凌角及平面点焊...
  • Page 19 ANDELI 安德利 TIG-250GPLC 2: Tungsten needle stretches out of porcelain mouth about 5-8 millimeters, angle formed between tungsten needle and welded plane presents 70-90 degrees, the best distance between tip of tungsten needle and workpiece shall be 0.3-0.4 millimeter (Notes: tungsten needle can’t directly contact with workpiece, excessive long distance between tungsten...
  • Page 20 ANDELI 安德利 TIG-250GPLC (注意,在焊接过程焊枪一直要保持在焊点上面停留,以保证有充足的氩气保护焊点。必须等 点焊完成后焊枪开关或脚踏开关才可以松开),按照示意图中的箭头方向移动焊枪(焊枪移动 的距离大概为焊点直径的 1/2 后再次按下焊枪开关或脚踏开关继续下一个焊点。一直重复以上 的操作,以一个焊点压一个焊点的方法进行点焊,直到点焊结束为止。注:初学者在焊接过程 中会经常出现钨针与工件之间经常粘住属于正常现象,熟悉点焊手法后,控制好钨针与工件的 距离即可避免或减少此现象。 (Notes: in the process of welding, welding gun should always stay on welding spot so as to ensure there is sufficient argon gas to protect welding spot. Welding gun switch...
  • Page 21 ANDELI 安德利 TIG-250GPLC 注:以下例举数据仅供参考,实际应用应根据工件和用户要求自行设置! Notes: data listed as below are only for reference, actual application shall be set separately in accordance with requirement of workpiece and user! 普通板材拼接点焊: Ordinary plate splicing spot welding: 厚度 0.3 毫米 焊接电流 80-90 点焊时间 10-40 Thickness 0.3 millimeter...
  • Page 22 ANDELI 安德利 TIG-250GPLC Causes for oxidization of tungsten needle are as follows: 1:氩气质量差。 1: Poor argon gas quality. 2:钨极质量差,含杂质多。 2. Tungsten electrode is poor in quality and contains many impurities. 3:焊接电流过大。 3: Excessive welding current. 4:点焊时钨针和工件的距离过大,等各种因素。 4: Distance between tungsten needle and workpiece is too long when carrying out spot welding, and various factors.
  • Page 23 ANDELI 安德利 TIG-250GPLC 3:把焊机转换到氩弧模式下,电流设置到 160 左右,把钨针和地线直接接触形成短路,按住 枪开关不放保持 2 到 3 秒钟左右,此时钨针产生高温可有效的把氧化层烧掉。此方法处理后钨 针应呈黑色,再次转换到冷焊模式下进行点焊即可。 3: Switch welding machine to argon arc mode, current is set at about 160, make tungsten needle directly contact with welding spot to generate short circuit, press and hold onto gun switch for 2 to 3 seconds, then high temperature generated by tungsten needle can burn away oxidation layer effectively.
