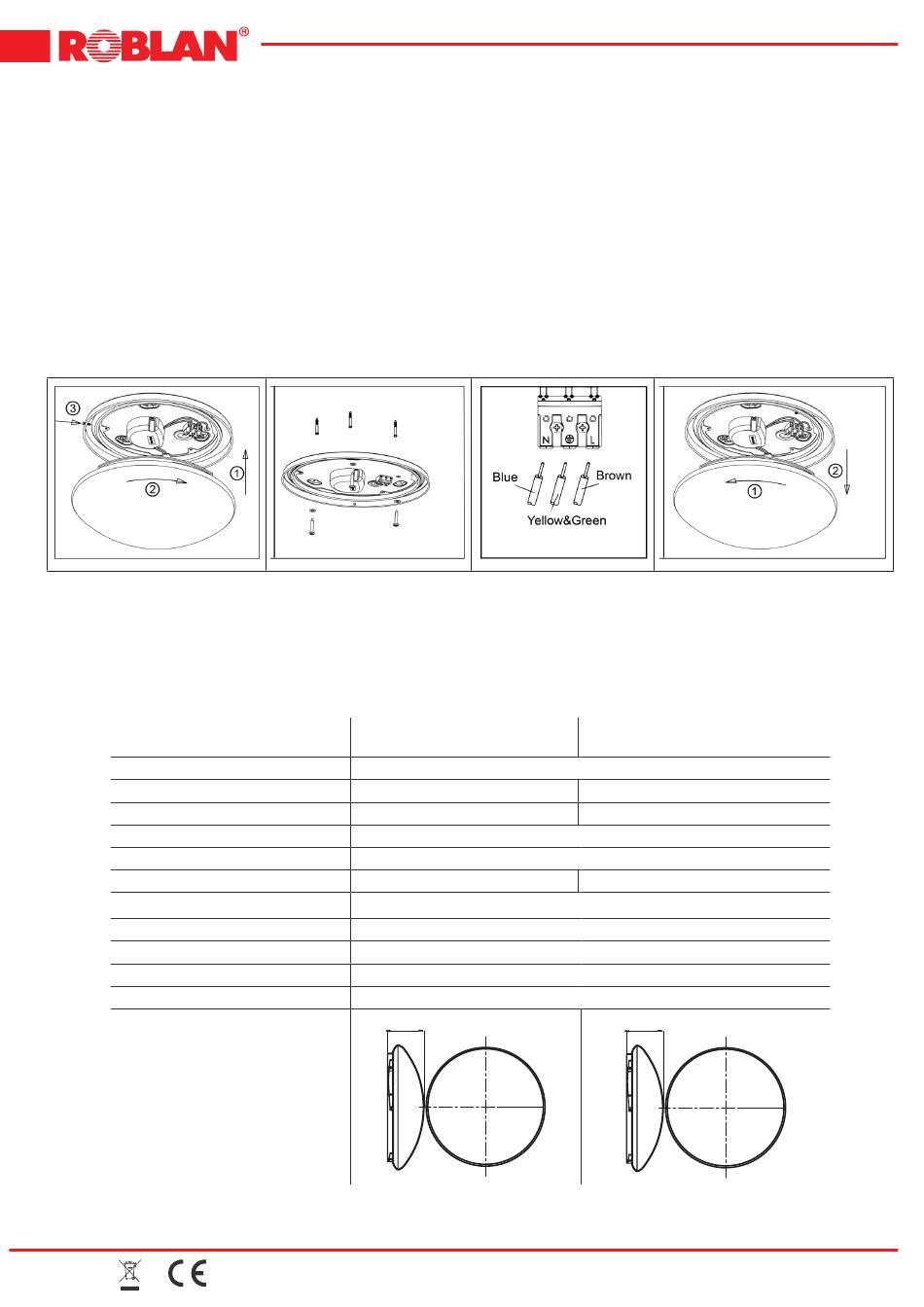

ROBLAN ICEIP44FRW18F Instruction Manual

LED ICE FPL IP44
NOTES
The product should be installed by a qualified electrician. The manufacturer reserves the right to refuse warranty service if
the product shows signs of damage due to incorrect maintenance or installation. Surface mounted installation only.
Do not install the product in high temperature or humid place.
INSTALLATION
1. Turn off the power.
2. Turn the lamp difuser to losen and and separate from the housing as shown in picture a.
3.Fix the housing with the expansion pipe and self-tapping screws as shown in picture b.
4.Connect the commercial power wire with the terminal block as shown in picture c.
5. Recheck if everything is well connected. Cover the housing with the lamp difuser and rotate to finish the installation (as
shown in picture d). Turn on the power.
a.
WARNINGS:
* Power should be cut off before installation, maintenance or inspection.
* Please install and use the light strictly according to the instruction.
* Do not disassemble or remold the product to avoid accident of electric shock or light failure.
ITEM NUMBER
Input Voltage(VAC)
Input Current(A)
Power(W)
Power Factor
Color Temperature(K)
Luminous Flux (Lm)
Beam Angle(°)
Lifespan (hour)
Protection Rate
Working Temperature(°C)
CRI (Ra)
Measurements
MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
b.
ICEIP44FRW18F
ICEIP44FRW18WW
105
Avda. de Las Retamas 5. 45950 Casarrubios del Monte (Toledo) España
Tel: +34 91 616 50 20 Email: roblan@roblan.com
c.
220-240V AC
0.14
18
>0.9
3000WW/ 4000NW
1500/1600
120
30000
IP44
-20-40
>80
360
d.
ICEIP44FRW32F
ICEIP44FRW32WW
0.24
32
2800/3000
11 5 410
www.roblan.com
