ROBLAN ICEIP20FRW10WW Instruction Manual

LED ICE IP20
NOTES
The product should be installed by a qualified electrician. The manufacturer reserves the right to refuse warranty service if
the product shows signs of damage due to incorrect maintenance or installation. Surface mounted installation only.
Do not install the product in high temperature or humid place.
INSTALLATION
1. Turn off the power.

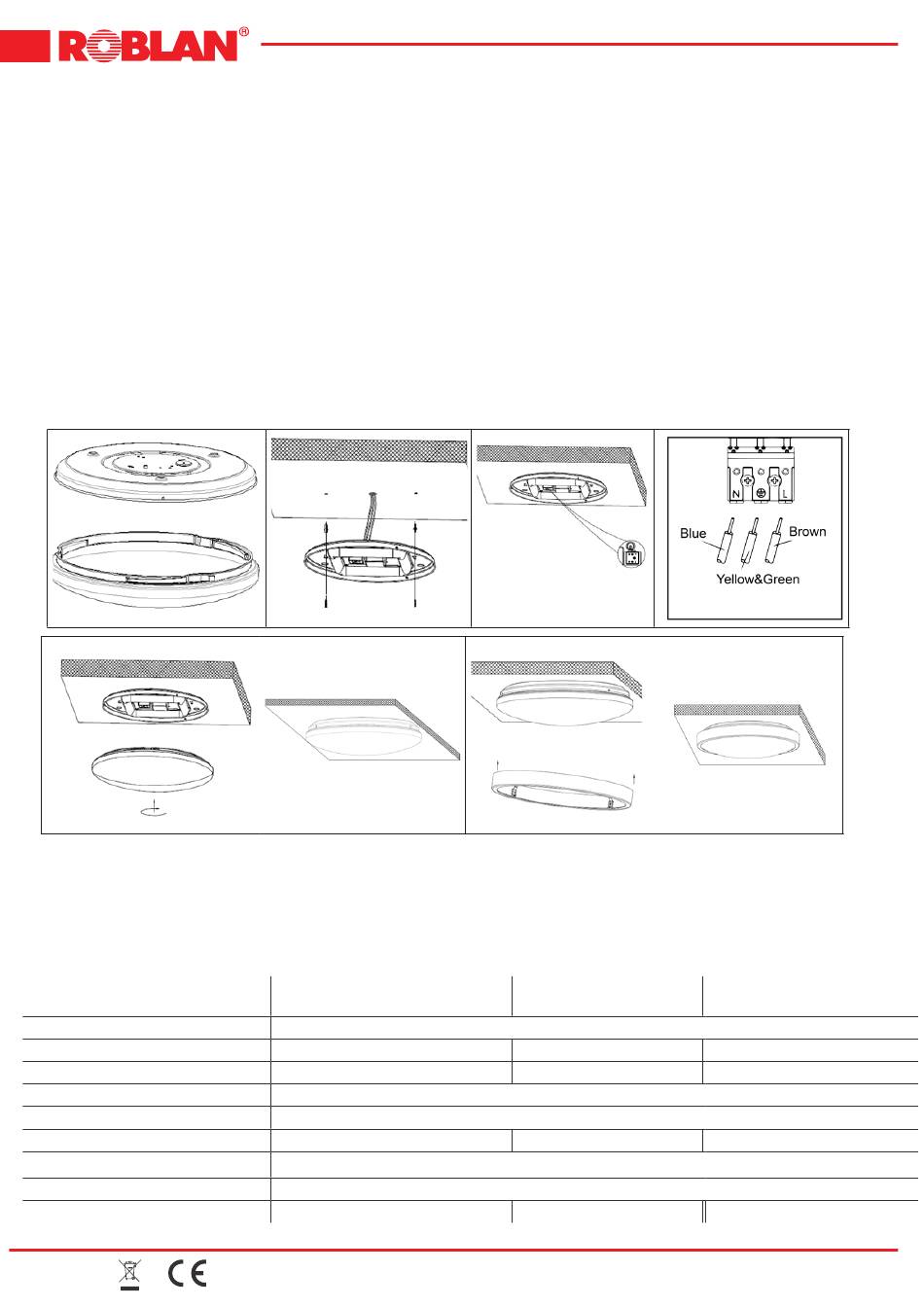

2. Turn the lamp difuser to losen and and separate from the housing as shown in picture a.
3.Fix the housing with the expansion pipe and self-tapping screws as shown in picture b.
4.Locate the connection terminal block (shown in picture c.) Connect the commercial power wire to the terminal block using
double insulation cables (as shown in picture d).
5. Recheck if everything is well connected. Cover the housing with the lamp difuser and rotate to finish the installation (as
shown in picture e). Turn on the power.
6. Place decorative ring (if purchased) by pushing as shown in picture f.
a.
e.

WARNINGS:

* Power should be cut off before installation, maintenance or inspection.
* Please install and use the light strictly according to the instruction.
* Do not disassemble or remold the product to avoid accident of electric shock or light failure.
ITEM NUMBER
Input Voltage(VAC)
Input Current(A)
Power(W)
Power Factor
Color Temperature(K)
Luminous Flux (Lm)
Beam Angle(°)
Working Temperature(°C)
Measurements
MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
b.
ICEIP20FRW10WW
ICEIP20FRW10F
80mA
10
700 WW/ 800F
Ø250*85mm
Avda. de Las Retamas 5. 45950 Casarrubios del Monte (Toledo) España
Tel: +34 91 616 50 20 Email: roblan@roblan.com
c.
f.
ICEIP20FRW16WW
ICEIP20FRW16F
220-240V AC
130mA
16.5
>0.5
3000WW/ 4000F
1555WW / 1600F
100
-20-40
Ø350*86mm
d.
ICEIP20FRW21WW
ICEIP20FRW21F
160mA
21
1800WW / 1850F
Ø400*88mm
www.roblan.com
