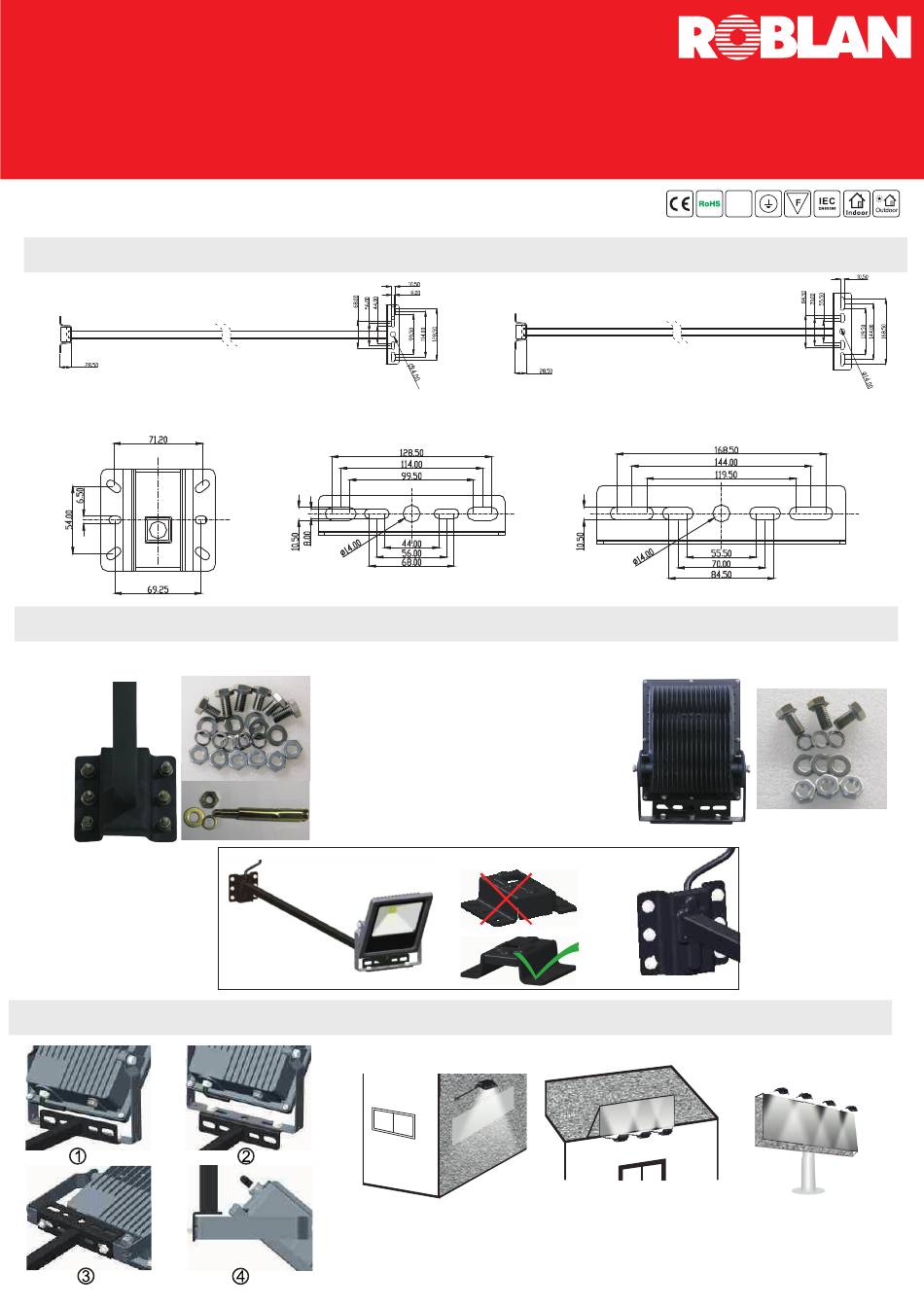

ROBLAN ARMBL50A1 Installation Instructions

Fixture Arms for Floodlights
PLEASE READ CAREFULLY BEFORE INSTALLATION:
-Unpack and check the product carefully and gather all the necessary equipment and materials mentioned in point 2
-If the product looks damaged in any way, please keep the product in the packaging and contact the dealer.
-Do not attempt to use a damaged product
- The product should be installed by a qualified electrician. If installed incorrectly the warranty will be void.
-Please turn off the power supply before installation or before manipulating the lamp in any way.
-Please check that the lamp voltage and input voltage are compatible before connecting.
-Non-professionals must not install or dismantle the lamps.
ARMBL50A1/ARMBL50A2: For 10W-50W floodlights
ARMBL80A1/ARMBL80A2: For 70W-200W floodlights
1. Installation Dimensions(Unit: mm)
ARMBL50A1/ARMBL80A1
Surface Base

2. Installation and use-

Items needed for Surface Base Mounting

3. Installation methods

ARMBL50A1/ARMBL80A1
Floodlight Base
Screws, washers,nuts and anchor bolts not included.
Surface Base Mounting: Drill Holes on the
surface according to the Base drawing in point 1
with a 6mm diameter drill. Place one Anchor Bolt
in the hole of the wall and then fix the arm with
screws, washers and nuts.
NOTE:
For 10W Floodlight use M6 Anchor Bolt
For 20W-50W Floodlights use M8 Anchor Bolt
For 70W-200W Floodlights use M10 Anchor Bolt
Pass the cable through the open end on the surface base support
Wall Mounted
IP65
ARMBL50A2/ARMBL80A2
ARMBL50A2/ARMBL80A2
Floodlight Base

Items needed for Floodlight Base mounting

Roof mounted
Upward light Downward light
Billboard
