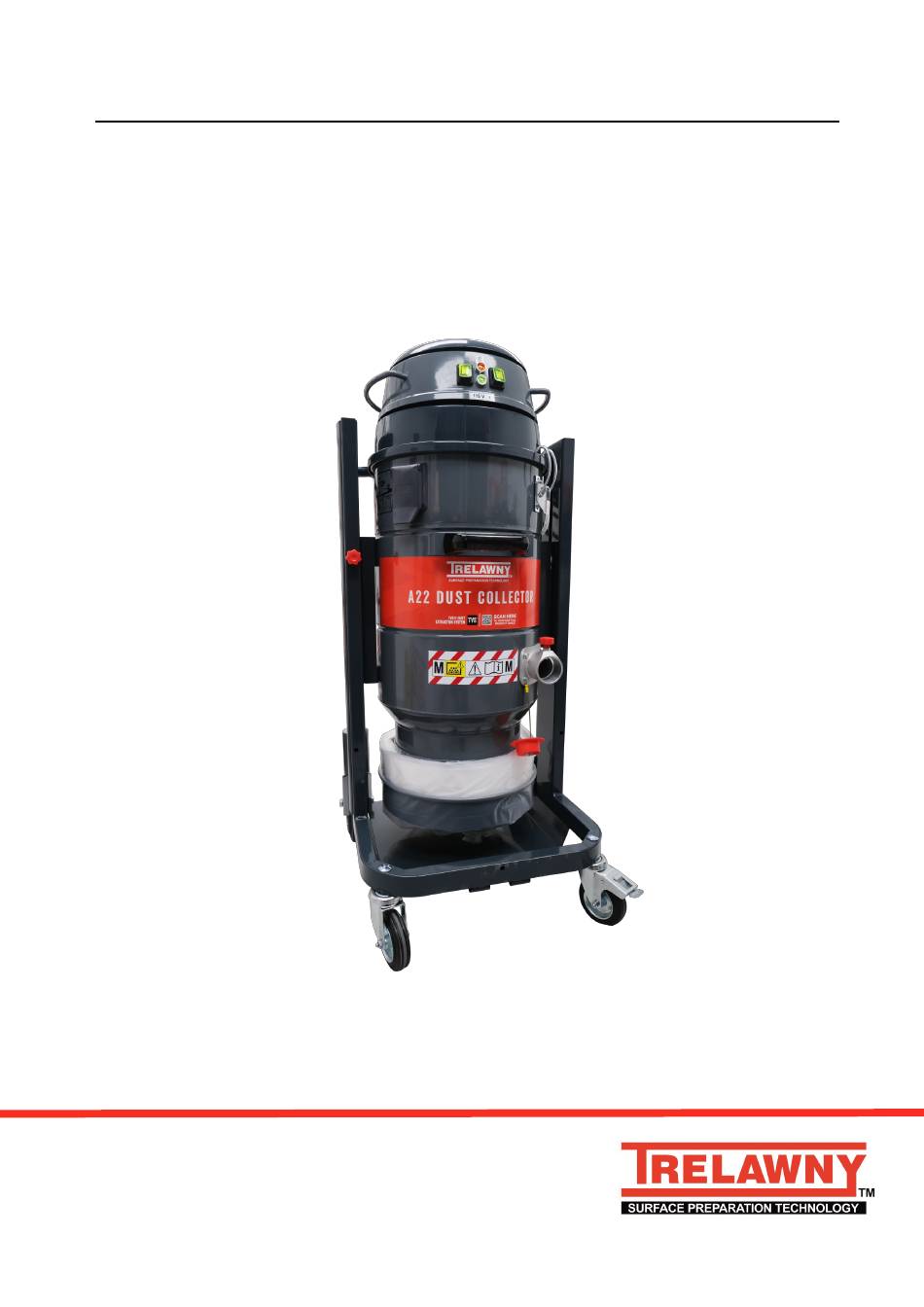

- Page 1 A22 Industrial Dust Collector (ENDLESSBAG) Operation and Maintenance Manual www.trelawnyspt.co.uk...
-
Page 4: Operation
Failure to follow Use of the machine without the others. these instructions could result in supplied filters is not recommended. damage to the A22 Vacuum and/or Trelawny cannot foresee all possible personal injury. If the machine is used to vacuum circumstances... -
Page 5: Pre-Start Check
OPTIONAL FILTERS Besides the optional HEPA filter Disconnect the plug from the power (303.5397), and depending on the When contacting Trelawny SPT socket. dust to be vacuumed, the following Ltd or their agents, always quote filters and accessories are also... - Page 6 OPERATION Starting 110v Motor Take particular care when using Description of controls 110v machines, ensure that the 230v electrical supply is earthed and that breakers and fuses are correct for the loading. 110v motor requires minimum of a 16 amp transformer centre tap power supply.
-
Page 7: Operation And Maintenance
OPERATION & MAINTENANCE Using the filter cleaning Release the two toggle clamps that hold the motor head in place. system. If the vacuum cleaner becomes inefficient, the filter will have to be cleaned by means of the special reverse pulse flap on the front of the machine. -
Page 8: Maintenance
MAINTENANCE ENDLESSBAG REPLACEMENT Once the length of ENDLESSBAG is exhausted replace with a new system as follows: Note the fitting over top of Support Ring. There are two retaining levers either side of the ENDLESSBAG Support Ring. Pull down and rotate these inwards to disconnect it from the Hopper container. -
Page 9: Fault Finding
If problem has not been cured by any of the above actions, contact your local Trelawny SPT dealership for assistance. Machine storage Remove the filter and clean it, empty the container and store the vacuum cleaner in a place protected against condensation and at a temperature between 0°C and 40°C. - Page 10 EXPLODED VIEW - MACHINE BODY ITEM PART NUMBER DESCRIPTION NUMBER 303.5372 110v Motor Head Assembly 303.5370 230v Motor Head Assembly 303.5397 Dust HEPA Filter ---- Chamber Kit 303.5592 50mm dia Flap 303.5395 Dust Cap ---- Machine Body Kit...
- Page 11 EXPLODED VIEW - ELECTRIC MOTOR...
- Page 12 All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty.
- Page 13 EXPLODED VIEW - FILTER ITEM No PART NUMBER DESCRIPTION 303.5275 “M” Cat Conical Cartridge Filter 303.5634 Hopper 303.5490 Toggle Clamp (2 x required) 303.5607 Left Mounting 303.5585 Nylon Washer 303.5606 Right Mounting 303.4588 Handle 303.5505 Double Bend Pawl 303.5570 Inlet 303.5345 Inlet Gasket 303.5605...
- Page 14 EXPLODED VIEW - FRAME ITEM No PART NUMBER DESCRIPTION 303.5510 Push Handle 303.5601 Sliding Bracket 303.5250 Gas Spring 303.5609 Column Cover 303.5608 Mounting Braket 303.5435 Back Wheel 303.5457 Wheel Axle Kit 303.5455 Castor Wheel with Brake 303.5453 Castor Wheel 303.5630 Trolley 303.5505 Double Bend Pawl...
- Page 15 NOTES...
- Page 16 Trelawny SPT Ltd 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 - Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk www.trelawnyspt.co.uk © TSPT UK 2017 Part No: 735.6022 Issued: 5.4.17...
