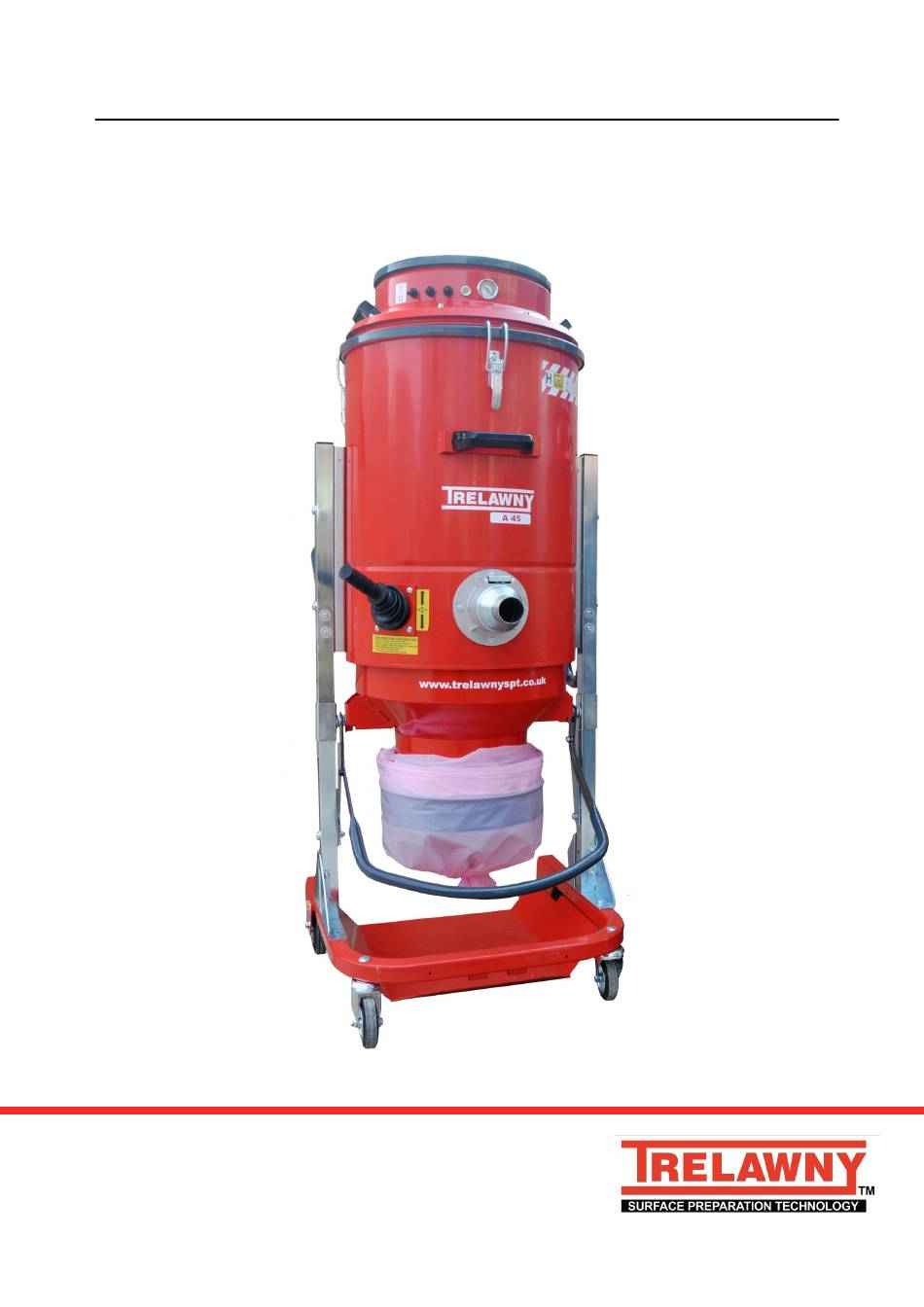

A45 Industrial Dust Collector (ENDLESSBAG)
Operation and Maintenance Manual
www.trelawnyspt.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A45 and is the answer not in the manual?

Questions and answers

Related Manuals for Trelawny A45

Summary of Contents for Trelawny A45

  • Page 1 A45 Industrial Dust Collector (ENDLESSBAG) Operation and Maintenance Manual www.trelawnyspt.co.uk...

  • Page 4: Operation

    Failure to follow Trelawny cannot foresee all possible these instructions could result in If the machine is used to vacuum circumstances capable damage to the A45 Vacuum and/or toxic/harmful substances, representing potential hazard, personal injury.

  • Page 5: Pre-Start Check

    Polyester filter cat.M complete standstill. For very fine dusts, the polyester filter are BIA institute certified. When contacting Trelawny SPT Ltd or thier agent, always quote the details shown vacuum cleaner serial plate.
  • Page 6 OPERATION Starting 240v Motor Make sure the power supply Take particular care when using corresponds to the voltage and Description of controls 240v Machines, ensure that the frequency indicated on the vacuum electrical supply is earthed and that cleaner plate. breakers and fuses are correct for the loading.

  • Page 7: Operation And Maintenance

    OPERATION & MAINTENANCE Using the filter cleaning General safety Make sure the sealing gaskets of the motor head base system. precautions filter-holder ring and of the Hopper These following operations must Maintenance jobs must always be are working efficiently. only be performed with the machine performed by skilled technicians, switched off once the motor has trained to carry out their specific...

  • Page 8: Maintenance

    MAINTENANCE Replacing the filters Release the levers that hold the Unscrew the clamp and remove the motor head To replace the filters, proceed as support ring with seal. follows: Turn off the vacuum cleaner by pressing down the motor STOP switches.

  • Page 9: Machine Storage

    Hopper or filter chamber. If problem has not been cured by any of the above actions, contact your local Trelawny SPT dealership for assistance. Machine Storage Remove the filter and clean it, replace with fresh ENDLESSBAG section and store the vacuum cleaner in a place protected against condensation and at a temperature between 0°C and 40°C.

  • Page 10: Exploded View - Machine

    EXPLODED VIEW - MACHINE Item Part No Description 303.5367 110v Motor Head Assembly 303.5366 230v Motor Head Assembly 303.5373 HEPA Filter Kit 303.5368 Filter Kit 303.5369 Chamber Kit -------- Frame Kit 303.3599 ENDLESSBAG Hopper Kit...
  • Page 11 EXPLODED VIEW - MOTOR HEAD...
  • Page 13 EXPLODED VIEW - FILTER UNIT Item Part No Description 303.5289 Filter Gasket 303.5507 Filter Holding Ring 303.5493 Filter Clamp 303.5501 Filter Separator Cage 303.5264 14 Pocket “G” Polyester Filter 303.5502 Filter Shaker Cage 303.5503 Cage Pivot Pin 303.5581 R-Clip...
  • Page 14 EXPLODED VIEW - FILTER CANISTER Item Part No Description 303.5490 Toggle Clamp (3 x required) 303.5611 Chamber 303.5562 Right “U” Channel Mounting Bracket 303.5306 Adhesive Gasket 303.5500 Deflector 303.5305 Deflector Gasket 303.5499 Inlet Connector 303.5504 Spring 303.5506 Connector Latch 303.5508 Latch Pin 303.5491 Filter Shaker Handle...
  • Page 15 EXPLODED VIEW - ENDLESSBAG Item Part No Description 303.5627 ENDLESSBAG Hopper 303.5347 O’Ring 303.5355 Flap Gasket 303.5604 Flap 303.5584 Spring 303.5603 Flap Arm 303.5583 Container 303.5602 Knob 303.5605 Container Hanger 303.5770 ENDLESSBAG bag (4 x 20m)
  • Page 16 EXPLODED VIEW - FRAME Item Part No Description 303.5509 End Cap 303.5595 Column 303.5512 Slider 303.5511 Lever Fulcrum 303.5517 R/H Cable Tie Holder 303.5597 ENDLESSBAG Support Plate 303.5513 Fastener Lever 303.5614 Frame Base 303.5430 Castor Wheel with Brake 303.5453 Caster Wheel (Unbraked) 303.5437 Axle Wheel Kit 303.5436...

  • Page 17: Technical Specifications

    All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty.
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 Trelawny SPT Ltd 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 - Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk www.trelawnyspt.co.uk © TSPT UK 2012 Part No: 735.6050 issue 18.9.17...
