ORTOLED S LINE -81-480 Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Info
ORTOLED S LINE
Cod. Modello
Size
Power
Application
Distance
Cod. Modello
Size
Power
Application
Distance
Cod.Modello
Size
Power
Application
Distanza minima
ORTOLED-81-480
900x900x85mm
480W
Serre indoor
40-50cm
ORTOLED-82-720
1100X1100X85mm
720W
Serre indoor
40-50cm
ORTOLED-83-960
1100x1100x85mm
960W
Serre indoor
40-50cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S LINE ORTOLED-81-480 and is the answer not in the manual?

Questions and answers

Related Manuals for ORTOLED S LINE ORTOLED-81-480

Summary of Contents for ORTOLED S LINE ORTOLED-81-480

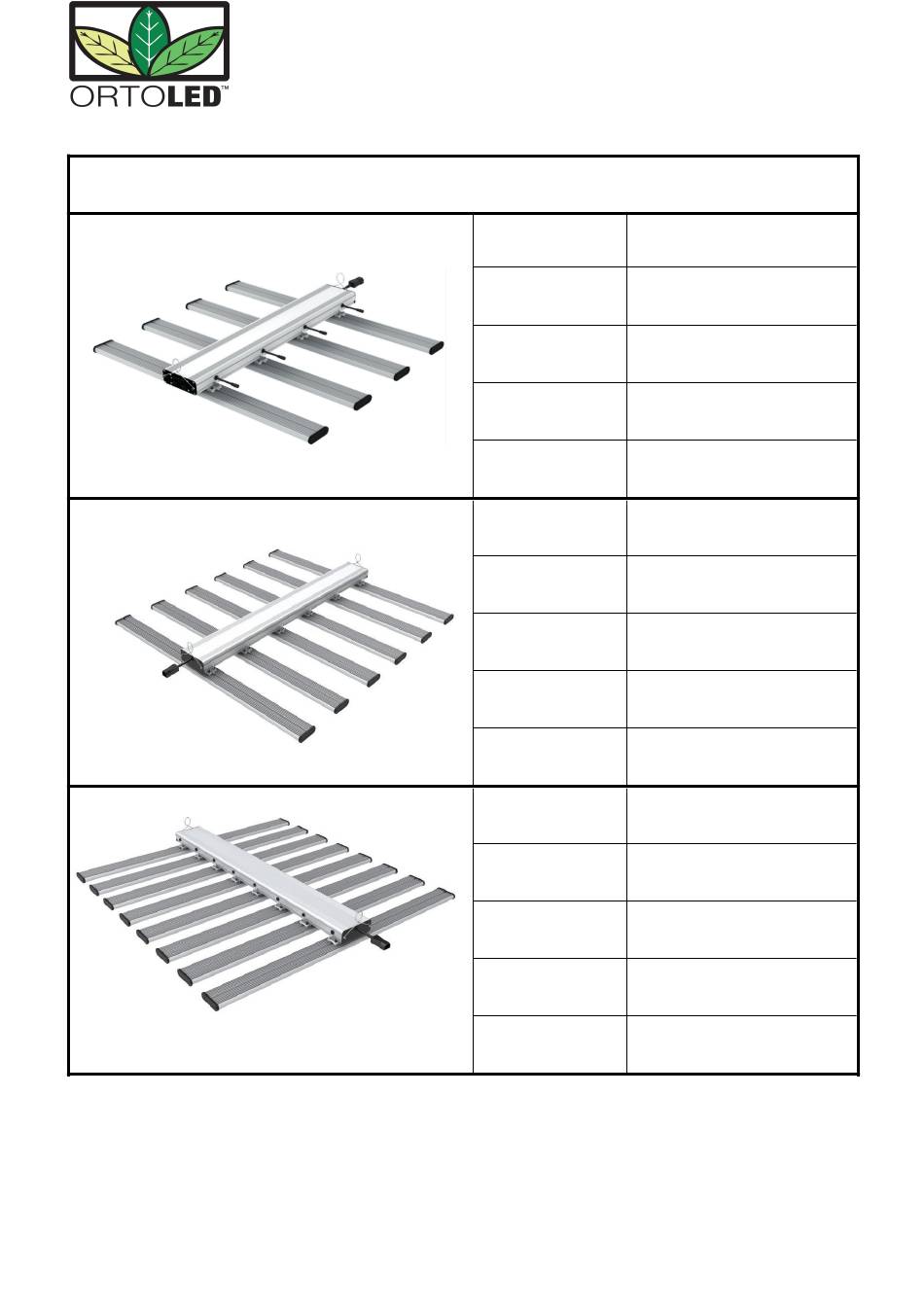

  • Page 1 ORTOLED S LINE Info Cod. Modello ORTOLED-81-480 Size 900x900x85mm Power 480W Application Serre indoor 40-50cm Distance Cod. Modello ORTOLED-82-720 Size 1100X1100X85mm Power 720W Serre indoor Application Distance 40-50cm Cod.Modello ORTOLED-83-960 Size 1100x1100x85mm Power 960W Application Serre indoor Distanza minima 40-50cm...

  • Page 2: Delivery Contents

    Delivery contents 4/6/8 x LED bars 1 x driver box 1 x power cable 1 x 3m long RS485 cable 2 x Adjustable hanging kits Please keep the instruction manual and desist from throwing it away. It might come in handy with future troubleshooting.

  • Page 3: Product Data Sheet

    Fixed bracket Plastic part 3. Product Datasheet: 3.1 Product specifications ORTOLED-83-960 ORTOLED-82-720 ORTOLED-81-480 Item LED bar qty. 4x LED bars 6x LED bars 8x LED bars Product Size 900*900*85mm 1100*1100*85mm 1100*1100*85mm N.W./ G.W. 14.25KG/16.10KG 16.50KG/18.00KG 19.75KG/22.25KG Power consumption 720W 960W...
  • Page 4 3.2 Spectrum 4. Control 4.1 control diagram: 4.2 Control function: - Timer setting - Dimming control - High Temp Protection - For Large Application up to 252units - Perfect simulation of sunrise and sunset...

  • Page 5: Installation Instruction

    5. Preparation • Transportation Improper transportation may harm or can even cause damage to LED lamp and power housing box). In case of obvious damage or incomplete scope of supply, please refer to your vendor and Haulage company immediately. • Unboxing Please handle and unbox the LED lamp with care! Check the delivery contents for completeness first.
  • Page 6 7. DC distribution DIAGRAM S-8-960： S-6-720: Caution: Do not remove single bar from one group of one driver while S-720/960 is still powered on, rest bar (s) of the group may get burnt by current overloading.

  • Page 7: Operation

    8. Operation 8.1 Safety measures & precaution Warning! This LED fixture is powered with electricity (AC100-277V)! To prevent injury, we ask you to desist from improper use! •• Never open the case of the device! Health hazards await the consumer and the warranty of the device expires.
