Setup

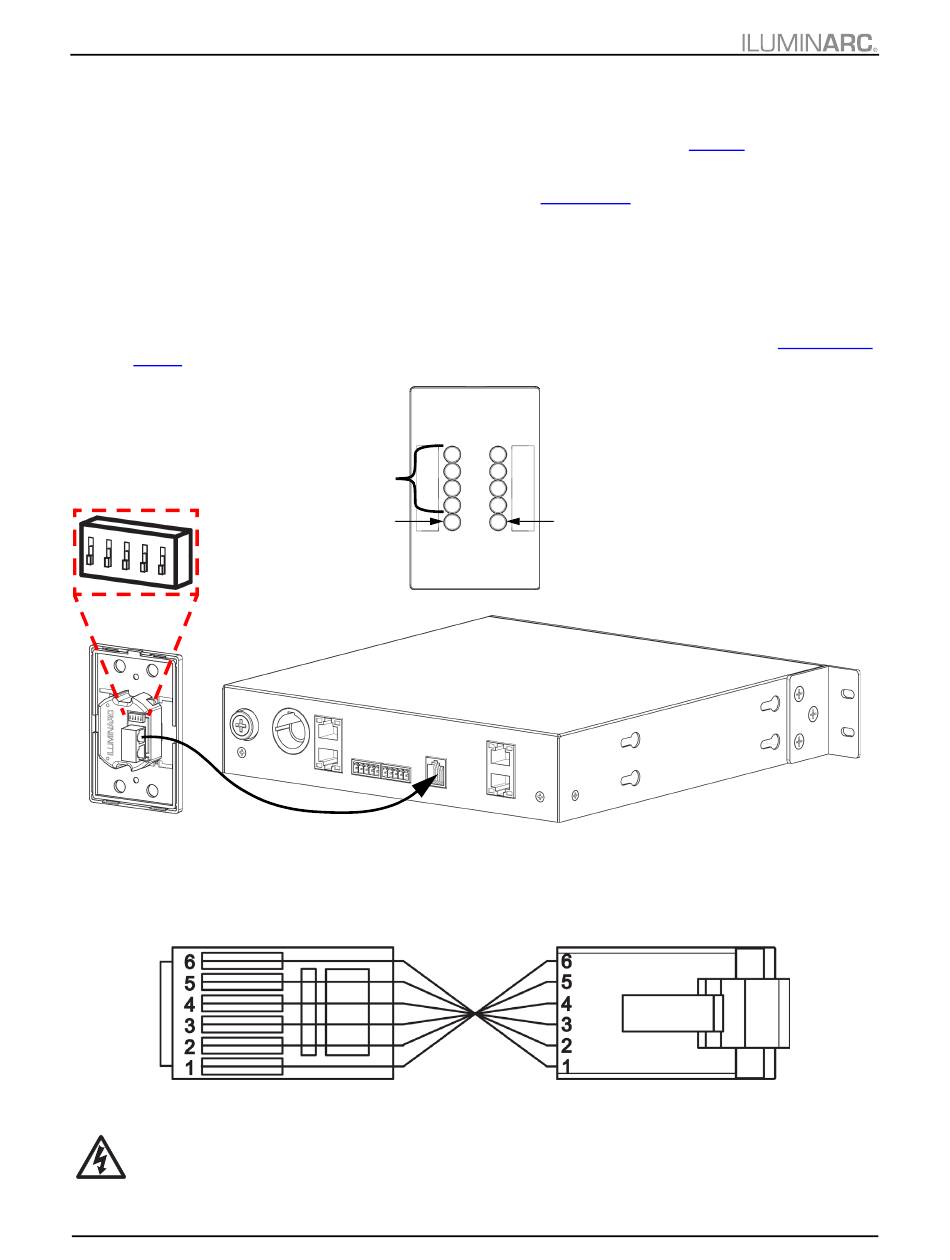

LΩGIC Wall Controller
Each LΩGIC Drive 2X comes with a LΩGIC Wall Controller which can plug into the RJ12 connector on the
back of the product.
• Buttons 1–8 trigger playback of the corresponding recorded scenes (see Record).
• After triggering a scene, press that button again and hold it for 6-10 seconds to lock the controls
and prevent tampering. The selected button's LED backlight will flash to indicate success. Press
and hold the button again to unlock the controls. See
• Buttons 9 and 10 decrease and increase the brightness of the connected LΩGIC products.
• 5-bit DIP switches set the address of the LΩGIC Wall Controller. Each LΩGIC Wall Controller must
have a unique address set by this DIP switch (from 0–31), or the LΩGIC Drive 2X will be unable to
respond to any LΩGIC Wall Controller. The order of addresses does not matter, only that they do
not repeat.
• Up to 4 LΩGIC Wall Controller products can be chained to one LΩGIC Drive 2X, allowing versatile
and convenient control from multiple locations.
• The LΩGIC Wall Controller requires an RJ12 cable with flipped/reversed wiring. See
Wiring for more information.

RJ12 Cable Wiring

The LΩGIC Wall Controller requires an RJ12 cable with flipped/reversed wiring. This means that pin 1 on
one side connects to pin 6 on the other side, pin 2 connects to pin 5, pin 3 connects to pin 4, and so on.
Using an RJ12 cable without flipped wiring may damage the product.
RJ12 6P6C
WARNING! The LΩGIC Wall Controller requires a flipped/reverse RJ12 cable! Incorrect
wiring may damage the product!
LΩGIC Drive 2X User Manual Rev. 1
Scene Lock
1–8
9
for more information.
10
RJ12 6P6C
RJ12 Cable
6
