User Manual
Model ID: LOGICDRIVE2X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOGIC Drive 2X and is the answer not in the manual?

Questions and answers

Related Manuals for Iluminarc LOGIC Drive 2X

Summary of Contents for Iluminarc LOGIC Drive 2X

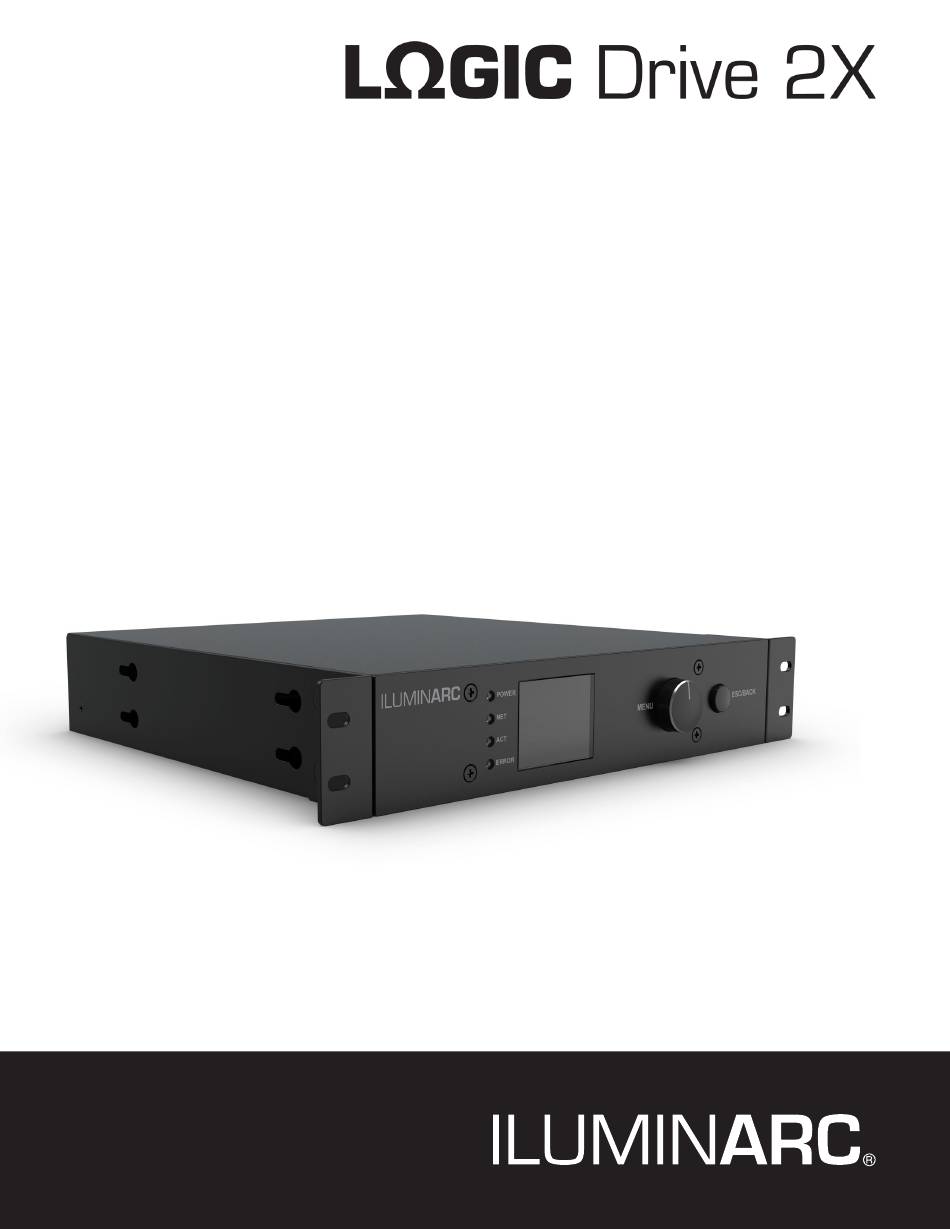

  • Page 1 User Manual Model ID: LOGICDRIVE2X...
  • Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.iluminarc.com. Document Revision This LΩGIC Drive 2X User Manual is the 1...

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................FCC Compliance................... Safety Notes....................Personal Safety....................Mounting and Rigging ..................Power and Wiring....................Operation ......................2. Introduction ................Description ....................
  • Page 4 Table of Contents 4. Operation ..................Control Panel Description ................Programming....................Password ......................Menu Map ..................... RDM Chart ....................Home Screen ....................Control Protocol .................... Local......................Net Switch ......................Universe ......................Password Lock ....................Output Status ..................... Local Information....................Priority ........................ Reset........................
  • Page 5 Table of Contents System Clock ....................Setting Clock ...................... Schedule ......................Everyday........................26 By date ........................27 By week ........................27 Fade In and Fade Out ..................Enable Clock ...................... Web Server ....................Home........................Status ......................... Fixture List......................Settings ......................Administrator Settings ..................

  • Page 6: Before You Begin

    Before You Begin 1. Before You Begin What Is Included • LΩGIC Drive 2X • 1 Short rack ear bracket • Seetronic Powerkon IP65 power cable • 1 Long rack ear bracket • LΩGIC Wall Controller • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

  • Page 7: Safety Notes

    Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians.

  • Page 8: Introduction

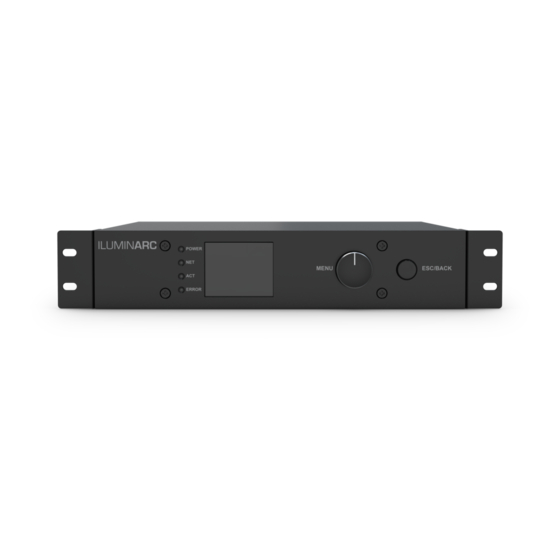

    2. Introduction Description The Iluminarc LΩGIC Drive 2X is the heart of the LΩGIC Lighting System. With two Ethernet outputs supplying 110W each (Power Over Ethernet), the LΩGIC Drive 2X functions as the central control and power unit of the LΩGIC System. Accepting a variety of control schemes, the Drive also integrates calendar and scheduling functions, and easily connects to an included eight button wall panel or any industry standard wall controller.

  • Page 9: Product Dimensions

    Introduction Product Dimensions 1.81 in 0.236 in 46 mm 6 mm 10.31 in 1.14 in 262 mm 29 mm 9.5 in 0.846 in 241.4 mm 21.5 mm 8.6 in 218.5 mm 18.95 in 481.4 mm 0.0787 in 9.64 in 2 mm 245 mm 1.378 in 35 mm...

  • Page 10: Setup

    Setup 3. Setup AC Power The LΩGIC Drive 2X has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the Technical Specifications.

  • Page 11: Lωgic Wall Controller

    Setup LΩGIC Wall Controller Each LΩGIC Drive 2X comes with a LΩGIC Wall Controller which can plug into the RJ12 connector on the back of the product. • Buttons 1–8 trigger playback of the corresponding recorded scenes (see Record). • After triggering a scene, press that button again and hold it for 6-10 seconds to lock the controls and prevent tampering.

  • Page 12: Signal Connections

    If you are not familiar with or need more information about DMX standards or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.iluminarc.com. DMX Linking The LΩGIC Drive 2X will work with a DMX controller using a 5-pin phoenix connector. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/...

  • Page 13: Art-Net™ Connection

    Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an ethernet connection over a large network. An Art-Net™ protocol document is available from www.iluminarc.com. Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

  • Page 14: Lωgic Product Chaining

    Setup LΩGIC Product Chaining The LΩGIC Drive 2X powers and controls each connected LΩGIC product via a Power Over Ethernet (POE) connection. When linking LΩGIC products to the LΩGIC Drive 2X, there is a set maximum number of each LΩGIC product which can be powered by a single port. Power Consumption Product Capacity per Port/POE...

  • Page 15: Mixing Lωgic Products

    Setup Mixing LΩGIC Products While it is not recommended to mix different LΩGIC products in a section of chain powered by a single POE injector, it is possible to do so. For the best results when mixing multiple product types, keep the combined power consumption at or under 75 W before adding another POE injector to the chain.

  • Page 16: Mounting

    Setup Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. Rigging Chauvet recommends using the following general guidelines when mounting this product. •...

  • Page 17: Wall/Surface Mounting

    Setup Wall/Surface Mounting The LΩGIC Drive 2X has 2 four-directional tear-drop holes on the bottom for hanging on a wall or securing to a surface. Make sure that the mounting hardware and the surface to which it will be mounted can support the weight of the product.

  • Page 18: Operation

    _ _minutes Hours has been on _ _ seconds Label Logic Drive 2X Shows product label Local Info Device UID _ _ _ _ _ _-_ _ _ _ _ _ _ _ Shows device UID MAC Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ Shows the MAC address...
  • Page 19 Operation Main Level Programming Levels Description Wall-mounted control panel has Control Panel priority Priority Signal Signal input has priority Resets the LΩGIC Drive 2X to Reset Local factory default settings (cont.) Displays connected product List _ _ _ _ _ history History Cancel clear...
  • Page 20 Operation Main Level Programming Levels Description Turn on Turn off Schedules daily times to turn Everyday on and off (stackable with other 00–23:00–59:00–59 schedule options) Turn on Turn off Schedules a date and time to Month:01–12 Month:01–12 turn on and off (stackable with By date Day:01–31 Day:01–31...

  • Page 21: Rdm Chart

    Operation RDM Chart Refer to the LΩGIC Drive 2X product page on www.iluminarc.com for the latest RDM chart. Category RDM Parameter IDs (Slot 21-22) Value Detail DISC_UNIQUE_BRANCH 0x0001  Network DISC_MUTE 0x0002  Management DISC_UN_MUTE 0x0003  QUEUED_MESSAGE 0x0020 ...

  • Page 22: Home Screen

    Operation Home Screen The LΩGIC Drive 2X has a home screen that shows the current control protocol, number of connected LΩGIC products, IP address, and date as set on the internal calendar. The home screen will also indicate if the System Clock has placed the product in Shut off mode. To see the home screen, press <ESC/BACK>...

  • Page 23: Output Status

    Operation Output Status To view the status of the output ports: 1. Go to the Local main menu. 2. Select the Output Status option. 3. Select the output, from Output 1 Status or Output 2 Status. 4. View the output data: •...

  • Page 24: Linked Fixture

    4. Select the desired LΩGIC product. The selected product will flash its LEDs for the duration it is being accessed. Refer to the LΩGIC Drive 2X product page and the product page for the selected LΩGIC product on www.iluminarc.com for the latest menu maps. Main Level...

  • Page 25: Individual Lωgic Product Configuration

    Operation Individual LΩGIC Product Configuration Control Personality (Individual) To set the control personality individually for the selected LΩGIC product: 1. From the menu of the selected LΩGIC product, select the Personality option. 2. Select the desired personality, from RED, GREEN, BLUE, WHITE, TW, RGB, RGBW, RGBW+D, or FULL.

  • Page 26: Renew

    Operation Renew To re-scan for connected LΩGIC products: 1. Go to the Linked Fixture main menu. 2. Select Status. 3. Select Renew. 4. Select from No (cancel) or Yes (renew). Control Personality (Global) To set the control personality of all connected LΩGIC products at once: 1.

  • Page 27: Control Channel Assignments And Values

    Operation Control Channel Assignments and Values FULL (10 Channels) Channel Function Value Percent/Setting Dimmer 000  255 0–100% 000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% White 000  255 0–100% 000  010 No function 011 ...

  • Page 28: Rgbw+D (5 Channels)

    Operation RGBW+D (5 Channels) Channel Function Value Percent/Setting Dimmer 000  255 0–100% 000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% White 000  255 0–100% RGBW (4 Channels) Channel Function Value Percent/Setting 000  255 0–100% Green 000 ...

  • Page 29: White (1 Channel)

    Operation WHITE (1 Channel) Channel Function Value Percent/Setting Dimmer 000  255 White only, 0–100% BLUE (1 Channel) Channel Function Value Percent/Setting Dimmer 000  255 Blue only, 0–100% GREEN (1 Channel) Channel Function Value Percent/Setting Dimmer 000  255 Green only, 0–100% RED (1 Channel) Channel Function...

  • Page 30: Record

    Operation Record The LΩGIC Drive 2X can record control signal input (DMX, Art-Net™, or sACN) for later playback through the display menu or by a connected LΩGIC Wall Controller. The LΩGIC Drive 2X has 8 recording slots. When a scene is triggered for playback, it will play continuously until it is stopped or another recording is triggered.

  • Page 31: Erase Recording

    Operation Erase Recording To erase a recording slot: 1. Go to the Record main menu. 2. Select the Record Erase option. 3. Select the desired recording slot, from Record1–8 Clr. 4. Select from No (cancel) or Yes (erase the selected recording slot). System Clock The system clock functions allow the LΩGIC Drive 2X to place itself in or out of Shut off mode on a set schedule.

  • Page 32: By Date

    Operation By date To set specific dates to turn on and off: 1. Go to the System Clock main menu. 2. Select the Schedule option. 3. Select the By date option. 4. Review the current settings. To begin editing them, press the <MENU> knob. After setting each option, press the <MENU>...

  • Page 33: Web Server

    Operation Web Server The LΩGIC Drive 2X web server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as product addressing, static color testing, and calendar triggers, as well as firmware updates for both the LΩGIC Drive 2X and any connected LΩGIC products.

  • Page 34: Status

    Operation Status The STATUS screen displays the information available in the Local Information Output Status sections of the display menu. Fixture List The FIXTURE LIST screen displays information for each connected LΩGIC product which has been detected by the LΩGIC Drive 2X and provides the following control options: •...

  • Page 35: Settings

    Operation Settings The SETTINGS screen displays and provides 5 types of control options: • Basic: displays and sets the control Protocol, the first value of the IP address (Net switch) for the LΩGIC Drive 2X, the control Personality, and the Universe address if applicable. Click Save to send any changed settings to the LΩGIC Drive 2X.

  • Page 36: Administrator Settings

    The procedure for updating the firmware of the LΩGIC Drive 2X is identical to the procedure for updating the firmware of connected LΩGIC products. 1. Download the latest firmware files from www.iluminarc.com. 2. Access the web server for LΩGIC Drive 2X according to the instructions under Server.

  • Page 37: Maintenance

    Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

  • Page 38: Technical Specifications

    Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 10.31 in (262 mm) 9.64 in (245 mm) 1.81 in (46 mm) 4.6 lb (2.1 kg) Note: Dimensions in inches are rounded. Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging...

  • Page 39: Returns

    Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

  • Page 40: Contact Us

    Technical Support Chauvet World Headquarters Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: support@iluminarc.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.iluminarc.com Chauvet Europe Ltd Address: Unit 1C Email: UKtech@chauvetlighting.eu...
