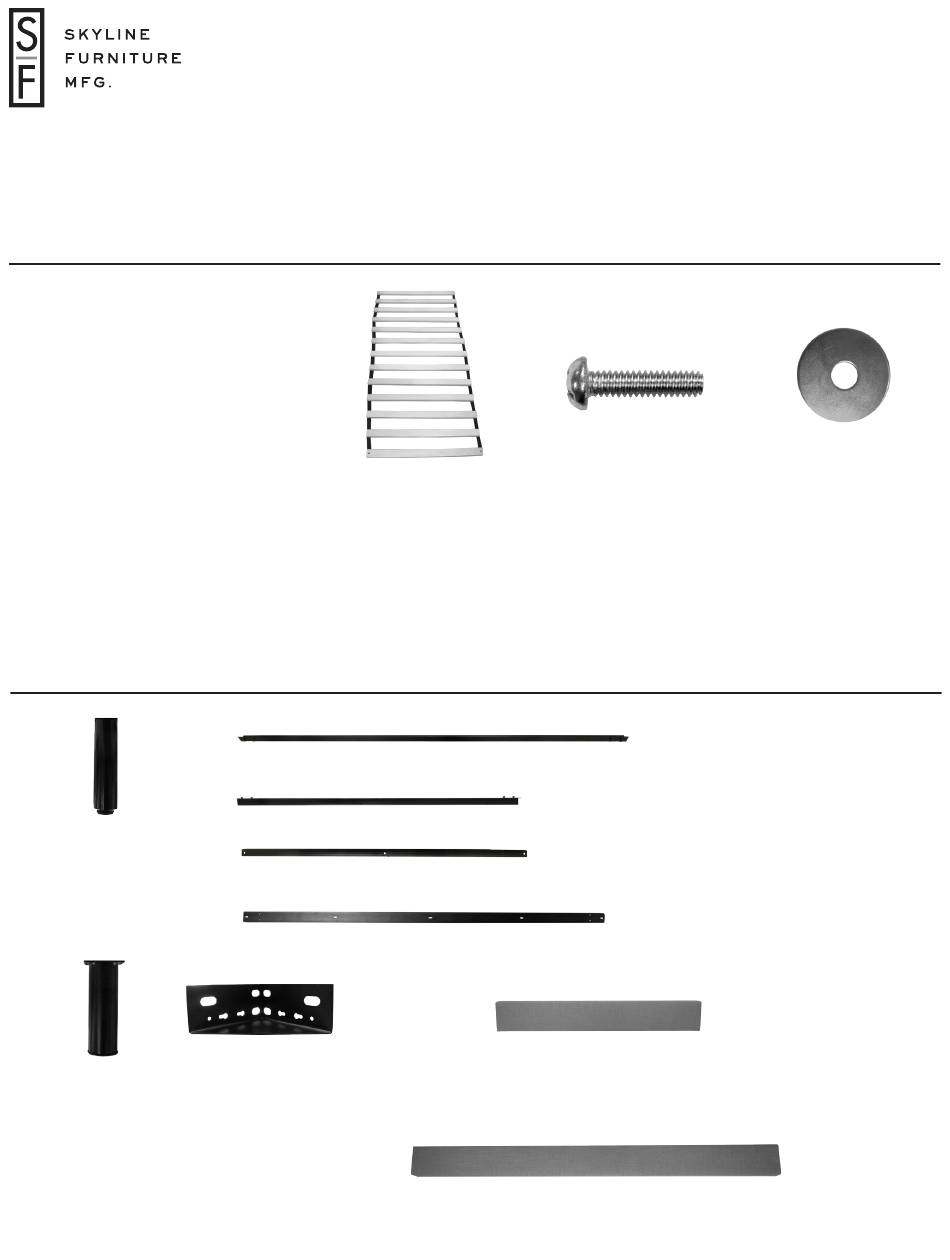

bed components
Notes:
•
Open all hardware packets before proceeding.
•
Two people are needed for assembly.
•
Additional support legs are in wooden plank
roll box.
You will need:
• flat head screwdriver
bed components cont.
support legs
(1) Twin
(4) Full
(5) Queen
(6) King/California King
(4) legs
(4) corner brackets
for all sizes
Standar d pla tfor m b ed
(continued on next page)
wooden plank rolls
(1) Twin
(2) Full/Queen/
King/California King
for all sizes
Assembly Instructions for
(6) 1" x 5/16" bolts
(2) side rails
for all sizes
(2) end rails
for all sizes
horizontal support rail
(1) Twin, Full, and Queen
(3) King and California King
(1) vertical support rail
for Full/Queen/King/ California King
(1) upholstered foot rail
for all sizes
(2) upholstered side rails
for all sizes
Platform Series
(6) 1¼" washers
Advertisement
Table of Contents
Related Manuals for Skyline Furniture Platform Series
Summary of Contents for Skyline Furniture Platform Series
- Page 1 Standar d pla tfor m b ed Assembly Instructions for Platform Series bed components (continued on next page) Notes: • Open all hardware packets before proceeding. • Two people are needed for assembly. • Additional support legs are in wooden plank roll box.
- Page 2 LIMITE DE GARANTIA GARANTIE LIMITÉE SKYLINE FURNITURE INC. guarantees SKYLINE FURNITURE INC. garantiza SKYLINE FURNITURE INC. garantit ses its upholstered furniture against defects in sus muebles tapizados contra defectos en meubles rembourrés contre les défauts de construction for a period of one (1) year.
- Page 3 Step 1 1. Attach side rail and end rail to corner bracket. Make sure to align holes and snap into thinner slot. Continue this action until you have a rectangular frame. 2. Attach corners to rails using (8) ¼” bolts and (8) ¼” nuts. Step 2 Attach legs to rails using (4) ¾”...
- Page 4 Step 3 Attach horizontal support rail using (2) ¼” bolts and (2) ¼” nuts. Make sure to attach the horizontal support rail underneath the bed frame. Note: King and California King have 3 horizontal support rails, and therefore (6) 1/4” bolts and (6) 1/4”...
- Page 5 Step 5 Attach each support leg to the horizontal & vertical support rails using (1) 1” x ¼” bolts and (1) ¾” washer. Note: Twin = 1 support leg Full = 4 support legs Queen = 5 support legs King/California King = 6 support legs (Queen image displayed) Step 6 For Full, King, and Cal King:...
- Page 6 Step 7 1. Use (6) 1” x 5/16” bolts, (6) 1 ¼” washers to attach upholstered rails to bed frame loosely. Attach side rails before securing the foot rail. 2. Push side rails towards foot rail, so that there is no gap. 3.
- Page 7 Step 9 Connect assembled bed to your headboard. Attach pieces using (4) 1” x ¼” bolts, (8) 1¼” washers*, and (4) ¼” nuts. * Use a washer on each side of the metal legs when attaching headboard to the bed frame. (image may vary from actual item) Step 10 With a phillips screwdriver,...
