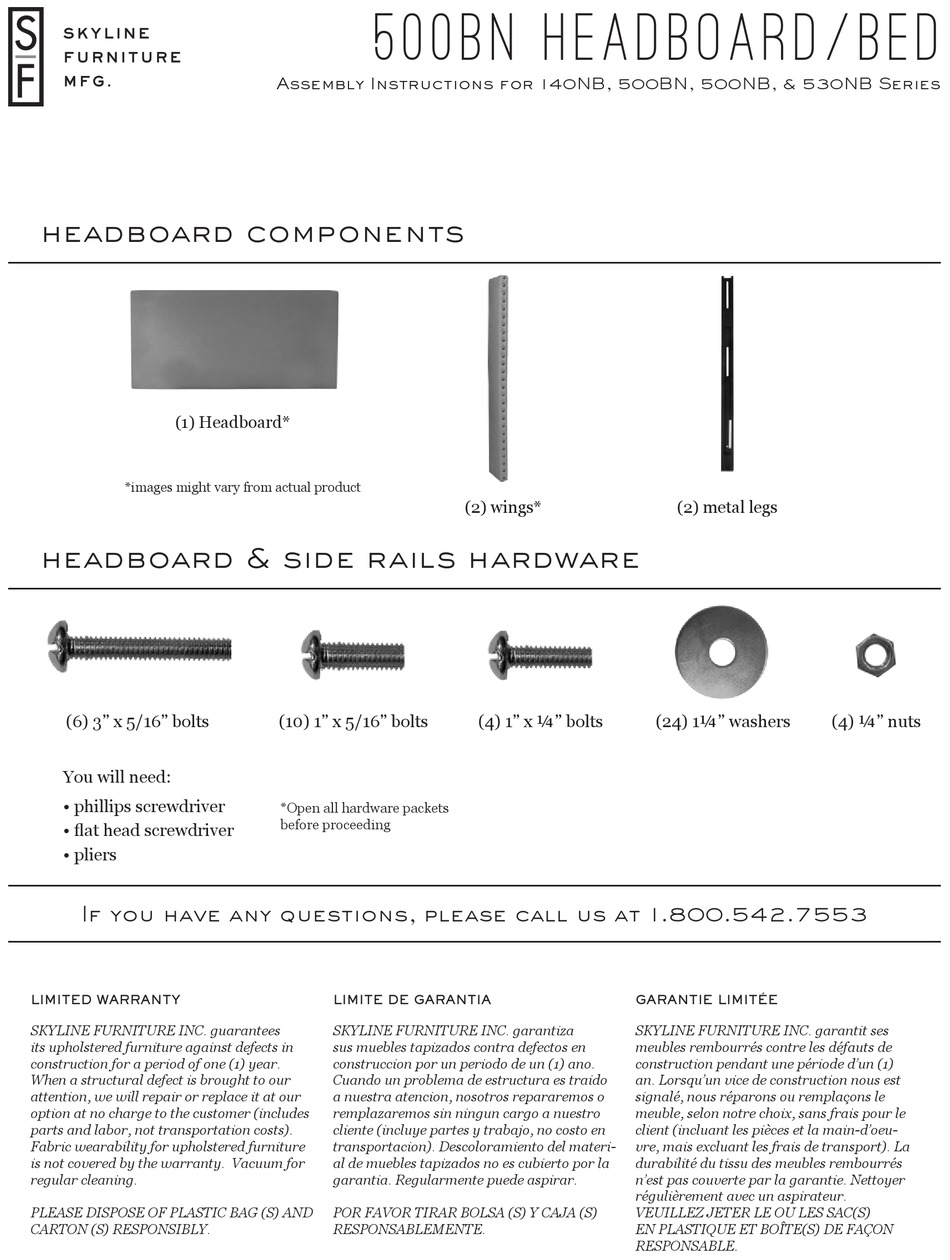

headboard components
(1) Headboard*
*images might vary from actual product
headboard & side rails hardware
(6) 3" x 5/16" bolts
You will need:
• phillips screwdriver
• flat head screwdriver
• pliers
If you have any questions, please call us at 1.800.542.7553
LIMITED WARRANTY
SKYLINE FURNITURE INC. guarantees
its upholstered furniture against defects in
construction for a period of one (1) year.
When a structural defect is brought to our
attention, we will repair or replace it at our
option at no charge to the customer (includes
parts and labor, not transportation costs).
Fabric wearability for upholstered furniture
is not covered by the warranty. Vacuum for
regular cleaning.
PLEASE DISPOSE OF PLASTIC BAG (S) AND
CARTON (S) RESPONSIBLY.
5 0 0 BN head boar d/b ed
Assembly Instructions for 140NB, 500BN, 500NB, & 530NB Series
(10) 1" x 5/16" bolts
*Open all hardware packets
before proceeding
LIMITE DE GARANTIA
SKYLINE FURNITURE INC. garantiza
sus muebles tapizados contra defectos en
construccion por un periodo de un (1) ano.
Cuando un problema de estructura es traido
a nuestra atencion, nosotros repararemos o
remplazaremos sin ningun cargo a nuestro
cliente (incluye partes y trabajo, no costo en
transportacion). Descoloramiento del materi-
al de muebles tapizados no es cubierto por la
garantia. Regularmente puede aspirar.
POR FAVOR TIRAR BOLSA (S) Y CAJA (S)
RESPONSABLEMENTE.
(2) wings*
(4) 1" x ¼" bolts
GARANTIE LIMITÉE
SKYLINE FURNITURE INC. garantit ses
meubles rembourrés contre les défauts de
construction pendant une période d'un (1)
an. Lorsqu'un vice de construction nous est
signalé, nous réparons ou remplaçons le
meuble, selon notre choix, sans frais pour le
client (incluant les pièces et la main-d'oeu-
vre, mais excluant les frais de transport). La
durabilité du tissu des meubles rembourrés
n'est pas couverte par la garantie. Nettoyer
régulièrement avec un aspirateur.
VEUILLEZ JETER LE OU LES SAC(S)
EN PLASTIQUE ET BOÎTE(S) DE FAÇON
RESPONSABLE.
(2) metal legs
(24) 1¼" washers
(4) ¼" nuts
Advertisement
Related Manuals for Skyline Furniture 140NB Series
Summary of Contents for Skyline Furniture 140NB Series
- Page 1 LIMITE DE GARANTIA GARANTIE LIMITÉE SKYLINE FURNITURE INC. guarantees SKYLINE FURNITURE INC. garantiza SKYLINE FURNITURE INC. garantit ses its upholstered furniture against defects in sus muebles tapizados contra defectos en meubles rembourrés contre les défauts de construction for a period of one (1) year.
- Page 2 bed components (2) side rails (4) legs (1) center leg* (1) center rail* (2) end rails *King and California King bed frames will have additional support legs, rails, and hardware. (4) corner brackets (1) upholstered (2) upholstered foot rail side rails bed hardware (1) 1”...
- Page 3 Step 1 Attach each wing to headboard using: 1. (1) 3” x 5/16” bolt and (1) 1¼” washer 2. (1) 3” x 5/16” bolts and (1) 1¼” washer 3. (1) 3” x 5/16” bolts and (1) 1¼” washer 4. Repeat step 1-3 for the other wing.
- Page 4 Step 2 Insert metal legs through the holes in the headboard. Make sure that you place the correct leg facing “Out.” Attach the metal legs to the headboard with (2) 1” x 5/16” bolts and (2) 1¼” washers for each leg. Continue onto step 3 onwards if building a complete bed or step 8 to attach the headboard to...
- Page 5 Step 3 Attach side rail and end rail to corner bracket. Make sure to align holes and snap into thinner slot. Continue this action until you have a rectangular frame. Step 4 Attach corners to rails using (8) ¼” bolts and (8) ¼”...
- Page 6 Step 5 Attach legs to rails using (4) ¾” x 5/16” bolts and (4) ¾” washers. Step 6 Attach center rail using (2) ¼” bolts and (2) ¼” nuts.* Make sure to attach the rail underneath the bed frame. *King and California King bed frames will have two additional center supports and hardware.
- Page 7 Step 7 Attach center leg to rails using (1) 1” x ¼” bolts and (1) ¾” washer.* *King and California King bed frames will have six support legs and hardware. Installation of extra legs are the same. Step 8 Attach bed frame to headboard using (4) 1”...
- Page 8 Step 9 *Loosely attach all upholstered rails before final tightening. 1. Use (6) 1” x 5/16” bolts, (6) 1 ¼” washers to attach rails to bedframe. Screw in side rails before attaching the foot rail. 2. Push side rails towards foot rail, so that there is no gap.
- Page 9 Step 10 With a screwdriver, attach (2) L brackets and (8) ¾” self-tapping screws in the corners of the foot rail. This is needed to increase stability of upholstered rails.
