tell CL600 Instructions

INSTRUCTIONS AND TEMPLATE FOR
CL600 PK PANIC KIT

MECHANICAL LOCK

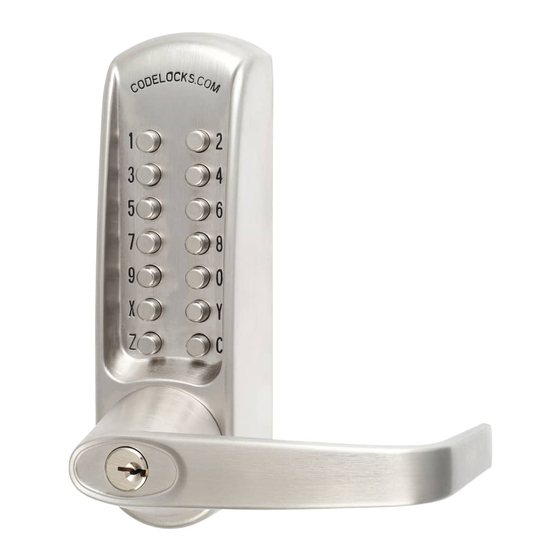

CL600 Mechanical Lock Trim
Using the template on page 2, install the CL600 Lock Trim with the Exit Device. Tape
template to the door, mark the holes and drill where needed.
Exit Device
Bolts
(supplied)
Exit Device
(not supplied)
Thru-Bolts
1. Fit Rubber gasket onto the back of Lock Trim .
2. Screw 3 Lock Trim Posts into back of Lock Trim and tighten.
3. Screw 2 Exit Device Posts to the Cover Plate plate and tighten.
4. Fit Cover Plate over the 3 Lock Trim Posts .
5. Attach the Lock Trim to the door using the 2 Bolts and Washer Plate on top and 1 Bolt and Metal
Flange through the 2-1/8" door prep.
(If no door prep, follow template instruction to drill proper holes)
6. Using the correct Spindle, marked L for left hand or R for right hand, fit the spindle set through
the door and insert it to the spindle hole on the Lock Trim.
7. Hold panic device to the door, aligning holes and spindle. Secure to Lock Trim Thru-bolts.
8. Attach the panic device – sold separately.
Tell Manufacturing | A Division of Spectrum Brands Inc.
Washer Plate
Metal
Spindle
Flange
(marked
L or R)
Lock Trim
Bolts
Exit Device
Posts
Lock
Trim
Posts
Cover
Plate
Thru-Bolts
(not supplied
w/lock trim)
1
READ AND FOLLOW
INSTRUCTIONS CAREFULLY.
Incorrect installation or adjustment
could cause damage or injury.
Lock Trim
Rubber
Gasket
1-800-433-4047 | CL102258-04092020
