SAFETY CONSIDERATIONS
Installing, starting up, and servicing air-conditioning equip-
ment can be hazardous due to system pressures, electrical
components, and equipment location. Only trained, qualified
installers and service mechanics should install, start-up, and
service the 09AZ equipment (Fig. 1).
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 530-921
Downloaded from
ManualsNet.com
Installation, Start-Up and
Service Instructions
CONTENTS
Printed in U.S.A.
search engine
Remote Air-Cooled Condensers
When working on the equipment, observe precautions in the
literature and on tags, stickers, and labels attached to the equip-
Page
ment. Follow all safety codes. Wear safety glasses and work
gloves. Keep quenching cloth and fire extinguisher nearby
when brazing. Use care in handling, rigging, and setting bulky
equipment.
Separate power sources (main and control power circuits)
are used for these units. Be sure both main and control
power circuits are disconnected before servicing. Electrical
shock could cause personal injury.
DO NOT USE TORCH to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective gloves and gog-
gles and proceed as follows:
a. Shut off electrical power to unit.
b. Recover refrigerant to relieve all pressure from sys-
tem using both high-pressure and low pressure ports.
c. Traces of vapor should be displaced with nitrogen
and the work area should be well ventilated. Refrig-
erant in contact with an open flame produces toxic
gases.
d. Cut component connection tubing with tubing cutter
and remove component from unit. Use a pan to catch
any oil that may come out of the lines and as a gage
for how much oil to add to the system.
e. Carefully unsweat remaining tubing stubs when nec-
essary. Oil can ignite when exposed to torch flame.
Failure to follow these procedures may result in personal
injury or death.
DO NOT re-use compressor oil or any oil that has been
exposed to the atmosphere. Dispose of oil per local codes
and regulations. DO NOT leave refrigerant system open to
air any longer than the actual time required to service the
equipment. Seal circuits being serviced and charge with
dry nitrogen to prevent oil contamination when timely
repairs cannot be completed. Failure to follow these proce-
dures may result in damage to equipment.
Form 09AZ-1SI
09AZ091-182
90 to 200 Tons
Pg 1
612
2-01
Replaces: New

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 09AZ091-182 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier 09AZ091-182

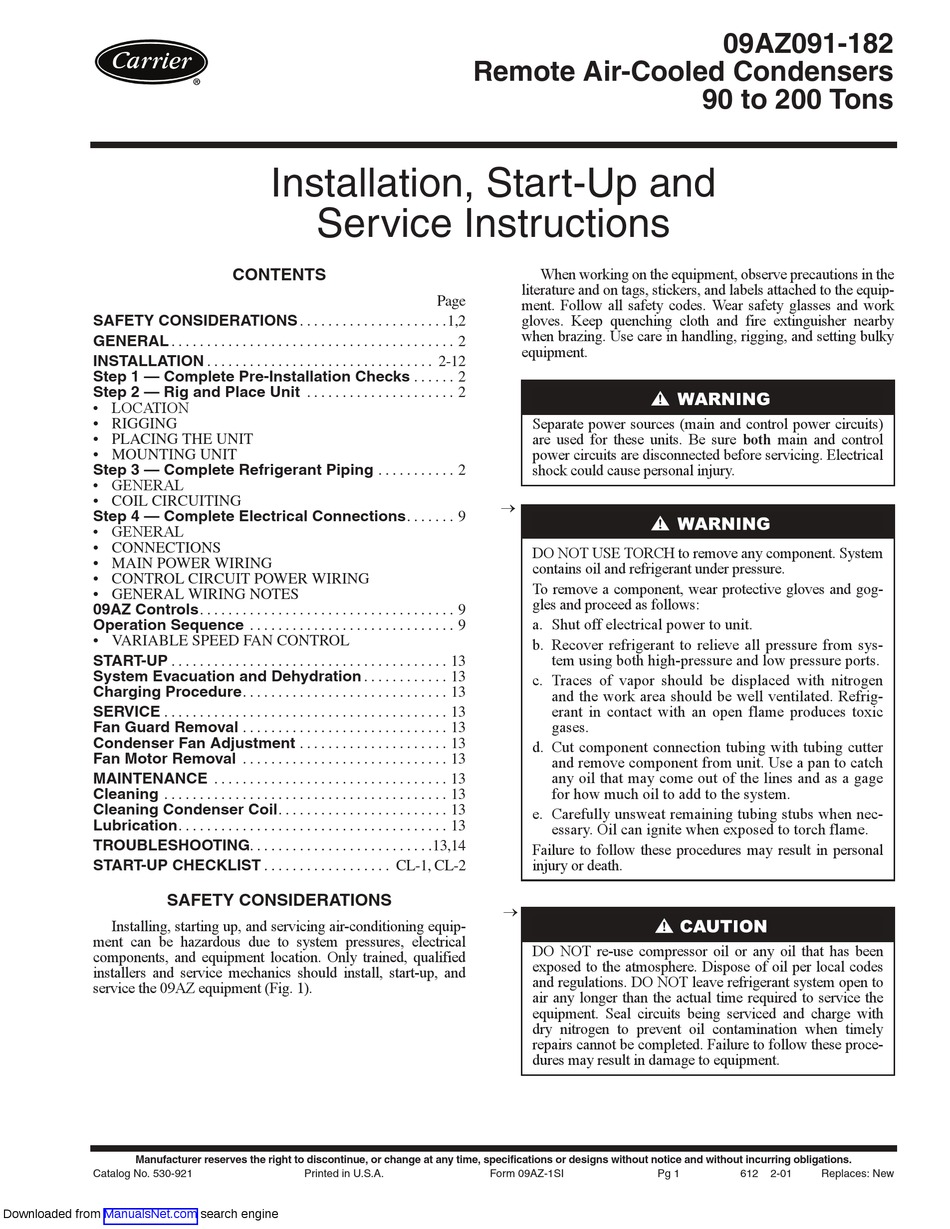

  • Page 1 09AZ091-182 Remote Air-Cooled Condensers 90 to 200 Tons Installation, Start-Up and Service Instructions When working on the equipment, observe precautions in the CONTENTS literature and on tags, stickers, and labels attached to the equip- Page ment. Follow all safety codes. Wear safety glasses and work gloves.
