Technical Specifications; Electric Connection - Brunetti Matrix User Manual

Matrix
is the only splitter - switcher that allows musicians to control their equipment.
Matrix
is able to:
- Buffer the signal of your guitar.
- Insert in chain 3 low level loops.
- Split your signal to 4 completely balanced and galvanically separated outputs, by a very high quality multiwindings
transformer. Each output (A, B,C, TUNER) defines a system that allows you to use heads, pre and power amps,
tuner.
- Control the effect loops of your heads and/or of your pre and power amps, and insert up to 2 rack multieffects in
mono or stereo mode.
- Control the power outputs of your heads and/or of your power amps sending them to 1 stereo speaker cabinet
or to 2 mono speaker cabinets.
- Connect automatically an internal load to the systems not in use to avoid damages to your equipment.
- Set speaker system in mono or stereo mode (mono heads or stereo power amps).
- Switch up to 3 functions for external outboard (channels, loops etc.)
- Supply phantom power to your foot pedal effects.
- Supply phantom power to your midi controller pedal, via a midi cable.
- Map the midi channels.
All these facilities are guaranteed by a new, fast and reliable microprocessor. Every component has been chosen
for each own application. All the loops have been designed to allow the best performance with every kind of effects.
Matrix
For all these reasons
required, with no interferences and noise.
- Low noise transparent buffered HI/Z input
- 3 fast SSL lo/level loops, for foot pedal effects.
- 4 floating transforner balanced LO/Z outputs, with muting SSL (A, B, C, Tuner)
- 3 systems (A, B, C) for heads and/or pre and power amps
- 2 fast hi/level loops, for rack multieffects
- 3 NO or NC midi controlled switches
- 2 switchable speaker systems.
- 9 VdC / 200 mA phantom power for foot pedal effects
- 12VdC / 300mA phantom power for midi controller
- MIDI channels mapping (from 2 to 8 + omni)
- 1 Rack U- weight 2 Kg
EQUIPMENT
- Power cable
- Instruction manual
- Warranty Card

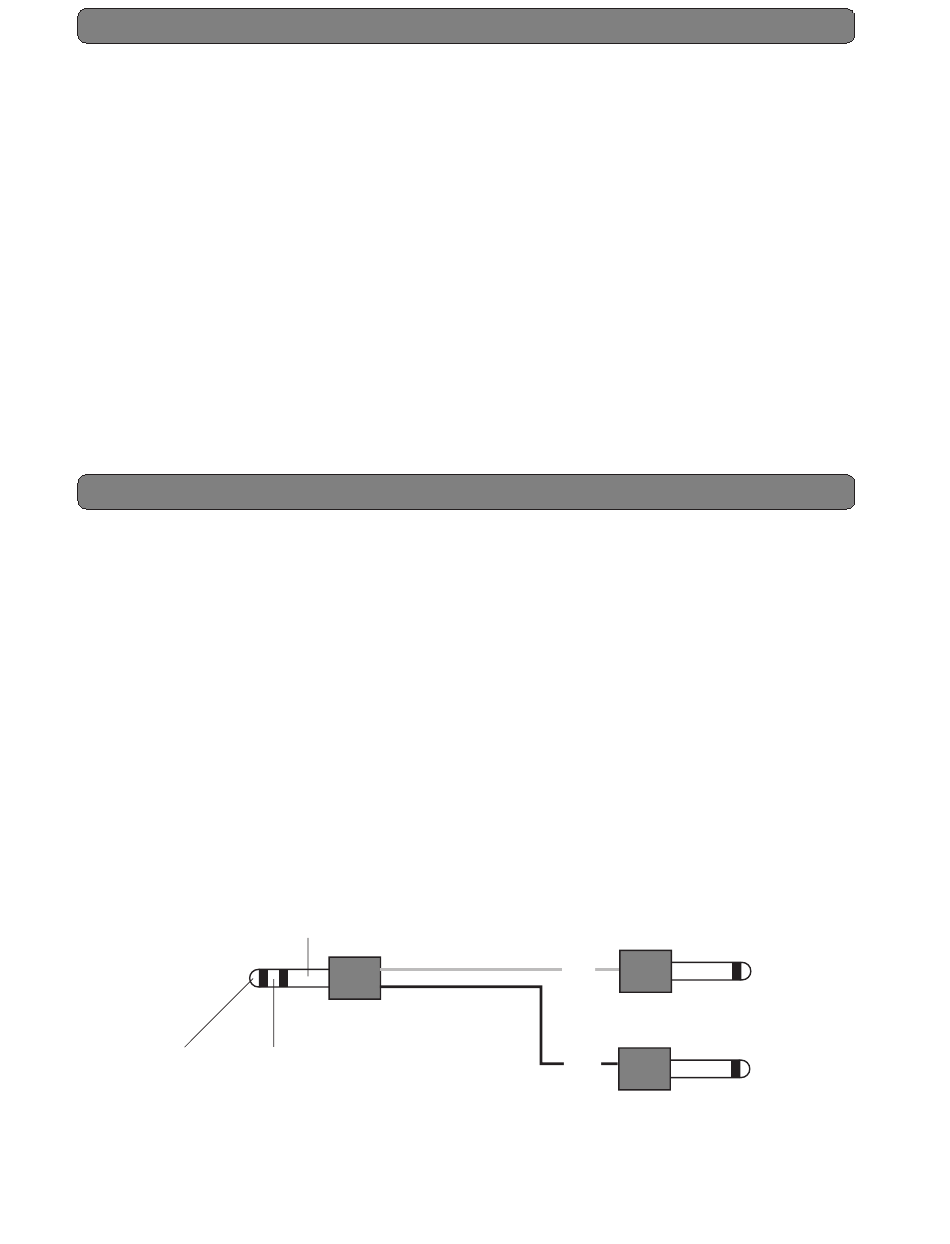

- 4 loop cables (1 stereo to 2 mono jacks).
SEND TO INPUT RETURN TO OUTPUT

ELECTRIC CONNECTION

-Electric safety and correct work are guarantee when the unit is correctly earthed.
-Ensure that voltage value printed on the rear panel correspond to
All manuals and user guides at all-guides.com
CONGRATULATION FOR YOUR CHOICE!
Matrix
loops are totally transparent and clickless.
is unique in its kind. you can use it in all those situations a high switching ability is

TECHNICAL SPECIFICATIONS

GND
Grey
Black
available current.
OUTPUT
INPUT
