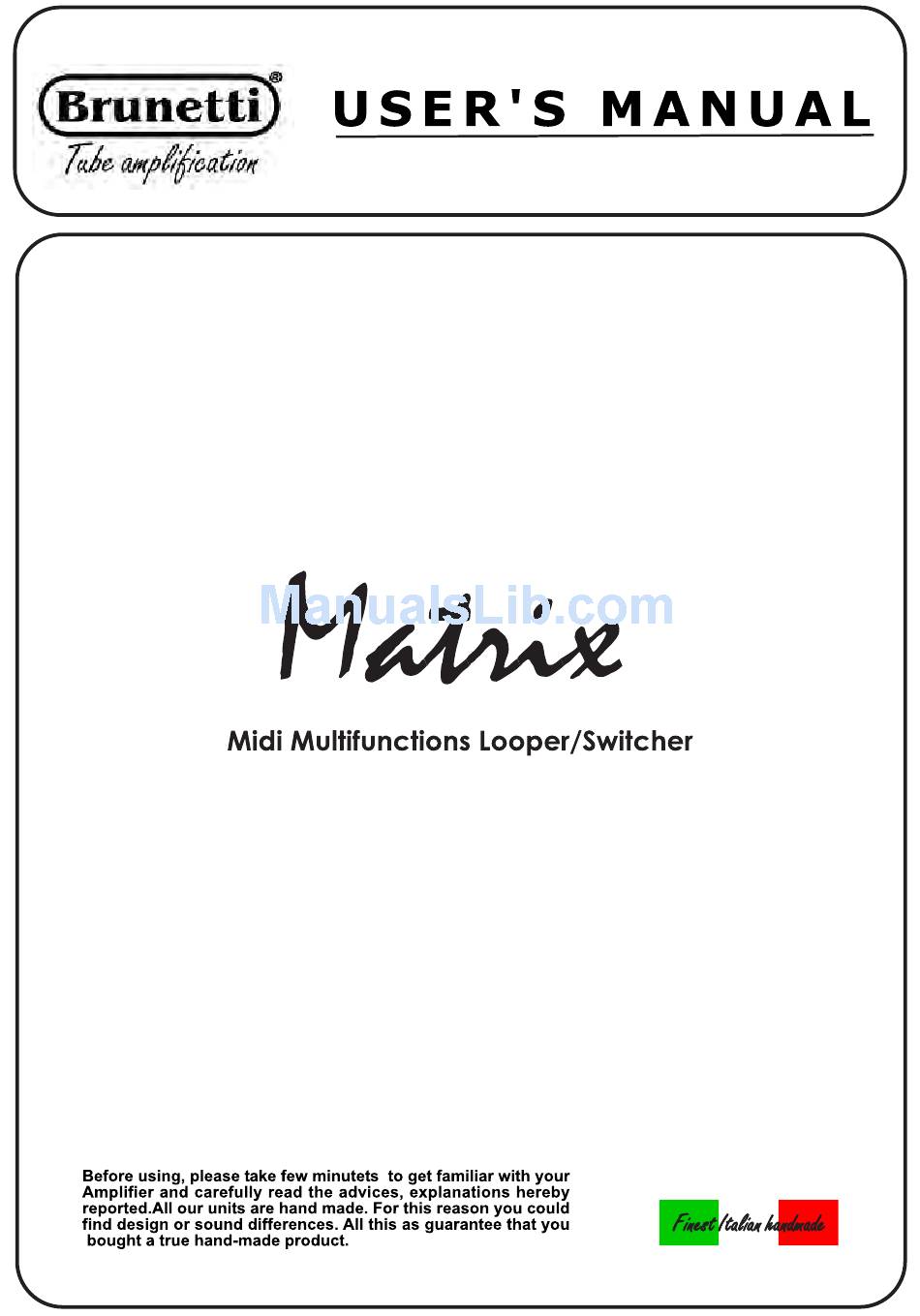

Summary of Contents for Brunetti Matrix
-
Page 2: Technical Specifications
CONGRATULATION FOR YOUR CHOICE! Matrix is the only splitter - switcher that allows musicians to control their equipment. Matrix is able to: - Buffer the signal of your guitar. Matrix - Insert in chain 3 low level loops. loops are totally transparent and clickless. - Page 3 MATRIX FLOW DIAGRAM In from Out to input From Amp Input Spk out Out to input pre/out Head L & R pre/head MATRIX head snd head return Power Out Mute Loop Loop Loop Buffer Buffer Mute Foot1 Foot2 Foot3 Buffer...
- Page 5 ® The following examples show you how to connect 2 heads, 1 foot pedal effect, 1 rack effect and 1 4x12” stereo speaker cabinet 8 ohm 9Vdc power cable Select 2x8ohm supplied cables (1 4x12”speaker cabinet) SWITCHES LOOPS FOOT 220V-250mAT MADE IN ITALY SWITCHES POWER INPUTS SPKR...
- Page 6 ® The following examples show you how to connect 2 heads, 1 foot pedal effect, 1 rack effect and 2 1x12” speaker cabinets 16 Ohm 9Vdc power cable Select 2x16ohm Supplied cables (2 1x12”speaker cabinets) (stereo jack) 220V-250mAT MADE IN ITALY SWITCHES LOOPS FOOT...
-
Page 7: Power Amp
® The following examples show you how to connect 1 heads,1 pre and power amp, 2 foot pedal effects, 1 rack effect and 1 4x12” stereo speaker cabinet 8 ohm 9Vdc power cable Supplied cables Select 2x 8ohm Supplied cables (1 4x12”speaker cabinet) (stereo jack) (stereo jack) - Page 8 ® The following example show you how to connect 1 head,1preamp (using the power amp of the head),2 foot pedal efx,1 rack efx, 1 4x12”cabinet 9 Vdc power cable supplied cables supplied cables (Jack stereo) (Jack stereo) (Jack stereo) (Jack stereo) 220V-250mAT MADE IN ITALY SWITCHES LOOPS...
- Page 9 ® The following example show you how to connect 2 preamp, 1 poweramp,2 footpedal efx,1rack efx, 1 stereo cabinet. 9 Vdc power cable supplied cables supplied cables (Jack stereo) (Jack stereo) (Jack stereo) (Jack stereo) 220V-250mAT MADE IN ITALY SWITCHES LOOPS FOOT SWITCHES...
- Page 10 ® The following example shows you how to connect 2 heads, 1 foot pedal effect, 1 rack effect and one speakers cabinet 16 Ohm. 9Vdc power cable Select 2x16ohm Supplied cables (2 1x12”speaker cabinets) (stereo jack) 220V-250mAT MADE IN ITALY SWITCHES LOOPS FOOT...
-
Page 11: General Information
GENERAL INFORMATION SYNTHESIS EFFECTS The main characteristic of the synsthesis effect (see example) is to modify the signal wave form. (i.e. the distortion effects). This kind of effect should be used between the guitar and the input of your amp, in a standard connection chain. MODULATION EFFECTS The main characteristic of the modulation effect (see example) is to add and/or lay other wave forms to the signal. - Page 12 − In case of damage contact the shop where you bought the appliance. − The appliance must be earthed in conformity to the national previsions in force. For any further information and/or support contact us. Brunetti Marco & C. S.a.s Via Deí Bonomini, 25/27 I - 41100 MODENA - ITALIA Phone number : +39 059 / 243404 http://www.brunetti.it...
