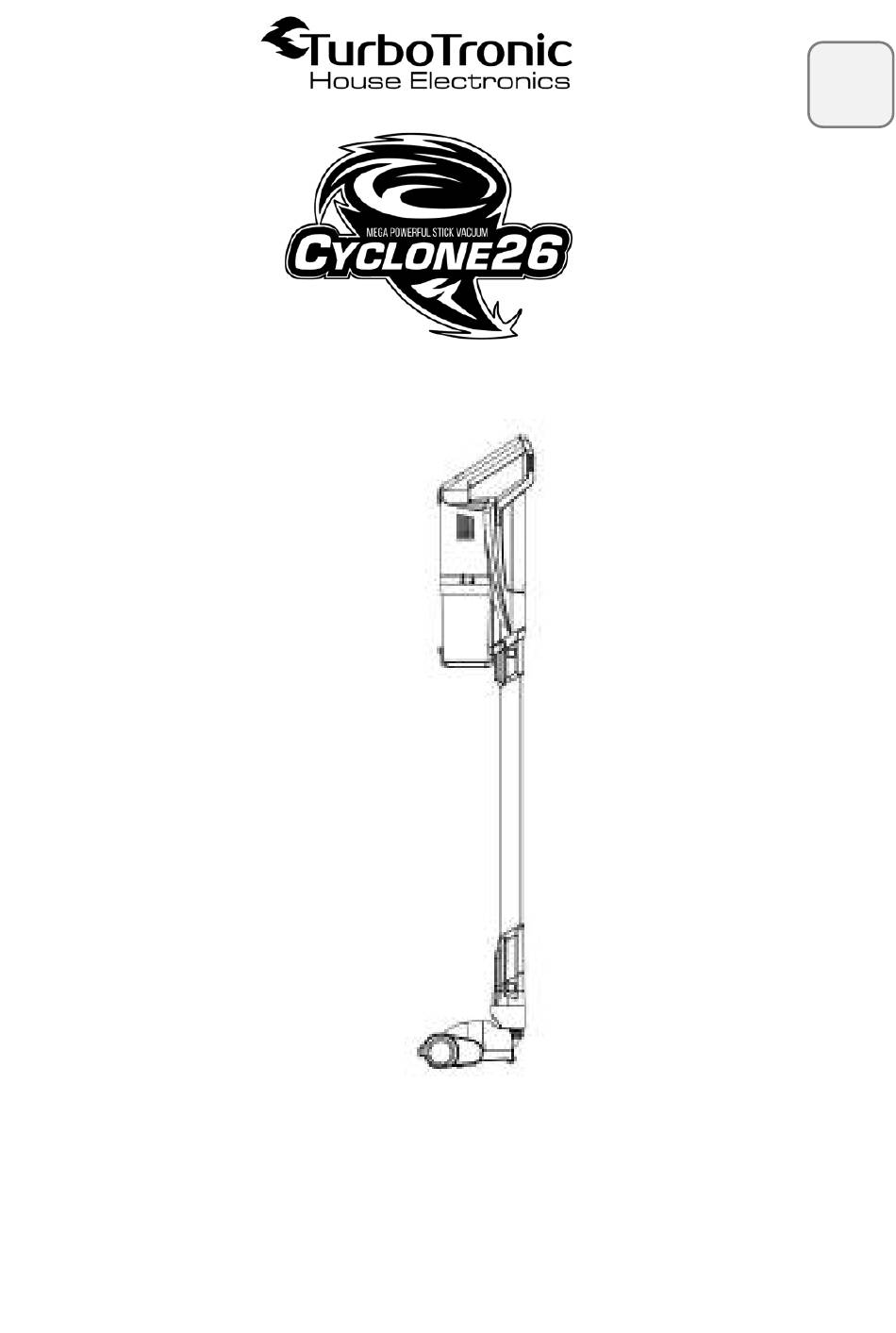

- Page 1 INSTRUCTION MANUAL Cordless cyclonic vacuum cleaner TT-C26 www.zline-world.com...
- Page 2 Technical specifications Dear Customer We congratulate you on the purchase of this TurboTronic practical cordless cyclonic vacuum cleaner, which thanks to the 2 in 1 nozzle, the floor nozzle and the suction pipe, allows you to vacuum even hard-to-reach places easily and wirelessly.
- Page 3 HEPA filter and cyclone insert 2 in 1 Crevice nozzle Battery Release button to remove the battery Screws for wall bracket Charger (mains adapter) Wall bracket Mattress brush Note on the 2 in 1 crevice nozzle: -As a nozzle without a brush, ideal for vacuuming sofa cracks, corners, stairs, etc. -Ideal as a nozzle with a brush for vacuuming furniture, bookshelves, smooth surfaces.
- Page 4 SPECIAL SAFETY INSTRUCTIONS FOR YOUR CYCLE CLEANER -Keep the device away from heaters, fire or flames or cigarettes. • If the air intake opening is blocked or the suction pipe or a nozzle or brush is blocked, you must switch the vacuum cleaner off immediately with the ON / OFF button.
- Page 5 ASSEMBLY OF THE VACUUM CLEANER 1. Insert the filter in the dust container a. Place the cyclone insert in the dust container. Align the pins in the cyclone insert with the cutouts in the dust container. b. Place the HEPA filter in the cyclone insert. 2.
- Page 6 of the motor unit until it clicks into place. Remove suction pipe and floor nozzle To disconnect the intake manifold from the motor unit: press the upper release button ⑷. To remove the floor nozzle from the suction pipe: press the lower unlocking button ⑥.
-
Page 7: Charge The Battery
CHARGE THE BATTERY STEP1 Use only the supplied AC adapter as a charger for the battery. Hang the assembled vacuum cleaner on the wall mounting, the battery is in the motor unit. STEP 2 Insert the charger plug into the device socket Insert the charger plug into an electrical outlet. -
Page 8: Installation
INSTALLATION ・ Charge the battery for 4-5 hours with the charger until four bars light up in the charging status display. Always fully charge the device before using it for the first time and after a long period of non-use. Then pull out the mains plug. - Page 9 4. You can also dean the cyclone insert and the HEPA filter under lukewarm water. Allow both to air dry completely before reinstalling them. 5. Rinse the dust container under lukewarm water, dry it with a soft cloth and then let it air dry completely. 6.
-
Page 10: Problem Solving
PROBLEM SOLVING PROBLEM POSSIBLE CAUSE PROBLEM SOLVING • Charge the battery with Vacuum cleaner -The battery is empty. the charger. doesn't work. -The battery is being charged. • Disconnect the device /Vacuum cleaner from the charger as cannot be switched soon as the charging process is complete. - Page 11 secured with a residual current circuit Please be sure to observe the applicable local ordinances and regulations. • The device must never be operated without supervision, charged or used for other purposes. Use only the accessories supplied with this vacuum cleaner. •...
-
Page 12: Specification
Specification ® Model: TT-C26 Brand: TurboTronic Working voltage: 22.2Vdc Charging time: 4-5 hours Power: 120W Net Weight: 2.7kg Adapter Input Voltage: AC100-240V Production Dimension(L*W*H): 50/60Hz 250*190*1150mm... - Page 13 4. Consequential and incidental damages. ® 5. Defects caused by repair persons not authorized by TurboTronic . These defects include damages caused in the process of shipping, altering, or ®...
