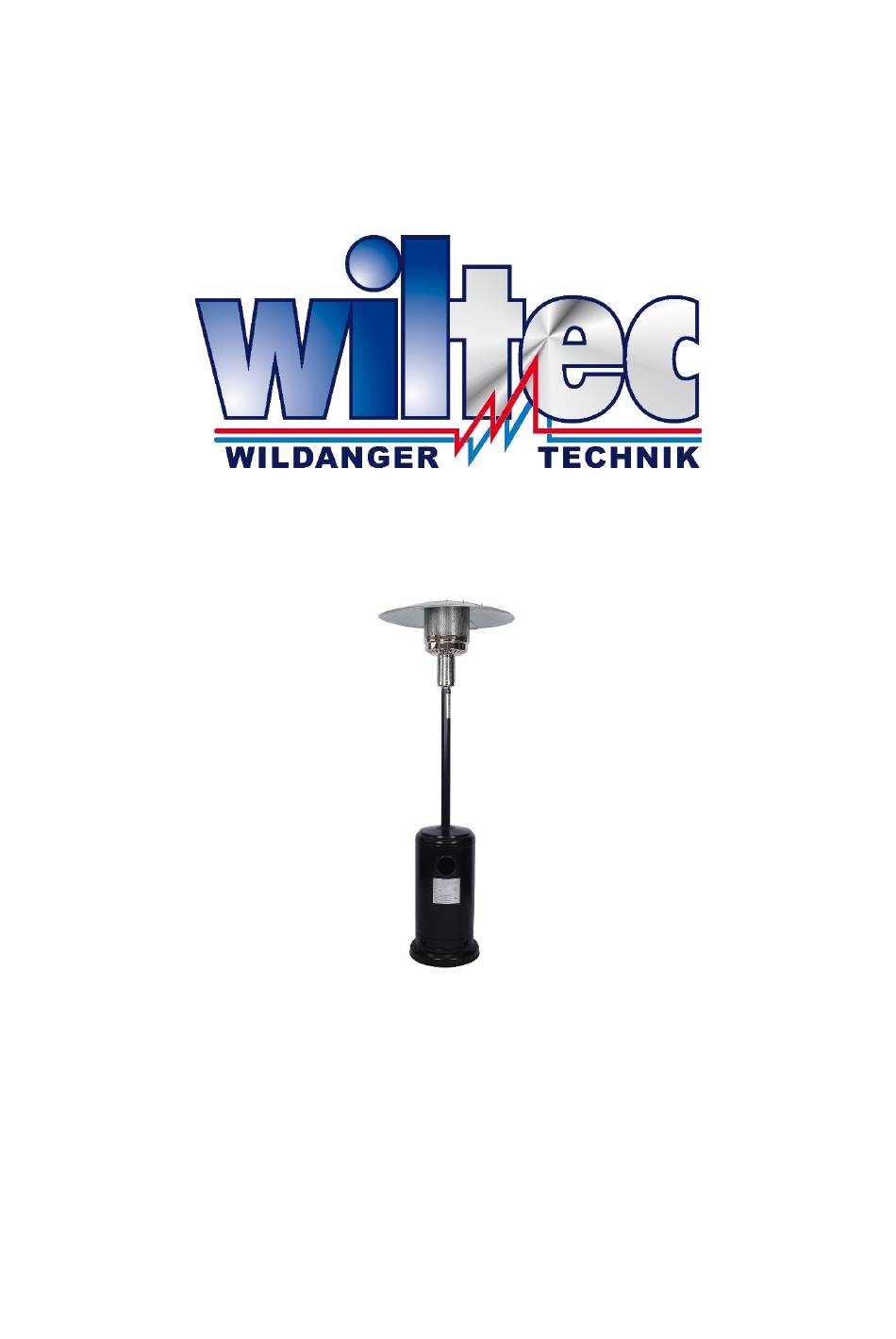

User's manual
Patio Heater 13,000 W
63021
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec 63021
Summary of Contents for WilTec 63021
- Page 1 User’s manual Patio Heater 13,000 W 63021 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 ◦ A 30 mbar pressure reducing valve is used for butane/propane of category I3BP(30). ◦ A 30 mbar pressure reducing valve is used for butane of category I3+(28–30/37). ◦ A 37 mbar pressure reducing valve is used for propane of category I3+(28–30/37). © by WilTec Wildanger Technik GmbH Item 63021 Page 3 http://www.WilTec.de...
- Page 4 Do not use the heater indoors; otherwise, there is a risk of property damage or injury. • Improper assembly, settings, or structural changes can result in property damage or injuries. © by WilTec Wildanger Technik GmbH Item 63021 Page 4 http://www.WilTec.de...
- Page 5 If a leak is found, the gas supply must be switched off again. Tighten any leaky connections, turn on the gas supply and check the tightness again. • Never smoke during a leak test. © by WilTec Wildanger Technik GmbH Item 63021 Page 5 http://www.WilTec.de http://www.aoyue.eu...
- Page 6 Wipe powder-coated surfaces with a soft, damp cloth. Do not clean the heater with flammable or corrosive cleaning agents. • Remove debris from the burner to keep it clean and safe to use. © by WilTec Wildanger Technik GmbH Item 63021 Page 6 http://www.WilTec.de http://www.aoyue.eu...
- Page 7 Outlet pressure of regula- Category Gas type Gas pressure (m㍴) tor (m㍴) Butane 28–30 I3+ (28–30/37) Propane I3B/P (30) Butane, propane, I3B/P (50) their mixtures I3B/P (37) © by WilTec Wildanger Technik GmbH Item 63021 Page 7 http://www.WilTec.de http://www.aoyue.eu 2022-1 http://www.teichtip.de...
- Page 8 The information on the injector, e.g., “1.90,” indicates the injector size, e.g., 1.90 mm. • The gas hose and pressure reducing valve must comply with local regulations. • The device requires a 1.4 m long approved hose. © by WilTec Wildanger Technik GmbH Item 63021 Page 8 http://www.WilTec.de http://www.aoyue.eu 2022-1 http://www.teichtip.de...
- Page 9 Spray bottle of soap solution for leak test Figures № Name Qty. Reflector panel Reflector plate FF Reflector stud Head assembly Gas hose Gas cylinder housing Post Post bracket Stand Wheel kit © by WilTec Wildanger Technik GmbH Item 63021 Page 9 http://www.WilTec.de http://www.aoyue.eu 2022-1 http://www.teichtip.de...
- Page 10 1. Put the post on the top of the post brackets. 2. Use 6 large M6 bolts and counter-nuts to con- nect the post to the post brackets. Tighten the bolts and nuts. © by WilTec Wildanger Technik GmbH Item 63021 Page 10 http://www.WilTec.de http://www.aoyue.eu...
- Page 11 2. Put 6 large flat washers on the 3 reflector spac- ers. Step 6: Fasten the reflector with 3 large flat washers and 3 wing nuts. © by WilTec Wildanger Technik GmbH Item 63021 Page 11 http://www.WilTec.de http://www.aoyue.eu 2022-1...
- Page 12 Properly place pilot light unit. Not in correct location Position properly and retry. If the device shows any errors during assembly or use, do not try to modify it, but contact the seller. © by WilTec Wildanger Technik GmbH Item 63021 Page 12 http://www.WilTec.de http://www.aoyue.eu...
- Page 13 German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the domestic waste.
