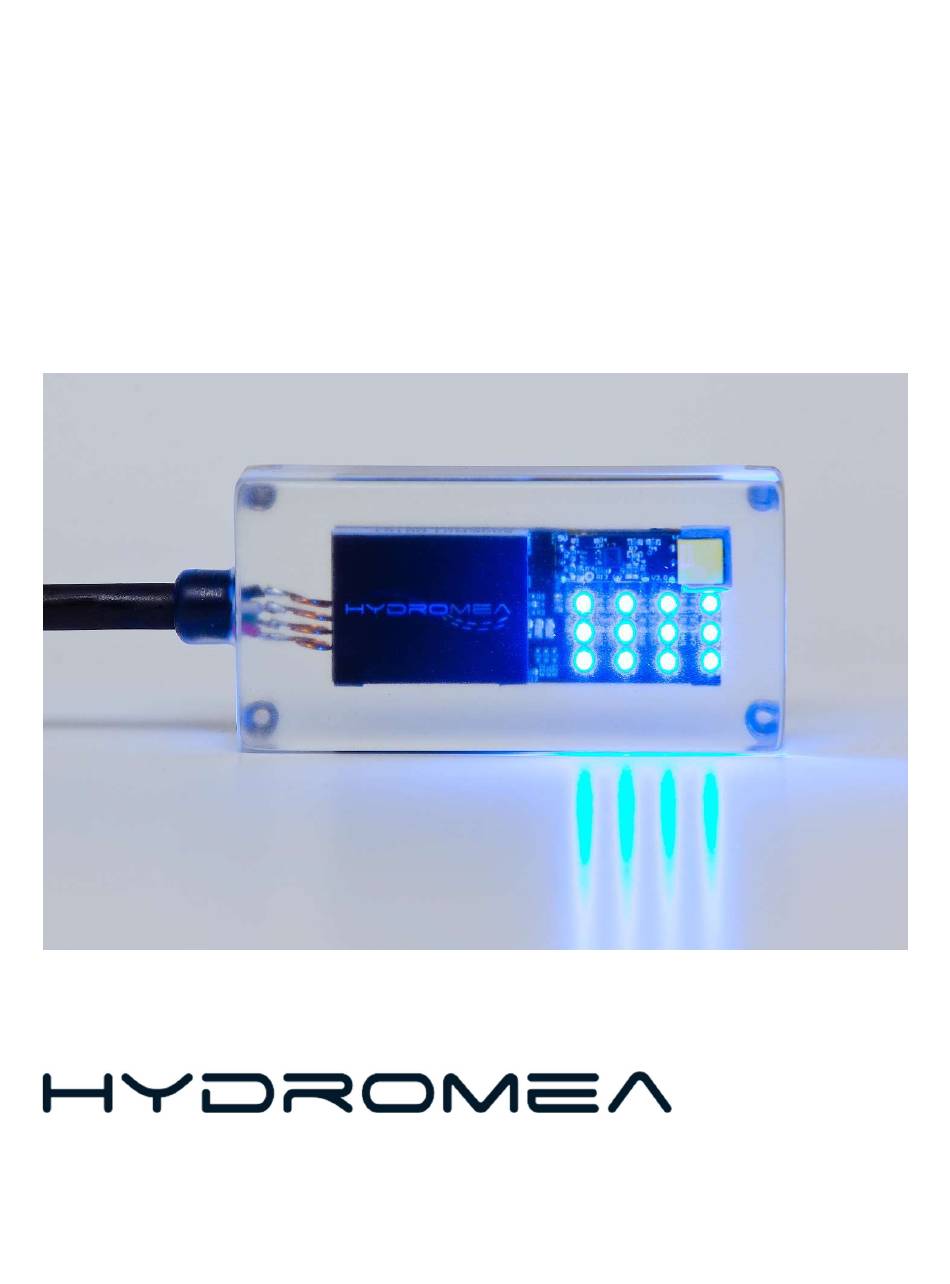

- Page 1 LUMA 500ER a fast, long-range, optical underwater communication system Manual Ver 1.4 3/2022...
-
Page 2: Table Of Contents
Forward error correction ..................6 3.2.6 Packet transmit mode ....................6 3.2.7 Power level ........................ 6 Firmware update ......................6 Maintenance ........................... 8 Installation ..........................8 Electrical and Software Characteristics .................. 9 Mechanical Characteristics ....................10 Errata ............................. 12 LUMA 500ER 3/2022... -
Page 3: Introduction
1 Introduction The LUMA 500ER (Extended Range) is an optical modem for fast, reliable underwater communication. Each LUMA 500ER is a full transceiver and thus capable of half-duplex communication (transmission and reception). 2 Operation 2.1 Setup Attach both modems to their respective host systems using matching female SubConn Micro 6 connectors such as MCIL6F, MCBH6F, MCOM6F, MCPBOF6F or MCDC6F. -
Page 4: Connecting The Modem
Plug in the LUMA modem with a serial adapter cable into a serial port, or via a USB-to- serial converter. The power/data cable-box supplied by Hydromea provides USB-to- serial conversion. Connect a power supply to the cable (12 – 36 V) -
Page 5: Communication Settings
The default value is 64, which is a good compromise. 3.2.4 Data wait time This parameter specifies the maximum time in microseconds that the modem will wait for additional data before sending a packet before the maximum packet size is reached. Larger 3/2022 LUMA 500ER... -
Page 6: Forward Error Correction
confirm that communication with the modem is established as described in 3.1 Connecting the modem turn off the power supply to the modem (or unplug the SubConn connector, but leave the serial dongle in the USB port) LUMA 500ER 3/2022... - Page 7 click "Start application". You should now be able to connect to the modem again as described above. Verify that the modem settings are still correct - they should carry across firmware updates in general, but bigger updates may invalidate the settings and revert to factory defaults. 3/2022 LUMA 500ER...
-
Page 8: Maintenance
For maintenance details regarding the connector follow SeaConn's instructions. 5 Installation The modem offers four M5-threaded holes to attach it to a surface. Please ensure that there are washers between the modem and the attachment surface. Avoid over-tightening the attachment screws LUMA 500ER 3/2022... -
Page 9: Electrical And Software Characteristics
1: Supply voltage (Vs) 2: GND 3: RS232 RX / RS485 D+ 4: RS232 TX / RS485 D- 5: n/c 6: n/c Error correction Software selectable: Forward error correction, overhead 2:1 Forward error correction, overhead 1,5:1 Burst error correction 3/2022 LUMA 500ER... -
Page 10: Mechanical Characteristics
RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL HYDROMEA BE LIABLE FOR ANY DIRECT, INDIRECT, ONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF HYDROMEA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. - Page 11 3/2022 LUMA 500ER...
-
Page 12: Errata
Added information on firmware update Updated links to LumaConf 28. 12. 2021 Updated download link for LumaConf 16.2.2022 Added additional clarifications on selectable values to 3.2.3 and 3.2.7 11.3.2022 Added chapter 4 Maintenance LUMA 500ER 3/2022...
