IFO SPIRA WC
Installation and Maintenance Instructions
I00422_Jan 22
1300 369 273 | info@enware.com.au
enware.com.au
The more
stars the more
water efficient
WATER RATING
www.waterrating.gov.au
3.3
4.4 L per full flush / 3.1 L per half flush
AS1172-1
Licence No. 0021
WM-040187
IFO/
litres
average flush

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFO SPIRA WC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for enware IFO SPIRA WC

Summary of Contents for enware IFO SPIRA WC

  • Page 1 Installation and Maintenance Instructions The more stars the more water efficient WATER RATING www.waterrating.gov.au litres average flush 4.4 L per full flush / 3.1 L per half flush AS1172-1 Licence No. 0021 WM-040187 IFO/ I00422_Jan 22 1300 369 273 | info@enware.com.au enware.com.au...

  • Page 2: Table Of Contents

    Page Product Description Contents Installation Floor Mounting Method Installation - Accessories Access to Cistern Internal Components Maintenance Cleaning Troubleshooting Spare Parts Warranty Call 1300 369 273 www.enware.com.au...

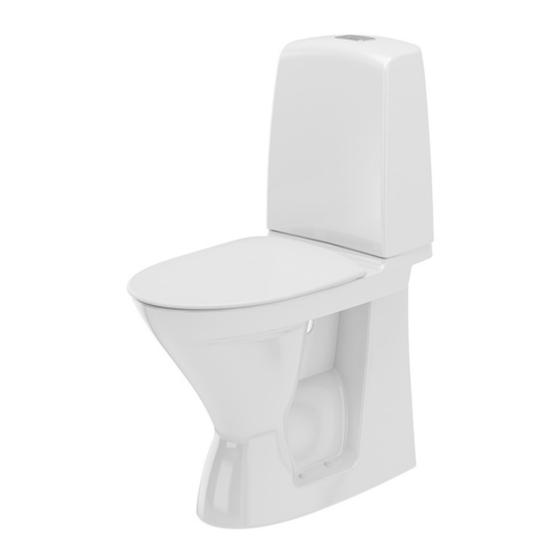

  • Page 3 Ifo Spira Raised Height S-Trap CARE620 IFO6261 CARE6261 CARE621 Bottom Inlet 1/2” BSP Male Pan outlet FRONT VIEW * See WC Set Out www.enware.com.au Call 1300 369 273...

  • Page 4: Contents

    Installations not complying with AS/NZS 3500, the PCA or the manufacturer’s instructions may void the product and performance warranty provisions. Enware Australia advises:1. Due to ongoing Research and Development, specifications may change without notice; 2. Component specifications may change on some export models.

  • Page 5: Installation

    1428.1 Set Out / Disabled In accordance with AS 1428.1:2021 Performance Based Solution Pan outlet 800 +/-10 Institutional / Health Set Out Set out typical for hospitals which allows for substantial air circulation and free coving Pan outlet www.enware.com.au Call 1300 369 273...
  • Page 6 The minimum to still allow air circulation behind the WC pan Minimum clearance Pan outlet 45 ° Corner Set Up MINIMUM MINIMUM MINIMUM MINIMUM Finished Wall Finished Wall With no arm support system With arm support system Call 1300 369 273 www.enware.com.au...

  • Page 7: Floor Mounting Method

    • Bracket fixing (Optional - IFO98016 Bracket sold separately.) If toilet has support arms or may have support arms in future (raised height toilet models only), use: • Pan Screw fixing; or • Bracket fixing (Optional - IFO98016 Bracket sold separately.) www.enware.com.au Call 1300 369 273...
  • Page 8 Install pan into position. Let the silicone sealant dry for at least 24 hours. Use white blind cover plugs supplied to plug the screw holes on the pan. Call 1300 369 273 www.enware.com.au...
  • Page 9 5. Fix the pan in place with pan screws. Hand tighten the screws, but do not over-tighten. (Over- 60°-65° tightening screws will cause the ceramic to crack.) 6. Attach white screw caps (supplied) onto the heads of fixing screws. www.enware.com.au Call 1300 369 273...
  • Page 10 6. Fix the bracket onto floor using the threaded rods and matching washers and nuts. 7. Cut off any excess threaded rod. Bracket Position S-Trap Waste Outlet Bolt hole positions to x bracket onto oor Call 1300 369 273 www.enware.com.au...
  • Page 11 4x 12Gx50mm do not over-tighten. (Over-tightening screws will Screws cause the ceramic to crack.) (Drill pilot holes on bracket with 12. Attach white screw caps (supplied) onto the 3 mm drill) heads of fixing screws. www.enware.com.au Call 1300 369 273...
  • Page 12 Apply silicone sealant around the rear cover to create a thorough seal between the rear cover, pan and floor. Ensure no gap is left that can let any moisture to get through inside the base of the pan. Do not use the toilet until the silicone bed has cured. Call 1300 369 273 www.enware.com.au...

  • Page 13: Installation - Accessories

    Cover Screw Rod by opening the flush button and releasing the tablet in the blue Cover Screw Max. 1 Rod, as illustrated. The tablet produces a fresh odour and cleaning effect on the whole bowl and colour. www.enware.com.au Call 1300 369 273...

  • Page 14: Access To Cistern Internal Components

    The internal components of the cistern can be accessed by first lifting the flush button, unscrewing the Cover Screw Rod, then unscrewing the cistern fixing screws, and lifting the ceramic shroud. Call 1300 369 273 www.enware.com.au...

  • Page 15: Maintenance

    Flush Volume The flush volume is fixed at 4.4L for full flush and 3.1L for half flush. Flush volume is not adjustable on this product. www.enware.com.au Call 1300 369 273...
  • Page 16 14 in reverse order. The screws for the cistern mounting must be tightened alternately to a maximum torque of 2.5 Nm. The cover screw should be tightened to a maximum torque of 1 Nm. Call 1300 369 273 www.enware.com.au...

  • Page 17: Cleaning

    Water leaks at water inlet Inlet connection is not Use loose nut extension fitting connection to cistern sealed properly supplied (IFOS-009) on the inlet connection. For further assistance, call Enware on 1300 369 273. www.enware.com.au Call 1300 369 273...

  • Page 18: Spare Parts

    Spira cistern gasket foam seal IFO97230 Replacement Nurse Call Switch IFO80011 Spreader - Spira IFO98512 Toilet Roll Holder for IFO98125 (each) IFO96348 Loosenut Extension 1/2” BSP for Ifo Cistern Key with Hex and T25 Torx IFO91960 IFOS-009 inlet connection Call 1300 369 273 www.enware.com.au...
  • Page 19 All notifications and accompanying forms must be sent to us marked for the attention of the Enware Except as provided or referred to in this document, Australia Pty Limited, 9 Endeavour Road, Caringbah we accept no other or further liability for any NSW 2229.
  • Page 20 ADDRESS: 9 Endeavour Rd Caringbah NSW 2229 Australia POSTAL ADDRESS: P.O. Box 2545, Taren Point NSW 2229 Australia 1300 369 273 (AUS) WWW.ENWARE.COM.AU INFO@ENWARE.COM.AU ABN 23 003 988 314...
  • Page 21 Enware Australia advises: 1. Due to ongoing Research and Development, specifications may change without notice. 2. Component specifications may change on some export models. 3. Refer to warranty statement for warranty details - www.enware.com.au/warranty I00272_Jan 22 1300 369 273 | info@enware.com.au...
  • Page 22 fi ed in addi on to standard hinge fixing kit Use the cylinder nuts and spring washers supplied with support arms, do not use standard fixing nuts and washers for toilet seat hinge Call 1300 369 273 www.enware.com.au...
  • Page 23 5 mm Support Arm Friction Adjustment T20 Torx Toilet roll holder Toilet Roll Holder - Assembly/Diassembly www.enware.com.au Call 1300 369 273...
  • Page 24 Cylinder nuts M6 for B84/ B92 hinge (Pressalit Dania seats) IFO98125-FIXKIT-2 ADDRESS: 9 Endeavour Rd Caringbah NSW 2229 Australia POSTAL ADDRESS: P.O. Box 2545, Taren Point NSW 2229 Australia PHONE: +61 2 8556 4000 1300 369 273 (AUS) WWW.ENWARE.COM.AU INFO@ENWARE.COM.AU ABN 23 003 988 314...
