Component Removal
COMPONENT REMOVAL

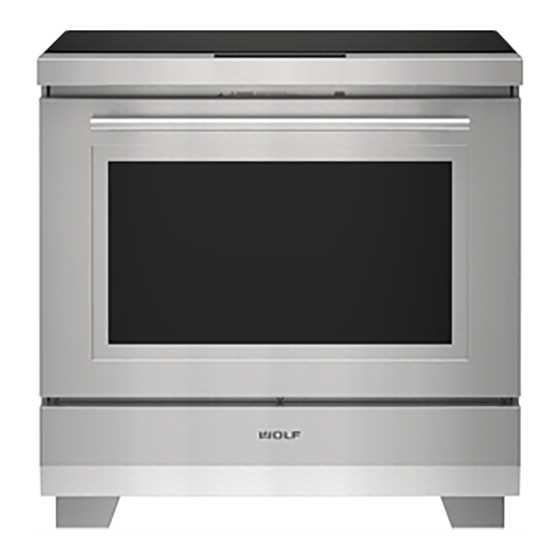

This section explains how to remove components from a Wolf Induction Range (IR) Series. Depending on which
component you are going to remove, you may have to remove other components first. Refer to the appropriate sec-
tion in this manual that explains how to remove those various components. When reassembling, just reverse the
steps that were used to remove the components.
NOTE: Before attempting to access or remove any components from a Wolf appliance, take note of the WARN-
INGS and CAUTIONS below.
• TO AVOID ELECTRIC SHOCK, POWER TO THE UNIT MUST BE DISCONNECTED WHENEVER SERVICING
AND/OR ACCESSING COMPONENTS.
• KEEP IN MIND THAT UNIT SURFACES AND COMPONENTS GET HOT DURING USE OF THE APPLIANCE.
• PULLING A UNIT FROM ITS INSTALLATION SHOULD ONLY BE PERFORMED BY A CERTIFIED SERVICE
TECHNICIAN OR INSTALLER.
• When working on the induction range and components, be careful when handling sheet metal parts. They
may have sharp edges.
Tools Needed
6-Lobe Torx type driver size T-15
6-Lobe Torx type driver size T-20
6-Lobe Torx type driver size T-25
Phillips screw driver
Small flat blade screw driver
Flat blade screw driver
Needle nose pliers
Putty knife
5/32" Allen wrench
5/8" Box wrench
#827176 - Revision A.1 - December, 2016
Induction Range (IR) Series
Induction Range (IR) Series
3-2
