  • Page 1 VERTIC 2 Fortissimo user guide Version 12/2018  330Kg / 52 stones...
  • Page 2 VERTIC 2 Fortissimo user guide Version 12/2018...
  • Page 3: Table Of Contents

    Information is regularly updated in the latest instructions versions. This can not engage the responsibility of HMS-VILGO in any way. Warning : The pics on this leaflet are not under contract. Therefore, HMS-VILGO has the right to change the products inside anytime. TABLE OF CONTENTS ………………………………………………………………………… 1. PREAMBLE page 4 …………………………………………………………………...
  • Page 4: Preamble

    Only entitled staff who has read and understood these complete instructions can use Vertic 2 Fortissimo. Always use Vertic 2 Fortissimo with a person who can belay the patient in case of blackout of the patient or failure of the hoist.
  • Page 5: General Description

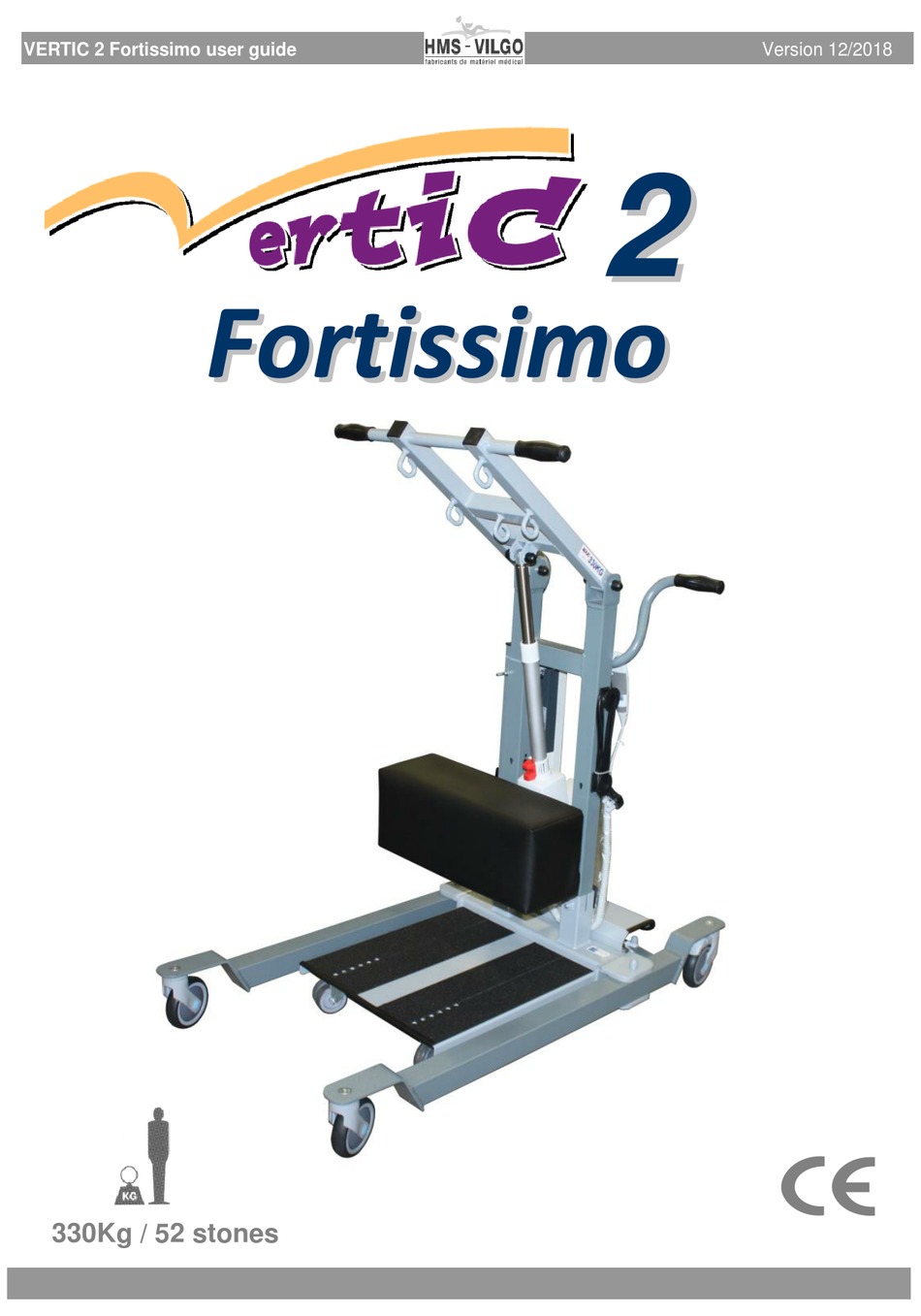

    VERTIC 2 Fortissimo user guide Version 12/2018 2.2. GENERAL DESCRIPTION Patient handles Driving handles Arms Control box Electric actuator Legs rest Mast Mast support Side foot Electric actuator  wheels  5in wheels with brake Foot rest Side foot 2.3. TECHNICAL CHARACTERISTICS...
  • Page 6: Dimensional Characteristics

    VERTIC 2 Fortissimo user guide Version 12/2018 2.4. DIMENSIONAL CHARACTERISTICS Dimensionnal characteristics of the base Maximum external length 49.6 in Maximum internal length 33.8 in Minimal internal width 21.6 in Minimal external width 27.4 in Maximum internal width 33.8 in Maximum external width 39.4 in...
  • Page 7: Labelling

    It also gives to you the security loading charge for a good use. There are 4 labels: One on the basis of the Vertic 2 Fortissimo, one on the electric actuator, one on the control box and one on the remote control.
  • Page 8: Vertic 2 Fortissimo Assembling

    (x1) 3.2. FIRST USE Remove the fasteners and drop on the ground the Vertic 2 Fortissimo. All connections are made in factory and the battery delivered with it is fully charged so that you can start using the hoist immediately. Check the emergency stop of control box is unlock, and try it without a patient to get...
  • Page 9: Recommended Checks

    VERTIC 2 Fortissimo user guide Version 12/2018 Hoists are conformed to EN 10 535 standard which means that they can run 11 000 complete cycles under the conditions of uses they are designed for. Please, carefully consider how important it is to evenly check and maintain it in order to make sure that it is used under the standard specifications and under ours recommendations.
  • Page 10 VERTIC 2 Fortissimo user guide Version 12/2018 This table below, indicates if the replacement of axis and spare parts is necessary, in function of the number of runs a day. Oldness of the hoist (years) number of runs / a day...
  • Page 11: Maintenance Book

    VERTIC 2 Fortissimo user guide Version 12/2018 HOIST REFERENCE: Serial number : Date of 1st use : DATE MAINTENANCE AND QUALITY CHECKING NAME & APPROVALS Number of cycles evaluated...
  • Page 12: Spare Parts List

    à 10 000 cycles LA34 actuator 10 000N (course 250) A501530 CBJC Control box A501449 BAJ1 Battery A000906 LA 28 Vertic 2 fortissimo actuator A501544 2 functions remote control for CBJC A501464 HH 12x70 screw A501250 mast / cross piece connection ✓...
  • Page 13: Use

    VERTIC 2 Fortissimo user guide Version 12/2018 4. USE 4.1. PLUGGING Plugging to CBJC control box : Actuator connection: entry n°1 Main cable connection Remote control connection Side foot Electric actuator: entry n°2 Locking clip set up : actuator cable / control Actuator connection (réf.
  • Page 14 VERTIC 2 Fortissimo user guide Version 12/2018 4.2. VERTIC 2 FORTISSIMO USE 4.2.1 Sling installation and operating : Reminder: Sling is adjustable. User is responsible for adjusting it in order to not hurt the patient. Vertic2 is delivered with its sling. See the user instruction bellow.
  • Page 15: Control Box Operating, Battery Charge

    VERTIC 2 Fortissimo user guide Version 12/2018 4.3. SECURITE crushing safety: Vertic 2 Fortissimo runs with a single-acting actuator. Any obstacle on its way will automatically stop its going-down. Emergency stop : the Vertic 2 Fortissimo emergency stop button is located on the control box.
  • Page 16: Storage Instructions

    Chassis : Check the brake of the back wheels. Look at the global geometry on the Vertic 2 Fortissimo (no bent item). Make sure that the wheels are well positioned on the ground. Make sure that there is no play between the support beam and the pole.
  • Page 17: Annual Maintenance

    5.3 WARRANTY Your Vertic 2 Fortissimo hoist has its own serial number. This number is on a label on the chassis and is repeated on every electrical part. To make a claim using the warranty, you need to return the faulty part, with its serial number label to your retailer who will contact us.
  • Page 18 VERTIC 2 Fortissimo user guide Version 12/2018...
  • Page 19 VERTIC 2 Fortissimo user guide Version 12/2018...
  • Page 20 VERTIC 2 Fortissimo user guide Version 12/2018 Cachet distributeur www.hms-vilgo.com Site de Lille : Parc Eurasanté – 243 Rue Allendé Site de Bergerac : Rte de Sainte Alvère - Creysse BP 212 59120 LOOS LEZ LILLE 24102 BERGERAC Cedex Tél : +33 (0)3 20 84 81 50 – Fax : + 33 (0)3 20 59 58 08...
