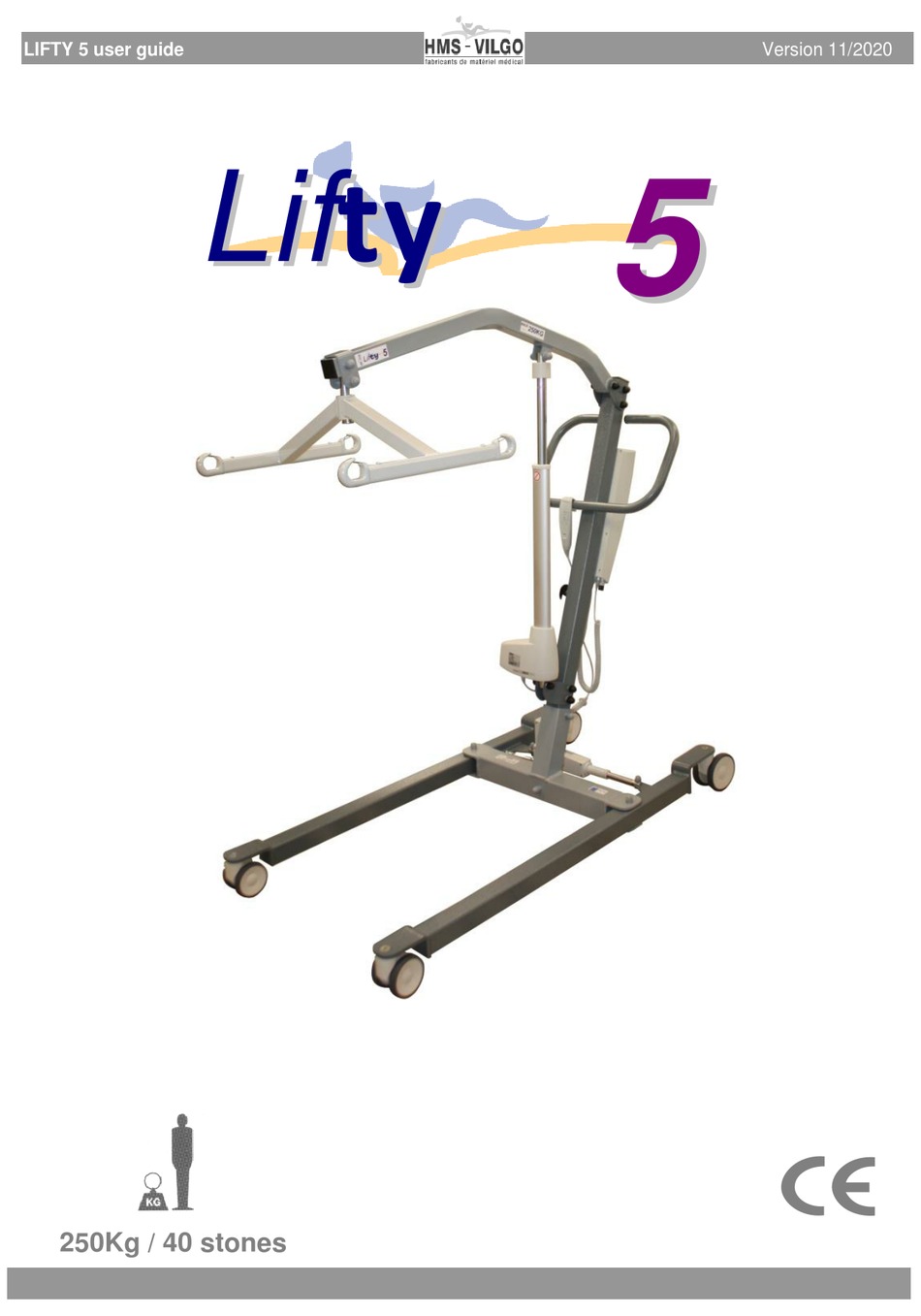

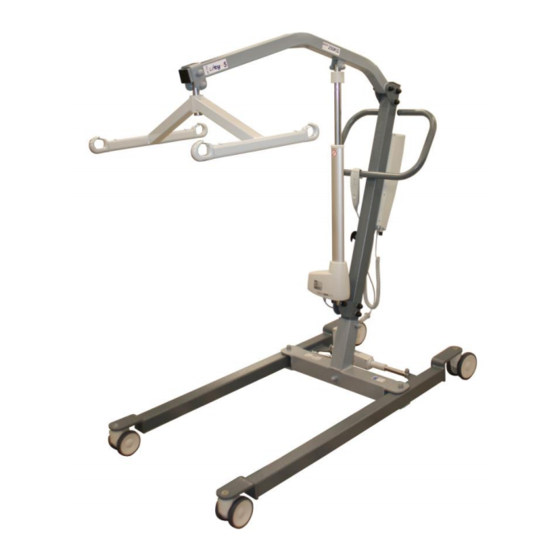

LIFTY 5 user guide
Version 11/2020
t
y
L
i
f
t
y
L
i
f
5
5
250Kg / 40 stones
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIFTY 5 and is the answer not in the manual?

Questions and answers

Related Manuals for HMS-VILGO LIFTY 5

Summary of Contents for HMS-VILGO LIFTY 5

  • Page 1 LIFTY 5 user guide Version 11/2020  250Kg / 40 stones...
  • Page 2 LIFTY 5 user guide Version 11/2020...

  • Page 3: Table Of Contents

    Information is regularly updated in the latest instructions versions. This can not engage the responsibility of HMS-VILGO in any way. Warning : The pics on this leaflet are not under contract. Therefore, HMS-VILGO has the right to change the products inside anytime. TABLE OF CONTENTS ……………………………………………………………………… 1. PREAMBLE page 4 ……………………………………………………………………...

  • Page 4: Preamble

    Use Lifty5 following the maintenance instructions (see Lifty5 maintenance paragraph). If you have any doubt about Lifty5 operating, please call HMS-VILGO After Sales Service for a diagnostic before using the hoist on a patient. HMS-VILGO will not be responsible for damage if these warnings are not followed.
  • Page 5 LIFTY 5 user guide Version 11/2020 2.2. DESCRIPTION GENERALE Driving handles Support beam Beam Control box Pole Side foot Electric actuator Electric actuator  5 in wheels with brake  4 in wheels Side foot 2.3. CARACTERISTIQUES TECHNIQUES Materials :...

  • Page 6: Dimensional Characteristics

    LIFTY 5 user guide Version 11/2020 2.4. DIMENSIONAL CHARACTERISTICS Dimensional characteristics of the base Maximum external length 55 in Maximum internal length 35.8 in Minimal internal width : 22.8 in Minimal external width : 29.5 in Maximum internal width : 45.3 in...

  • Page 7: Labelling

    There are 3 labels : One on the basis of the Lifty5, one on the electric actuator, and one on the control box. Standards : By this label, HMS-VILGO ensures that Lifty5 hoist is conformed to European directive 89/336 referring to electromagnetic compatibility and to European directive 93/42 referring to medical devices.

  • Page 8: Lifty5 Assembling

    LIFTY 5 user guide Version 11/2020 3. LIFTY5 ASSEMBLING 3.1. PACKAGE CONTENTS The following parts are in the package: 1 Lifty5 hoist : 1 box containing: Control box (x1) Fixing screw Spanner 6 section 5 CHC 6x80 (x2) (x1) Anti-pulling up...

  • Page 9: Recommended Checks

    LIFTY 5 user guide Version 11/2020 Hoists are conformed to EN 10 535 standard which means that they can run 11 000 complete cycles under the conditions of uses they are designed for. Please, carefully consider how important it is to evenly check and maintain it in order to make sure that it is used under the standard specifications and under ours recommendations.

  • Page 10: Spare Parts List

    LIFTY 5 user guide Version 11/2020 This table below, indicates if the replacement of actuator, axis and spare parts is necessary, in function of the number of runs a day. Oldness of the hoist (years) number of runs / a day...
  • Page 11 LIFTY 5 user guide Version 11/2020 HOIST REFERENCE: Serial number : Serial number : Serial number : DATE MAINTENANCE AND QUALITY CHECKING NAME & APPROVALS Number of cycles evaluated...
  • Page 12 LIFTY 5 user guide Version 11/2020 Part Description Item code Location Replacement After 11 000 cycles Vérin de levée Lifty5-6 A501359 LA44 - 12000N Vérin écarteur pieds Lifty5-6 A501360 LA31 - Boîtier de contrôle Lifty5-6 A501361 CBJH1 Télécommande Lifty5-6 A501362 ✓...

  • Page 13: Lifty5 Assembling

    LIFTY 5 user guide Version 11/2020 3.2. LIFTY5 ASSEMBLING  Plug main actuator cable.   Block the actuator cable (see chap.3.3).  Plug the remote control and the actuators cables in the  control box. Put the anti-pulling up hood in placing the cables through the opening.

  • Page 14: First Use

    LIFTY 5 user guide Version 11/2020 3.3. BRANCHEMENTS 3.3.1 Plugging/blocking the actuator cable 1/ The 3 notches of this 2/ Put the cable plug in 3/ Grip the notches and turn ring show that the griping position and lean on it the ring from left to the right.

  • Page 15: Lifty5 Use

    A and B straps at the same hole level (same colour). Act the same way for C and D straps. Cautions : - This sling is designed for HMS-VILGO hoists only. - Always hang-up the 4 straps at the same level.

  • Page 16: Safety

    LIFTY 5 user guide Version 11/2020 4.3. SAFETY crushing safety: Lifty5 runs with a single-acting actuator. Any obstacle on its way will automatically stop its going-down. Emergency stop : the Lifty5 emergency stop button is located on the control box.

  • Page 17: Storage Instructions

    LIFTY 5 user guide Version 11/2020 Warning, the loading of the batteries works only if the emergency button is out of power (put it on the position ‘on’ to load the batteries). Main actuator connection Emergency stop Connection feet actuator...

  • Page 18: Annual Maintenance

    LIFTY 5 user guide Version 11/2020 Cleaning of the Lifty5: Before any intervention on the Lifty5, disconnect it from the power and take out the control box. Follow this cleaning protocol: 1- Impregnate a clean non-weaved tissue with WARNING: an appropriate cleaning solution (Anios - Avoid abrupt cleaning and rinsing.
  • Page 19 LIFTY 5 user guide Version 11/2020...
  • Page 20 LIFTY 5 user guide Version 11/2020 Distributor stamp Site de Lille : Parc Eurasanté – 243 Rue Allendé Site de Beregrac : Rte de Sainte Alvère - Creysse BP 212 59120 LOOS LEZ LILLE 24102 BERGERAC Cedex Tél : +33 (0)3 20 84 81 50 – Fax : + 33 (0)3 20 59 58 08...
