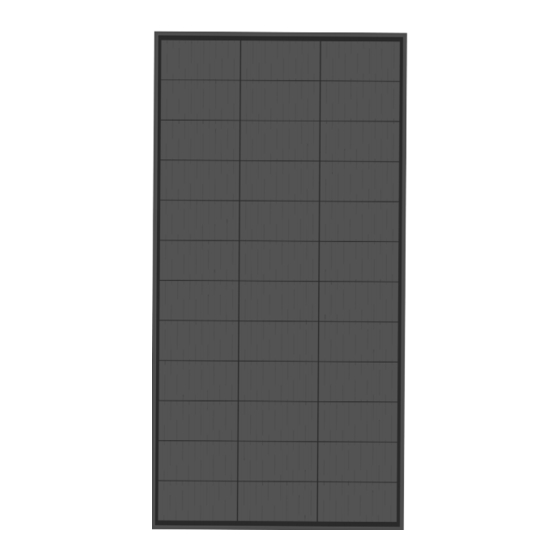

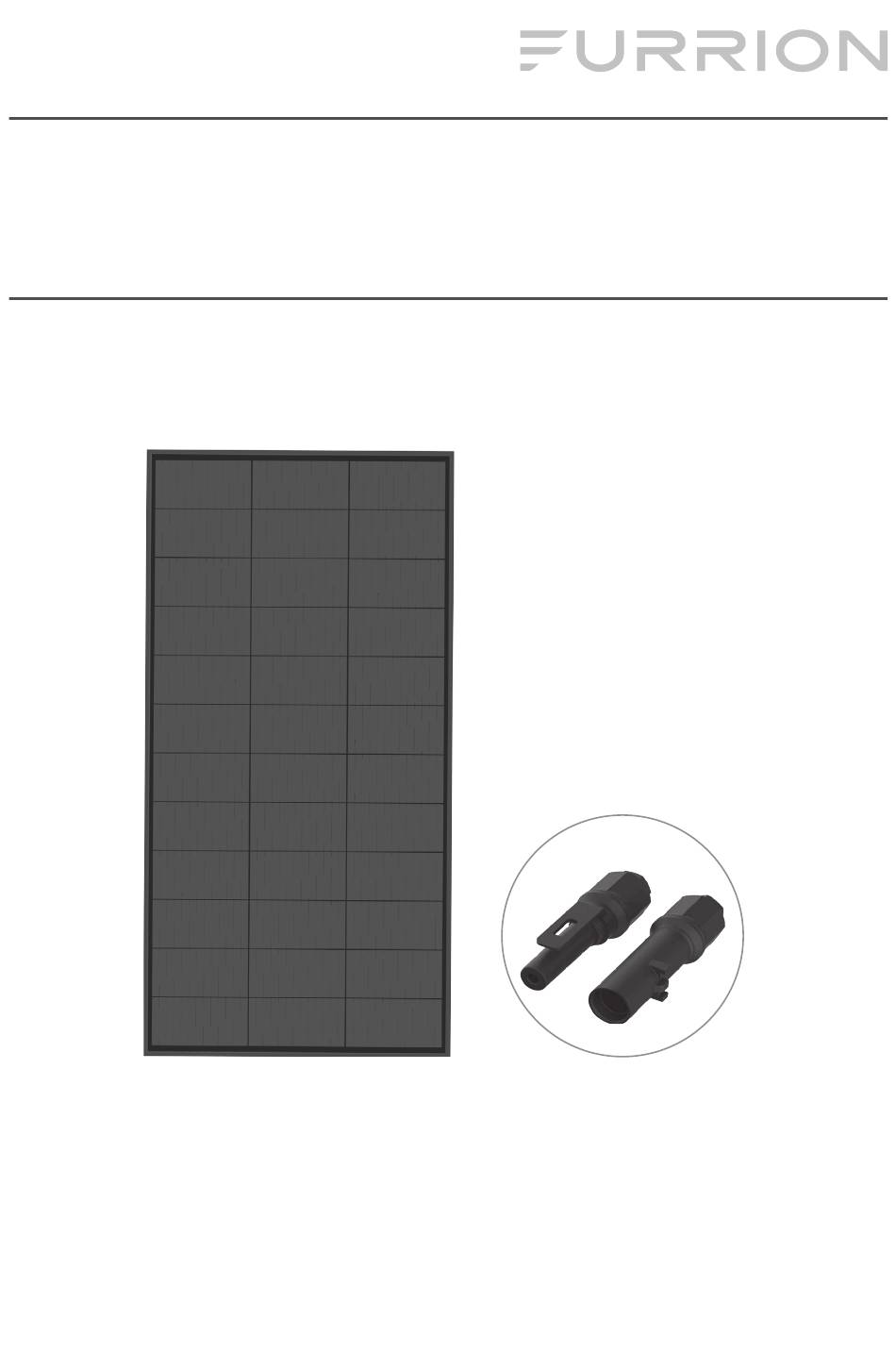

- Page 1 165W RIGID SOLAR PANEL MODEL: FSFP16MW-BL USER MANUAL * Product picture for reference only...
- Page 2 Thank you for purchasing this Furrion® product. Before operating or installing, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.
-
Page 3: Table Of Contents
CONTENTS CONTENTS ..........................2 EXPLANATION OF SYMBOLS..................3 PURPOSE OF THIS GUIDE ....................3 SAFETY PRECAUTIONS ....................4 General Safety Precautions ........................4 Safety Precautions When Installing a Solar Photovoltaic System ........4 MECHANICAL INSTALLATION ..................5 General Installation Notes ........................5 Selecting the Mounting Location .......................5 Selecting the Proper Mounting Structure and Hardware .............6 Mounting Methods .............................6 Secure the Solar Panel to the RV Roof ...................7... -
Page 4: Explanation Of Symbols
This guide contains information regarding the installation and safe handling of Furrion photovoltaic modules. All instructions must be read and understood before attempting installation. If there are any questions, please contact your dealer or Furrion for further information. -
Page 5: Safety Precautions
Safety Precautions When Installing a Solar Photovoltaic System – Solar modules produce electrical energy when exposed to sunlight. – Furrion solar modules are intended to be connected in series. However, if modules or series combination of modules are wired in parallel make sure that each... -
Page 6: Mechanical Installation
module or series combination of modules has the same rated voltage. – Keep children well away from the system while transporting and installing mechanical and electrical components. – Completely cover all modules with an opaque material during installation to prevent electricity from being generated. –... -
Page 7: Selecting The Proper Mounting Structure And Hardware
Mounting Methods – The module mounting structure must be made of durable, corrosion-resistant and UV- resistant materials. Furrion recommends Z Bracket Mounting Kit, Furrion model number C-FSFP16MW-A02. – In regions with heavy snowfall in winter, select the height of the mounting system so that the lowest edge of the module is not covered by snow for any length of time. -
Page 8: Secure The Solar Panel To The Rv Roof
ELECTRICAL CONNECTION To power the Solar Photovoltaic System properly, the following Furrion components are also required except the solar panel. Please contact Furrion authorized dealer to purchase the product(s) as required and refer to the individual instruction manual that comes with the product to set up the system. - Page 9 It is not recommended to use modules with different configurations (grounding, wiring) in the same system. – Solar modules must be connected in series when using a Furrion charge controller. – The current, voltage, and power characteristics of the solar panel(s) will vary based on environmental criteria including temperature and solar irradiance.
-
Page 10: Shutting Down The System
The system should now be out of operation and can be dismantled. In doing so, observe all the safety instructions as applicable to installation. MAINTENANCE Maintaining Solar Panel To ensure optimum module performance, Furrion recommends the following maintenance measures: – Clean the glass surface of the solar panel when required. Always use clean water and a soft sponge or cloth for cleaning. -
Page 11: Specifications
SPECIFICATIONS Furrion solar modules are made of monocrystalline solar cells in series with high efficiency, high transmission rate, low iron tempered glass, anti-aging EVA, high flame resistant TPT laminate, and anodized aluminum alloy frames. They are designed for easy installation, extended longevity, and resistance to damage incurred by high wind or hail. - Page 12 ● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-800-789-3341 ● Email: support@furrion.com ©2007-2021 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. For Patent Info: www.furrion.com/pages/patents FURRION.COM...
