Wfly ET08 Manual

WFLY
Shenzhen WFLY Technology Development Co.,Ltd
ET08 Summar y Manual
Scan to add WFLY official Wechat
Enter "ET08 manual" to download the detailed specification!
For after-sale service,
please visit WFLY official website at www.wflysz.com

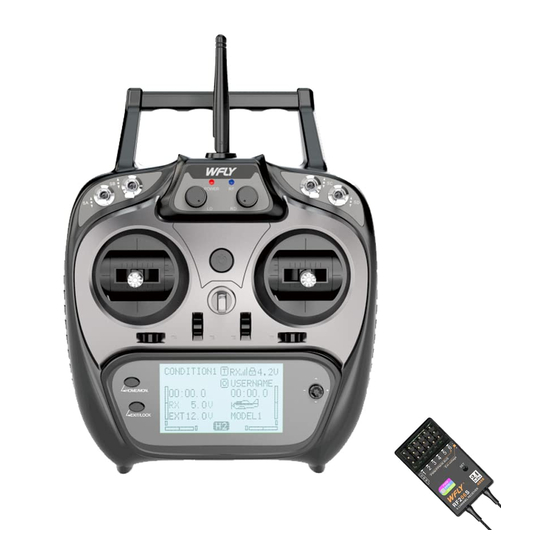

PARTS NAME AND FUNCTION INTRODUCTION
Carry Handle
Power LED
SB Switch Block
SA Switch Block
LD Rotary Knob
Power Button
J3
Stick
J4
Trim 3
Trim 4
HOME/MON.
EXIT/LOCK
Display Screen
TRAINER
Safety Items
Beginners should pay particular attention to the following safety precautions! Please
read carefully!
No fly when user is in poor health condition such as fatigue and drunkenness.
No fly in bad weather day such as rain, strong wind or at night, etc.
No fly near high voltage wires, communication base stations, government secret zone
or public places where crowds gathered.
No fly in airports and other places where fly is forbidden.
Before flying, test the equipment, check whether the transceiver system and the
aircraft are normal;
When flying, make the interface of transmitter in the standby interface in case of the
parameters changed by mistake;
After flying, turn off the receiver primarily before the transmitter turn off to protect
people from rotary of engine or motor caused by fail-safe function
The sequence of power on and off of transmitter and receiver!
*Power on:
Firstly turn on the transmitter (ensuring the minimum position of throttle stick
),Secondly Turn on the receiver
*Power off:
Firstly turn off the receiver, Secondly turn off the transmitter.
Use guaranteed and special charger to charge the battery;
Preserve the battery with special case for safety.
The electronic product should be dry, use alcohol and special cleaner to clean.
Do not force the vulnerable antenna, or it may cause destroy.
The screen is vulnerable, do not press hard or scrape with sharp things.
Please take care of the product!
No under sunshine or in high temperature, wet or dusty place.
Charge and attentions:
ET08 is with LiFe 3.7V-6V. RF206S working voltage is 3.8V-6.5V.Charge with others
kinds of batteries would damage the transmitter.
Power LED: Left, Red
RF LED: Right, Blue
Antenna
Power Button: Click the power key for 3 seconds to Startup & Shutdown.
SA: 2 positions; alternate; Short lever
RF LED
SB: 3 positions; alternate; Long lever
SC: 3 positions; alternate; Long lever
SC Switch Block
SD: 2 positions; alternate; Short lever
SD Switch Block
LD/RD: Rotary Knob(User-defined)
T1-T4:Trim,(User-defined)
RD Rotary Knob
TRAINER:Trainer port
Hook 5-way button: Move the cursor button up and down or left and right,
middle button for confirmation(Long press to reset).
HOME/MON.: Home/Monitor key, slightly click home, press and hold
J2
monitor.
Stick
EXIT/LOCK: Exit/Lock key, slightly click to exist, press and hold to
J1
lock the screen.
Trim 2
Trim 1
Home1
18
5-way Button
1
2
3
USB upgrading port
4
Technical Parameters
Transmitter
Model: ET08
Channel: 8 channels
Voltage: 3.7V-6V (1S lithium battery)
Current: 150mA
Applications: Helicopters/airplanes/muti-copters/robots/cars/boats
Resolution: Full channel 4096
Band: 2.4GHz(bidirectional)
HFSS:64points,3.6ms
Storage: 16 groups
Program: 5 program mix
Language: Chinese, English
Upgrade: USB upgrade
Display: 3.5 inches, 128x64 dot matrix screen
Relay Flight: Support
180°/270° servo: Support
Wireless copy: Model data
Receiver
Type: RF206S
Band: 2.4GHz
Voltage: 3.8V-6.5V
Current: 80mA
Frequency: FHSS 4096
PWM: 6 channels
PPM: Support
W.BUS: Compatible S.BUS
Two-way transmission: Support
Fail-safe: Support
180/270° servo: Support
Receiver Port Setting: Support
External Voltage Detection: DC 0~36V
Dimention: 36x20x12mm
MAIN INTERFACE INTRODUCTION
1-20.Timer 1
2.Return data(Receiver voltage)
3.Return data(External battery)
4-5-7-8.Trim monitor, display active
trimming status
6."Home2" key, click to enter Home
Interface 2
9.Model name: Click to enter model
select interface
10.Model type: Click to enter current
model type interface
11-21.Timer 2
12.User name, click into user defined
name
13.Transmitter battery voltage
14.Lock(Click EXIT/LOCK 2s to enter
lock status)
17 16 15 14 13
12
11
10
9
8
5 6 7
15.Receiver signal strength
16.Student (S), Trainer(T), 8channel
simulator(8)mode status
17.Throttle hold ( ) and throttle cut
( )status
18.Fly mode, current fly mode
19.Return data(Receiver voltage)
22.Return data(External battery
voltage)
23."Home interface2","Confirm
Key""Return Key" or"Home Key" switch
back to "Home Interface 1"
Home2 23
18
19
20
21
22
