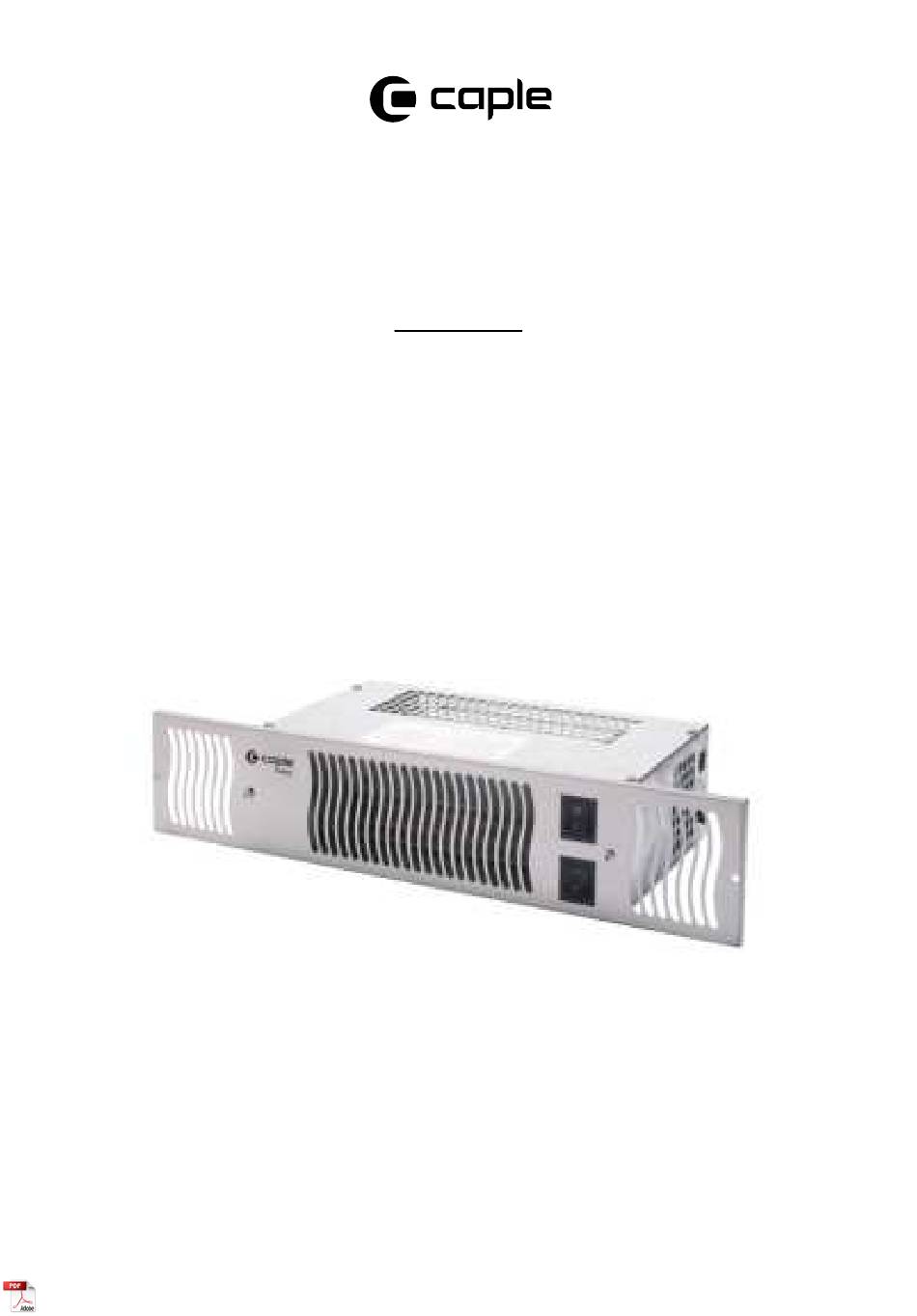

- Page 1 E l e c t r i c P l i n t h H e a t e r I n s t r u c t i o n M a n u a l PH501E Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Safety Instructions Environmental Protection Fitting Instructions Electical Supply Troubleshooting Care and Maintenance Caple Contact Details Instruction manual PH501E Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
- To prevent fire hazards do not block the ventilation grille. - Keep all flammable materials away from the appliance. - It is dangerous to alter or modify the specifications of the appliance in any way. Instruction manual PH501E Please keep this instruction manual for future reference... - Page 4 - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the grille, as this may damage or scratch the surface.
-
Page 5: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 6: Fitting Instructions
It is recommended that a gap of 20mm is left between the top of the plinth and the shelf of the cupboard above to ensure adequate airflow . 360mm 96mm A = Width of cut out B = Height of cut out Floor mounting Plinth mounting Instruction manual PH501E Please keep this instruction manual for future reference... -
Page 7: Electical Supply
1W. The maximum size of wire that can be used is 1.5mm . Do not overtighten the connector screws. Take care not to damage the components when connecting the cables. Instruction manual PH501E Please keep this instruction manual for future reference... - Page 8 flat head screwdriver in the 2 slots at the bottom of the controller and twisting gently as shown in the diagram below. Fixing holes Instruction manual PH501E Please keep this instruction manual for future reference...
- Page 9 › Supply – 240VAC 50 HZ Temperature Accuracy +/- 1°C › Maximum load current 10A Temperature display range 5°C - 35°C Temperature control accuracy ≤1°C › Dimensions 86 x 86 x 14mm Instruction manual PH501E Please keep this instruction manual for future reference...
- Page 10 › If you require more heat move the bottom switch to Boost “ II ” - To switch off move the power switch to OFF “0”. “0” OFF “I” ON “I” Low (950w) “II” Boost (1900w) 10 Instruction manual PH501E Please keep this instruction manual for future reference...
- Page 11 4. Press the Clock button again. The day of the week display will now flash. Change the day using the Up and Down buttons. 5. Once complete press the Memory button. Instruction manual PH501E Please keep this instruction manual for future reference...
- Page 12 Down buttons. 9. Repeat steps 6, 7 and 8 to set the remaining 2 On/Off time periods. 10. Once all 3 time periods have been set press Memory. 12 Instruction manual PH501E Please keep this instruction manual for future reference...
- Page 13 This controller is NOT user serviceable. Please do not dismantle the unit in the unlikely event of a fault developing. If powering the unit on and off does not resolve the problem, please contact Caple Service. Instruction manual PH501E Please keep this instruction manual for future reference...
-
Page 14: Troubleshooting
› Check the unit for any build up of dust or fluff and clean with a vacuum cleaner if required. › Once cooled down switch on power supply and retry. N OT E If a problem still persists please contact Caple Service 0117 938 7420 or service@caple.co.uk. 14 Instruction manual PH501E Please keep this instruction manual for future reference... -
Page 15: Care And Maintenance
Before any maintenance is carried out on the unit the electrical supply must be isolated. Maintenance should be restricted to dust and lint removal around the unit. Do not tamper with any electrical parts. A Caple approved engineer should be used for other maintenance requirements. -
Page 16: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
