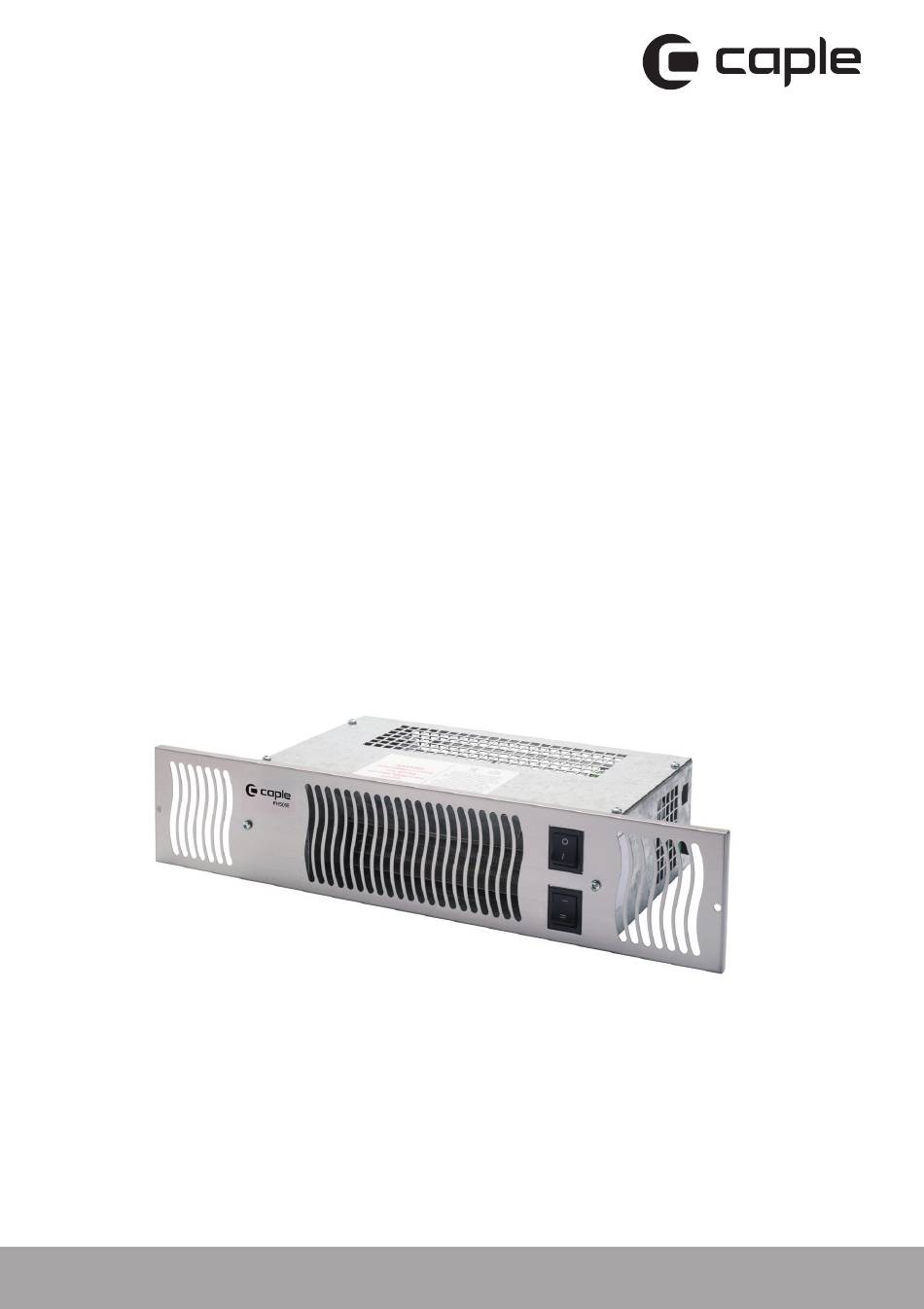

- Page 1 Electric Plinth Heater instruction manual PH501E Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
CONTENTS Safety warnings Environmental Protection Fitting Instructions Operation Troubleshooting Maintenance Technical Data Guarantee Please keep this instruction manual for future reference Instruction manual PH501E... -
Page 3: Safety Warnings
Care should be taken to avoid touching heating elements. - To prevent fire hazards do not block the ventilation grille - Keep all flammable materials away from the appliance. Please keep this instruction manual for future reference Instruction manual PH501E... - Page 4 - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the grille, as this may damage or scratch the surface.
-
Page 5: Environmental Protection
CE DECLARATIONS OF CONFORMITY This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC). Please keep this instruction manual for future reference Instruction manual PH501E... -
Page 6: Fitting Instructions
It is recommended that a gap of 20mm is left between the top of the plinth and the shelf of the cupboard above to ensure adequate airflow 96mm 360mm A = Width of cut out B = Height of cut out Floor mounting Plinth mounting Please keep this instruction manual for future reference Instruction manual PH501E... -
Page 7: Electrical Supply
1W. The maximum size of wire that can be used is 1.5mm¬¬2. Do not overtighten the connector screws. Take care not to damage the components when connecting the cables. Please keep this instruction manual for future reference Instruction manual PH501E... - Page 8 2 slots at the bottom of the controller and twisting gently as shown in the diagram below. Fixing holes Please keep this instruction manual for future reference Instruction manual PH501E...
-
Page 9: General Information
- Supply – 240VAC 50 HZ Temperature Accuracy +/- 1°C - Maximum load current 10A Temperature display range 5°C - 35°C - Dimensions 86 x 86 x 14mm Temperature control accuracy ≤1°C Please keep this instruction manual for future reference Instruction manual PH501E... -
Page 10: Operation
- If you require more heat move the bottom switch to Boost “ II ” - To switch off move the power switch to OFF “0” “0” OFF “I” ON “I” Low (950w) “II” Boost (1900w) Please keep this instruction manual for future reference Instruction manual PH501E... - Page 11 Adjust the hour display using the Up and Down buttons. 3. Press the Clock button again. The minute display will now flash, adjust using the Up and Down buttons Please keep this instruction manual for future reference Instruction manual PH501E...
- Page 12 Up and Down buttons. 9. Repeat processes 6, 7 and 8 to set the remaining 2 On/Off time periods. 10. Once all 3 time periods have been set press Memory. Please keep this instruction manual for future reference Instruction manual PH501E...
-
Page 13: Manual Operation
This controller is NOT user serviceable. Please do not dismantle the unit in the unlikely event of a fault developing. If powering the unit on and off does not resolve the problem, please contact a local Caple service engineer. Please keep this instruction manual for future reference... -
Page 14: Troubleshooting
- Once cooled down switch on power supply and retry. NOTE: If a problem still persists please conctact Caple Service 0117 938 7420 or service@ caple.co.uk. Please keep this instruction manual for future reference... -
Page 15: Maintenance
Before any maintenance is carried out on the unit the electrical supply must be isolated. Maintenance should be restricted to dust and lint removal around the unit. Do not tamper with any electrical parts A Caple approved engineer or highly competent person(s) should be used for other maintenance requirements. - Page 16 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual PH501E...
