Summary of Contents for Geneinno GTP exCAM-1

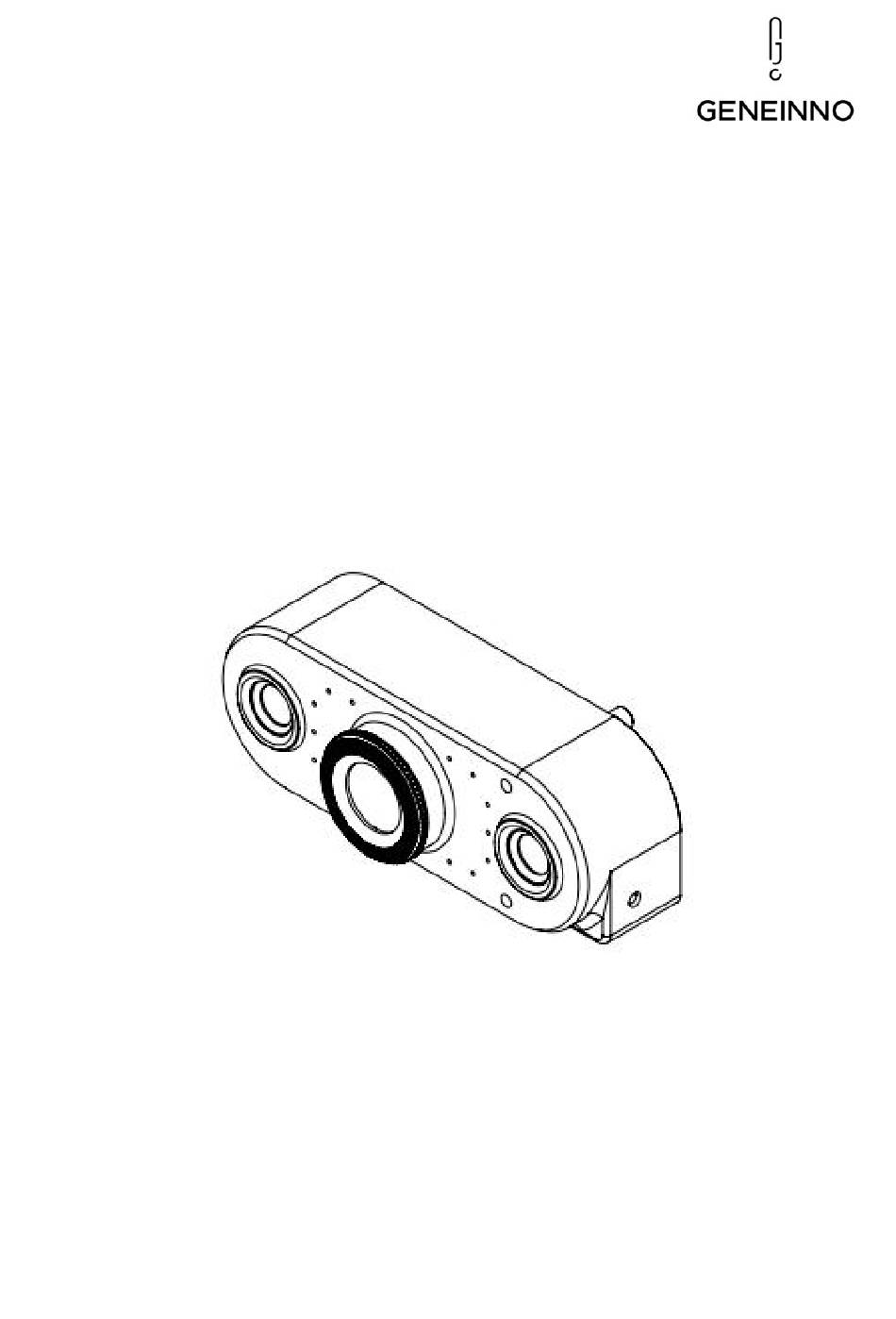

- Page 1 External Camera User Manual V1.2 2021.12 Shenzhen Geneinno Technology Co., Ltd www.geneinno.com...
-
Page 2: Support Bracket Installation
I. Introduction GTP_exCAM-1 is a dedicated external camera for Geneinno Intelligent Underwater Robot, Connect through customized watertight connector with Geneinno Intelligent Underwater Robot's unique expansion interface. External camera is to observe and shoot the scene beneath the T1 Pro. The external camera uses the same main camera module of the T1 Pro, meantime, equipped 3000l LED lights, for wider view and scenes below the robot. -
Page 3: Accessory Installation
② Install the wing screw through the hole, insert from the outside to the inside, and tighten the nut by hand. Note: Four buoyancy blocks needed for the external camera. Please install symmetrically. Excessive or uneven installation may affect the underwater operation of the underwater robot. © 2020-2022 GENEINNO All Rights Reserved... -
Page 4: App Download
1. APP Download Android l Scan QR code to download “Geneinno”APP. l Search "Geneinno" in IOS APP Store or Google Play to download our APP or visit "www.geneinno.com" to download APP from "Support/APP Download" for Android phones. l Open APP, Please register as a Geneinno member and log in. -
Page 5: Device Operation
Album view path: Settings - Album – External Camera Album Note: The LED brightness of the external camera needs to be in water to turn on the highest brightness. For detailed operation instructions of the APP, please refer to T1/T1 Pro User Manual. © 2020-2022 GENEINNO All Rights Reserved... -
Page 6: Image Settings
Exposure Time: Enable in Auto or Manual mode. In manual mode, could adjust exposure time (default value 20ms). l ISO: Enable in Auto or Manual mode. In manual mode, could adjust image ISO value. © 2020-2022 GENEINNO All Rights Reserved... - Page 7 More info: more information display l User guide: user guidance for starters l Firmware version: firmware version display l Storage: display of ROV storage status in the machine l Restore to factory settings: restore machine to factory settings © 2020-2022 GENEINNO All Rights Reserved...
- Page 8 Export photos and videos of external camera to PC Windows: First, connects your PC to Geneinno T1 Pro WIFI, then open a browser on PC, enter http://192.168.8.7/media to enter the device file system. Photos are in the photo storage folder, Videos are in the video storage folder.
-
Page 9: Specification
Intelligent underwater robot T1 Pro dedicated Camera specification CMOS 1/2.3 inches SONY CMOS IMX117 White Balance 3000K~8000K Lens IRIS: F2.5 FOV: 160° Frame Rate 4K UHD:4000*3000 30fps; 1080P FHD: 1920*1080 60fps Video Format MP4(H264/H265) Photo Format JPEG © 2020-2022 GENEINNO All Rights Reserved... -
Page 10: Maintenance And Precautions
Please use smooth tools such as cotton cloth to clean the surface of this product. After-sale service More information please check in Geneinno APP Help selection. If you need other after sales support or technical issue, please contact support@geneinno.com or check our website “Service &... - Page 11 Official Media Facebook YouTube Wechat Weibo Shenzhen Geneinno Technology Co.,LTD www.geneinno.com...
