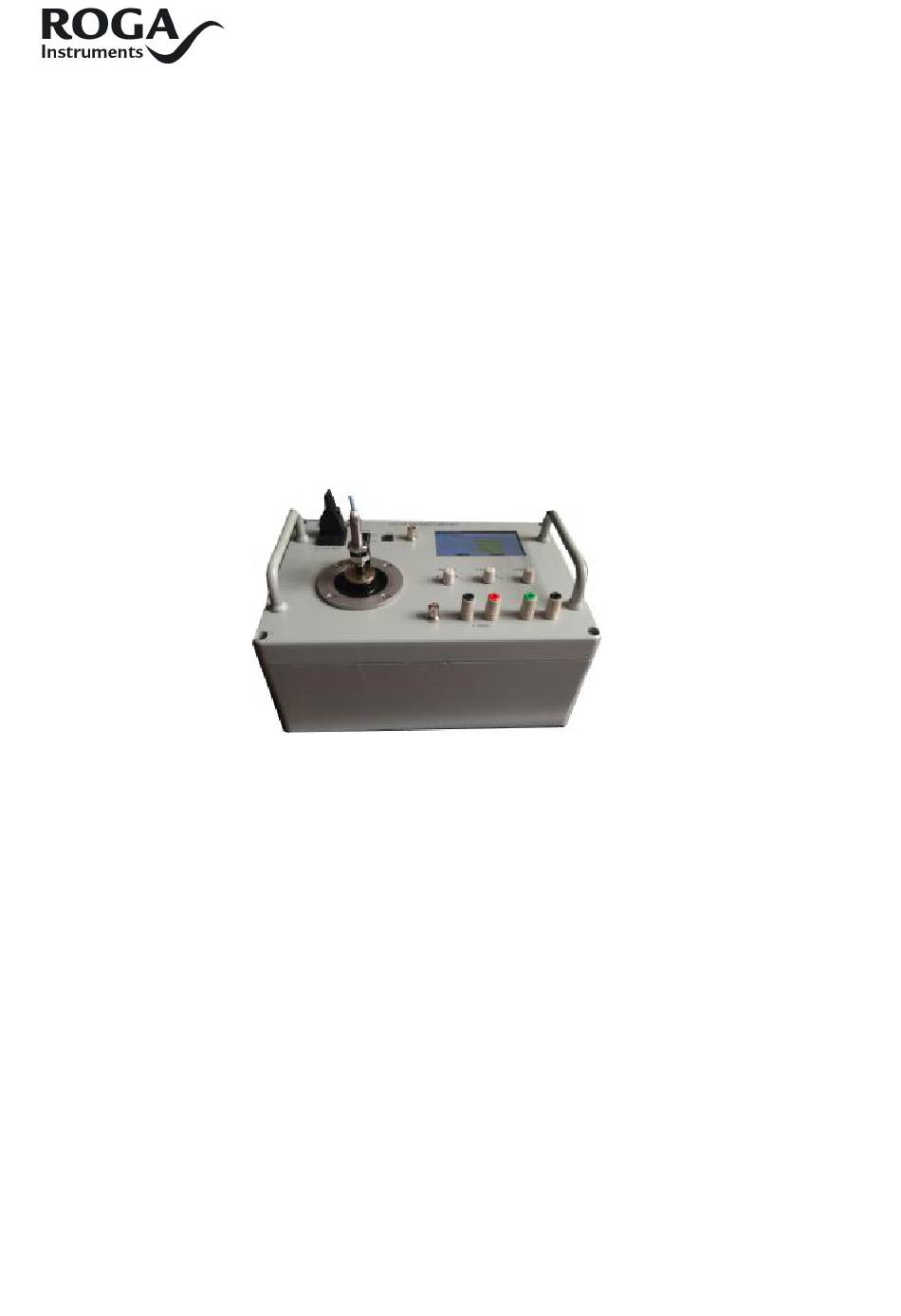

- Page 1 VC-02 Vibration Calibrator USER GUIDE...
- Page 2 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 Index Overview......................... 3 Technical Specifications....................3 How to Operate......................5 Software Operation....................... 8 A c c e s s o r i e s ......................8 Notes: As a precision instrument, be sure to read the manual carefully before using.
- Page 3 2.6.3 2.7 Maximum Vibration Amplitude & Maximum Load For the VC-02 is small, so the calibration of the different sensors at different frequencies (different weight), the calibrator can output amplitude is not the same. The maximum vibration amplitude and the...
- Page 4 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 are RMS . ≤100grams ≤200 grams Load a(m/S v(mm/S) d(μm) a(m/S v(mm/S d(μm) Frequency 10Hz 20Hz 1200 40Hz 80Hz 160Hz 320Hz 640Hz 1kHz 2kHz 4kHz 6kHz 8kHz 10kHz * At high frequencies,the vibration value of velocity and displacement is very small.
- Page 5 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 3 How to Operate 3.1 The Panel Diagram 1. Power input socket: connect the AC 220V power supply; 2. Power Switch: AC 220V power switch 3. USB interfaces: Connect the PC for vibration control by software;...
- Page 6 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 11. Vibration amplitude adjustment knob 12. Vibration frequency adjustment knob 13. LCD window Operation Steps 3.2.1 Mounting Sensor 3.2.1.1 Sensor (Acceleration or Velocity ) installation: put the M5 screw, sensor fixed on the table in turn. Different sensors, sometimes need to use the corresponding conversion screw;...
- Page 7 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 below. 3.2.2.3 For eddy displacement sensor, the calibrator can offer the power to the preamplifier; The green terminal is -24VDC, the black one is 0V; And the output of preamplifier connect to the signal socket of the BNC ;...
- Page 8 Model：VC-02 Vibration Calibrator Version： A Edit Date： 20/04/2015 ， can change <Sensor Type> or <Input Setting Method: Press the knob ，can change the types Type>，and counter clockwise or clockwise this knob of current location. 3.2.3.3 Vibration Freq: Vibration Frequency adjustment Setting Method: Press the knob to change the cursor position;...
