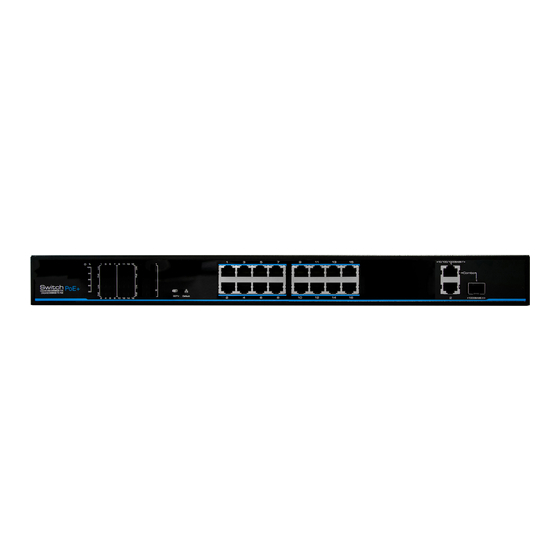

- Page 1 Vista QSW16M & QSW24M 16/24-Port 10/100Mbps PoE+ and 2-Port Gigabit PoE Managed Switch Web-based PoE Management Configuration Guide V1.0...
- Page 2 PoE features – where the default settings are not suitable. This guide uses the Vista 24-Port 100M PoE + 2-Port Gigabit PoE Managed Ethernet Switch as an example. If there is inconsistency between the instruction (e.g. port number etc.) and the actual product, please refer to the actual product.
-
Page 3: Table Of Contents
Content Configuration Instruction ...................... 1 Environments Requirements ....................1 Hardware Requirements ....................1 Software Requirements ....................1 Set Up Network Connection ....................1 Set Static IP for the Management Computer ..............2 Confirm the Network Connection by Ping Command ............ 3 Cancel the Proxy Server .................... -
Page 4: Configuration Instruction
Configuration Instruction The Vista QSW16/24M switches are provided with a default configuration that may be suitable for the majority of applications. However, should customization be required, the switches dedicated PoE Managed port can use to access the Web graphic user interface (GUI) to modify or view the status of the below aspects. -
Page 5: Set Static Ip For The Management Computer
Set Static IP address for the Management PC Operation steps (Windows 7 as example) ： Step 1: Click the Windows <start> button (bottom left) to open the <start> menu, select “control panel”. Double click the “network connection” icon, then double click the “local connection” icon. The “local Area Connection Status”... -
Page 6: Confirm The Network Connection By Ping Command
Step 3: Select "Internet protocol (TCP/IP), click <properties> to enter the “Internet Protocol (TCP/IP) Properties” window (right) Select the option “Use the following IP address” and input an IP address (an arbitrary value between 192.168.1.1~ 192.168.1.254, except 192.168.1.200!) in our example we use 192.168.1.92 and subnet mask 255.255.255.0 Click "OK"... -
Page 7: Cancel The Proxy Server
Cancel the Proxy Server If the management PC is normally used on a company or corporate network and needs to use a WEB proxy server to gain Internet access, then you may need to turn off the WEB proxy service setting before trying to access the switches web page! Follow the below to confirm: Step1: Open your Internet Explorer browser, select... -
Page 8: Login And Start
Login and Start Open the management PCs Internet Explorer browser. In the address bar type http://192.168.1.200 and press enter. You should be prompted for the login ID and password – defaults below Items Default value Switch default IP address 192.168.1.200 Subnet mask 255.255.255.0 Administrator’s account... -
Page 9: Poe Manager
PoE Manager Users can set global PoE parameters as well as PoE parameters per interface port. They can also view the PoE status of the entire switch and individual ports. PoE Setting Function Set the output PoE power of the entire switch. 1. -
Page 10: System Management
System Management Users can change the IP address and login password of the web system, view system information and restore factory default values remotely through the web GUI. Set IP Function Set the IP address of the switch. 1. Click <Set IP>. Procedure 2. -
Page 11: User Timeout
Function Restore the switch to factory default values. 1. Click <Factory Default >. Procedure 2. Click <OK> button and wait for 10s, the system will refresh automatically. Device Information Function View the IP address, MAC address and software version of the switch. 1.
