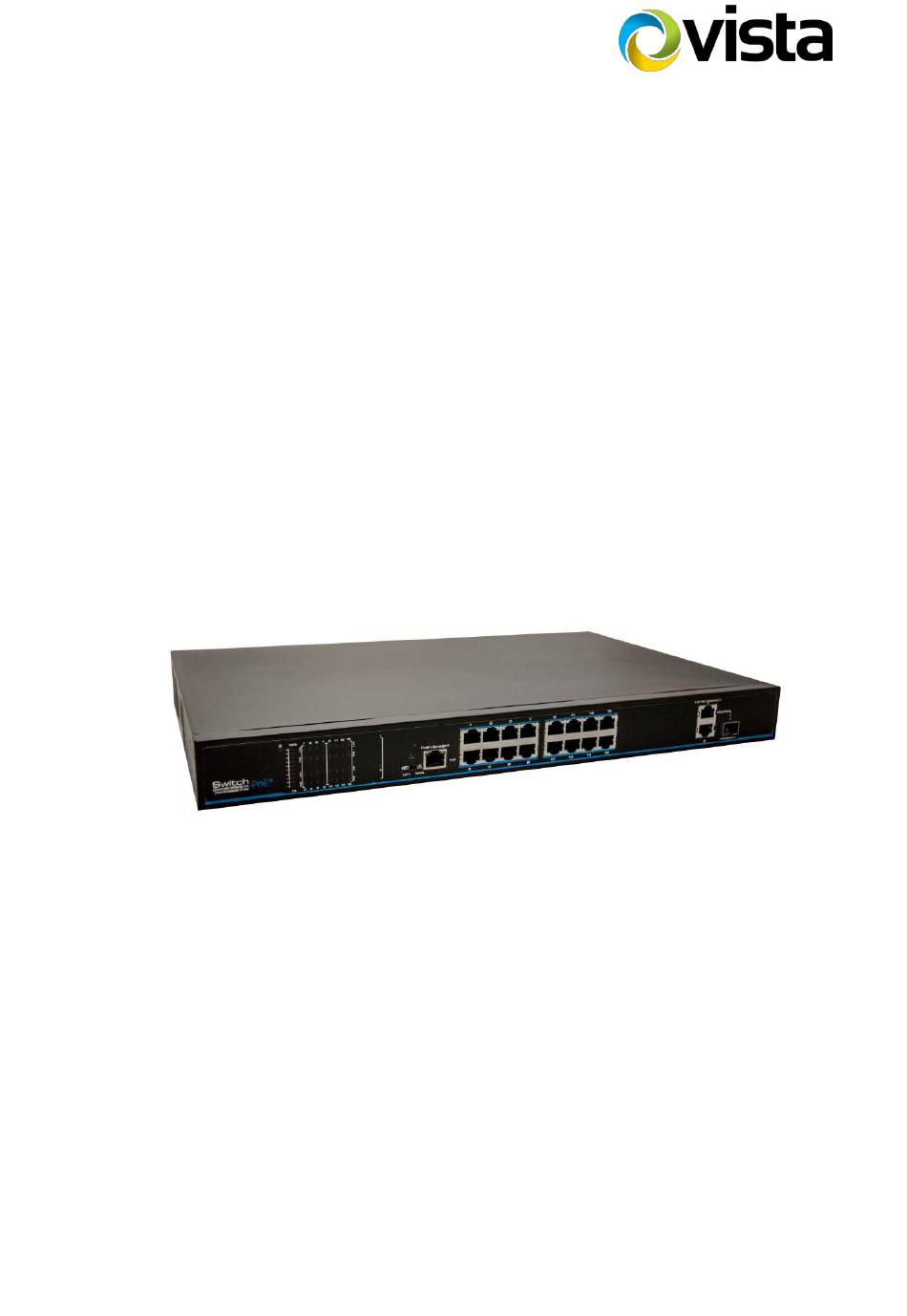

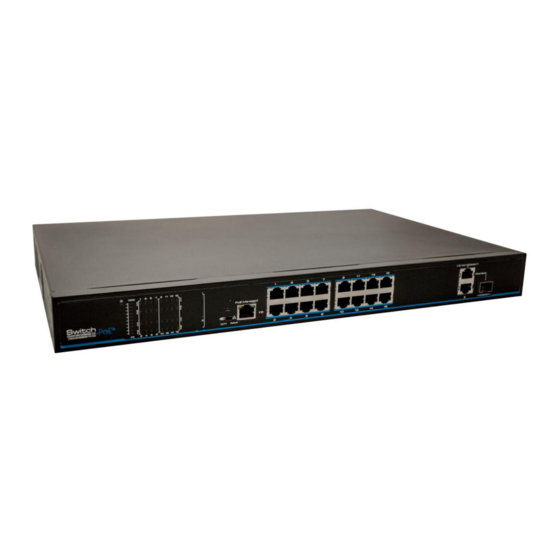

- Page 1 QSW16_24 16 and 24 Chn PoE switch QSW16_24 User manual V1.0...
- Page 2 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: •...
- Page 3 WARNINGS AND CAUTIONS: To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other openings on the equipment. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE.
-
Page 4: Table Of Contents
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Contents 1.Introduction ..............................5 1.1 Overview ............................. 5 1.2 Product Features..........................5 1.3 Front panel ............................5 2 Installation ..............................6 2.1 Contents ............................. -
Page 5: Introduction
1.Introduction 1.1 Overview This manual covers the installation set up and use of the QSW16 and 24 PoE Switches 1.2 Product Features • 16 /24 100Mbps downlink PoE Ethernet ports, 2 x gigabit uplink ports and 1 gigabit fibre port •... -
Page 6: Installation
2 Installation 2.1 Contents Please ensure that all items are present when un-packing the switch 2.2 Installation requirements The switch should only be installed in an indoor environment , either in a rack mount cabinet, secured to a wall or desk mounted. The following requirements should be observed: •... -
Page 7: Desk Mount
2.4 Desk mount The Switch can simply be mounted on a desk or table top, please ensure the environment is stable and clean. If required the rack mount ears can be used to secure the switch to the desk top. 2.5 Wall mounting The switch can be hung on a wall, please ensure the wall is of sufficient strength to support the switches weight, and that the correct fixings are used for the wall construction. -
Page 8: Cable Connections
2.6 Cable connections 2.6.1 Power connection The switch requires 230VAC mains connection. Ensure the power supply conforms to this. The AC power connection LED will show when power is applied. QSW16_24 User manual V1.0... -
Page 9: Technical Spec
3.0Technical spec Item QSW16 QSW24 Downlink Ethernet Ports 16×RJ45,PoE+ 10/ 100Base- TX 24×RJ45,PoE+ 10/ 100Base- TX Port Uplink Ethernet Ports 2* 10/ 100/ 1000Base- T+ 1* 1000Base- X( combo) 2* 10/ 100/ 1000Base- T+ 1* 1000Base- X( combo) Port Power Input 1×AC Female Terminal...
