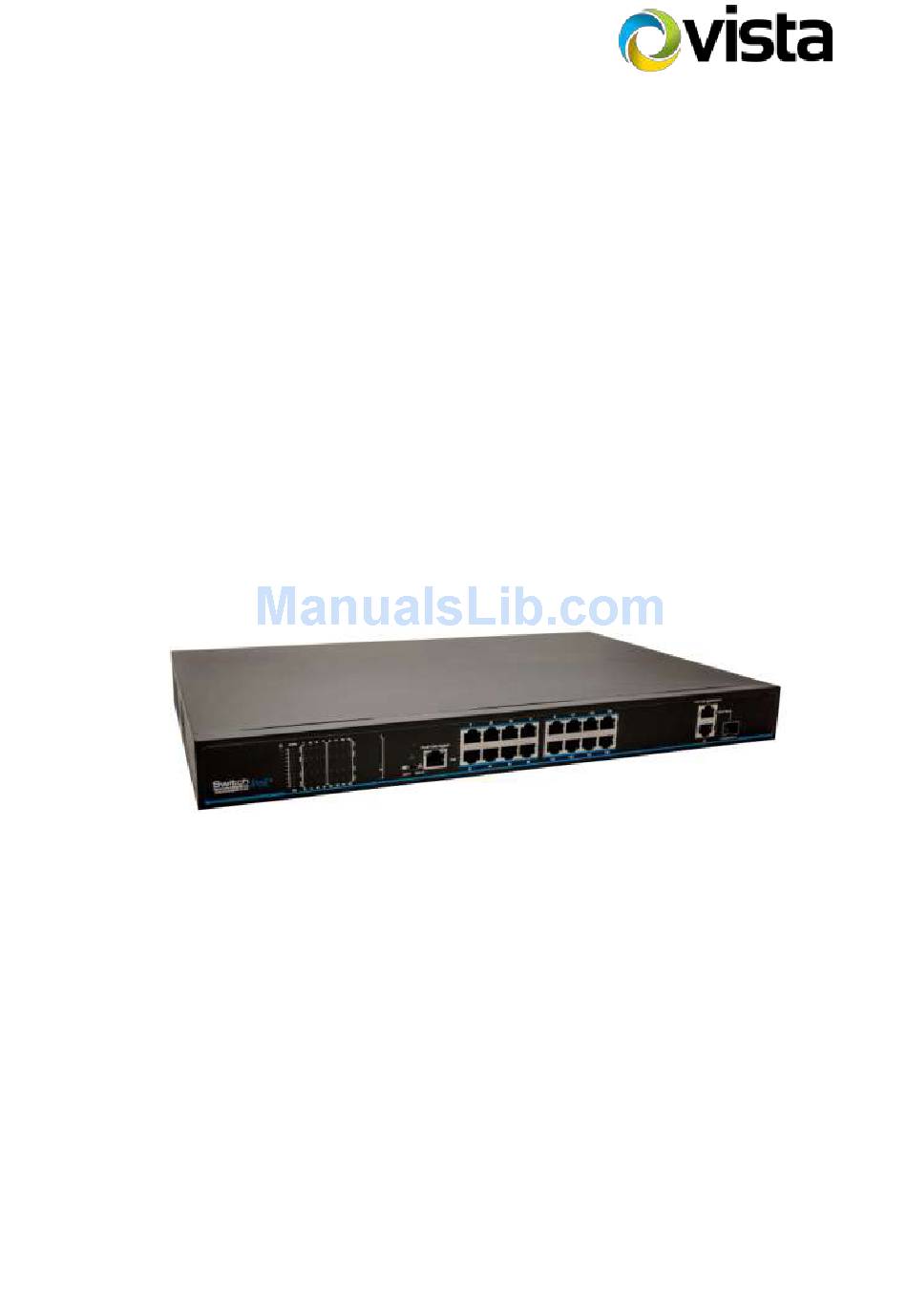

- Page 1 QSW16M 16 Chn PoE managed switch QSW16M User manual V1.0...
- Page 2 * This symbol indicates electrical warnings and cautions. ** This symbol indicates general warnings and cautions. NORBAIN SD reserves the right to make changes to the product and specification of the product from time to time without prior notice. QSW16M User manual V1.0...
-
Page 3: Important Safety Instructions
15. ITE is to be connected only to PoE networks without routing to the outside plant. CE COMPLIANCE STATEMENT WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. QSW16M User manual V1.0... -
Page 4: Table Of Contents
3.4 Restore IP address and Password ....................10 3.5 Device information ..........................11 4. PoE Power management ........................12 4.1 PoE settings ............................12 4.2 Power Status ............................. 12 4.3 Port Status and Control ........................12 5. CCTV Mode ............................13 QSW16M User manual V1.0... -
Page 5: Introduction
1.Introduction 1.1 Overview This manual covers the installation set up and use of the QSW16M 16 Chn PoE Switch 1.2 Product Features 16 100Mbps downlink PoE Ethernet ports, 2 x gigabit uplink ports and 1 gigabit fibre port PoE ports support PoE+ ( Max 30W per channel , total budget 250W) CCTV Mode –... -
Page 6: Installation
2.3 Rack mount Installation process: 1. Check rack grounding and stability 2. Use the provided screws to fit the connection ears to the switch 3. Use the provided screws to fit the switch in the rack QSW16M User manual V1.0... -
Page 7: Desk Mount
Procedure: 1. Use the provided screws to fit the connection ears to the switch 2. Use the correct fixings for the wall construction to mount the switch to the wall QSW16M User manual V1.0... -
Page 8: Cable Connections
To configure the PoE settings etc connect a network cable to “PoE managed” port on the front of the switch. 2.6.2 Power connection The switch requires 230VAC mains connection. Ensure the power supply conforms to this. The AC power connection LED will show when power is applied. QSW16M User manual V1.0... -
Page 9: Poe Web
3. PoE Web Page management The QSW16M Web management function allows the operator to control and manage the PoE output of each of the 16 ports. 3.1 Connection to web page 1. Using a Network cable ( Crossover for direct connection) 2. -
Page 10: Switch Ip Address Change
If it is necessary to restore the IP address and Password, this can be done using the following procedure: 1. Power up the switch 2. Remove the RJ45 cable form the “PoE Managed” port, 3. Using an appropriate tool, press and hold the “init” button for 5 seconds. QSW16M User manual V1.0... -
Page 11: Device Information
5. The IP address and Password are now reset to factory default. 3.5 Device information To get information on the switches IP address, MAC address and software version, click on “Device info” on the top menu bar, this will display the following menu: QSW16M User manual V1.0... -
Page 12: Poe Power Management
(1) Power Provided: The total power provided by QSW16M PoE switch, i.e. the power provided by the built-in 54V power supply, has been set up when it leaves the factory, please do not modify it. If users modified the power supply, please correct this setting. -
Page 13: Cctv Mode
5. CCTV Mode THE QSW16M has a unique “CCTV” mode. This allows the transmission of video and PoE power up to 250m on a Cat5e cable. The enter this mode simply flick the Switch on the front panel to the CCTV side. - Page 14 QSW16M User manual V1.0...
