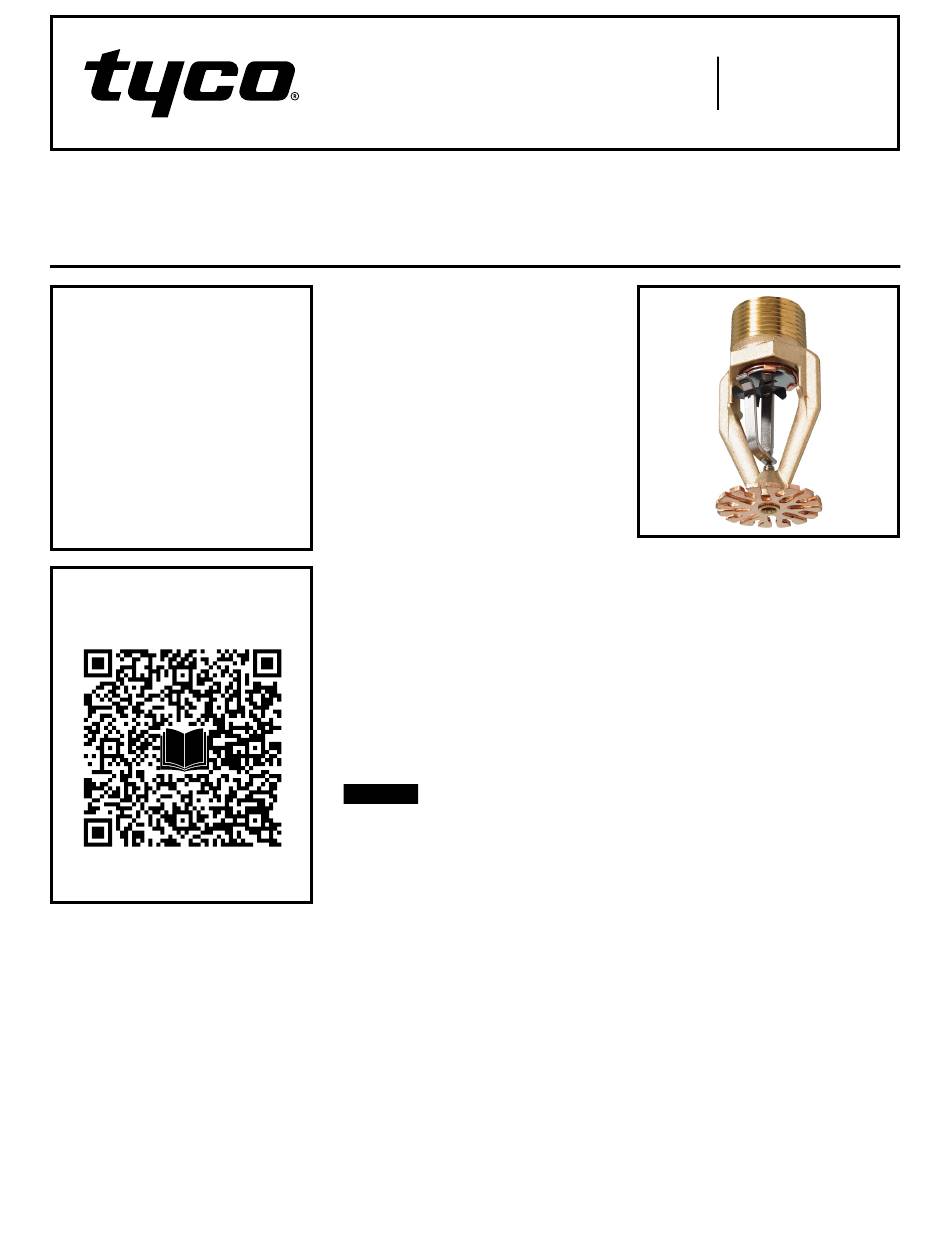

Tyco ESFR-22 Manual

Model ESFR-22
22.4 K-factor Pendent Sprinklers
Early Suppression, Fast Response
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/model-
esfr-22_4-k-pen-early-sup-fast-res
General
Description
The TYCO Model ESFR-22 Pendent
Sprinklers are Early Suppression, Fast
Response (ESFR) sprinklers with a
nominal K-factor of 22�4� The sprinkler
assembly is shown in Figure 1� The
sprinklers' suppression-mode design is
especially advantageous as a means of
eliminating the use of in-rack sprinklers
when protecting high-piled storage�
The Model ESFR-22 Sprinklers are
primarily used for ceiling-only sprin-
Page 1 of 4
kler protection of the following storage
applications:
• Most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• Uncartoned (exposed) expanded
plastics in accordance with NFPA 13
and FM Global standards
• Some storage arrangements of rub-
ber tires, roll paper, flammable liq-
uids, and aerosols
Note: The sprinklers are not limited to
these storage applications.
For more specific criteria, see the Tech-
nical Data section, Table A, and the
applicable design standard�
The Model ESFR-22 Sprinklers can
eliminate the use of in-rack sprinklers
when protecting high-piled storage of
specific materials up to the following
heights:
• NFPA: 40 ft (12,2 m) with ceilings up
to 45 ft (13,7m)
• FM: 45 ft (13,7 m) with ceilings up to
50 ft (15,2 m)
For more specific criteria, see Table B
and the applicable design standard�
NOTICE
The TYCO Model ESFR-22 Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any authorities
having jurisdiction such as FM Global.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA or
FM installation standard, or other appli-
cable standard, must be referenced
to ensure applicability and to obtain
complete installation guidelines. The
general guidelines in this technical data
sheet are not intended to provide com-
plete installation criteria.
APRIL 2022
Worldwide
www.tyco-fire.com
Contacts
Sprinkler
Identification
Number
See Table A
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
VdS Approved
LPCB Certified
EAC Approved
Finish
Natural Brass
Physical Characteristics
Frame � � � � � � � � � � � � � � � � � � � � � � � � � � � � �Brass
Deflector � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Compression Screw � � � � � � � � � � Stainless Steel
Hook � � � � � � � � � � � � � � � � � � � � � � � � � � � � MONEL
Strut� � � � � � � � � � � � � � � � � � � � � � � � � � � � � MONEL
Link Assembly � � � � � � � � � � � � � � � � Solder, Nickel
Button � � � � � � � � � � � � � � Copper/Stainless Steel
Sealing Assembly � � Beryllium Nickel w/TEFLON
Additional Technical Data
See Table A
Operation
The fusible link assembly is com-
prised of two link halves that are joined
together by a thin layer of solder� When
the rated temperature is reached, the
solder melts and the two link halves
separate, activating the sprinkler and
flowing water�
