Tyco ESFR-22 Quick Start Manual

Model ESFR-22
22.4 K-factor Pendent Sprinklers
Early Suppression, Fast Response
General
Description

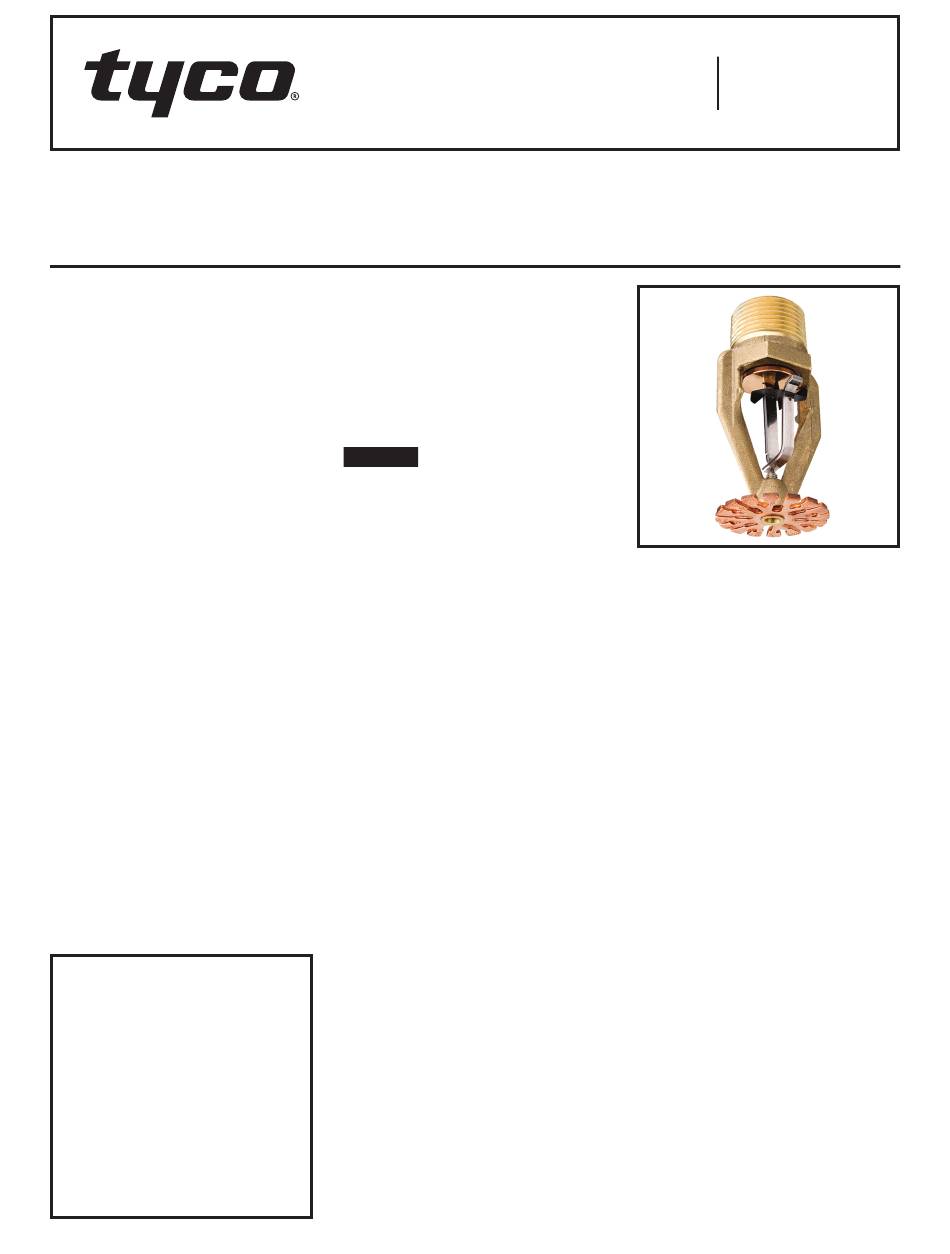

TYCO Model ESFR-22 Pendent Sprin-
klers are Early Suppression, Fast
Response Sprinklers having a nominal
K-factor of 22�4, see Figure 1� They are
suppression-mode sprinklers that are
especially advantageous as a means of
eliminating the use of in-rack sprinklers
when protecting high-piled storage�
The Model ESFR-22 Sprinklers are pri-
marily used for ceiling-only sprinkler
protection of (but not limited to) the
following storage applications:
• most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• uncartoned (exposed) expanded
plastics in accordance with NFPA 13
and FM Global standards
• some storage arrangements of rub-
ber tires, roll paper, flammable liq-
uids, and aerosols
For more specific criteria, see Table
A as well as the applicable design
standard�
The Model ESFR-22 can protect a
storage arrangement of 40 ft (12,2 m)
with a ceiling height of 45 ft (13,7 m)
without requiring in-rack sprinklers�
In addition, it can be installed with a
maximum deflector-to-ceiling distance
of 18 in� (460 mm)�
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
Applications for TYCO ESFR Sprin-
klers are expanding beyond currently
recognized installation standards�
For information on research fire tests
(for example, with flammable liquids
and aerosols) that may be accept-
able to an authority having jurisdiction,
contact Johnson Controls Technical
Services�
NOTICE
The Model ESFR-22 Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any authorities
having jurisdiction (for example, FM
Global). Failure to do so may impair the
performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA or
FM installation standard, or other appli-
cable standard, must be referenced
to ensure applicability and to obtain
complete installation guidelines. The
general guidelines in this technical data
sheet are not intended to provide com-
plete installation criteria.
Sprinkler
Identification
Number
See Table A for sprinkler identification
number�
MARCH 2020
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Finish
Natural Brass
Physical Characteristics
Frame � � � � � � � � � � � � � � � � � � � � � � � � � � � � �Brass
Deflector � � � � � � � � � � � � � � � � � � � � � � � � � �Bronze
Compression Screw � � � � � � � � � � Stainless Steel
Hook � � � � � � � � � � � � � � � � � � � � � � � � � � � � MONEL
Strut� � � � � � � � � � � � � � � � � � � � � � � � � � � � � MONEL
Link Assembly � � � � � � � � � � � � � � � � Solder, Nickel
Button � � � � � � � � � � � � � � � � � � � � � � � � � � � � �Brass
Sealing Assembly � � Beryllium Nickel w/TEFLON
Additional Technical Data
See Table A for additional technical
data�
Operation
The fusible link assembly is com-
prised of two link halves that are joined
together by a thin layer of solder� When
the rated temperature is reached, the
solder melts and the two link halves
separate, activating the sprinkler and
flowing water�
TFP321
