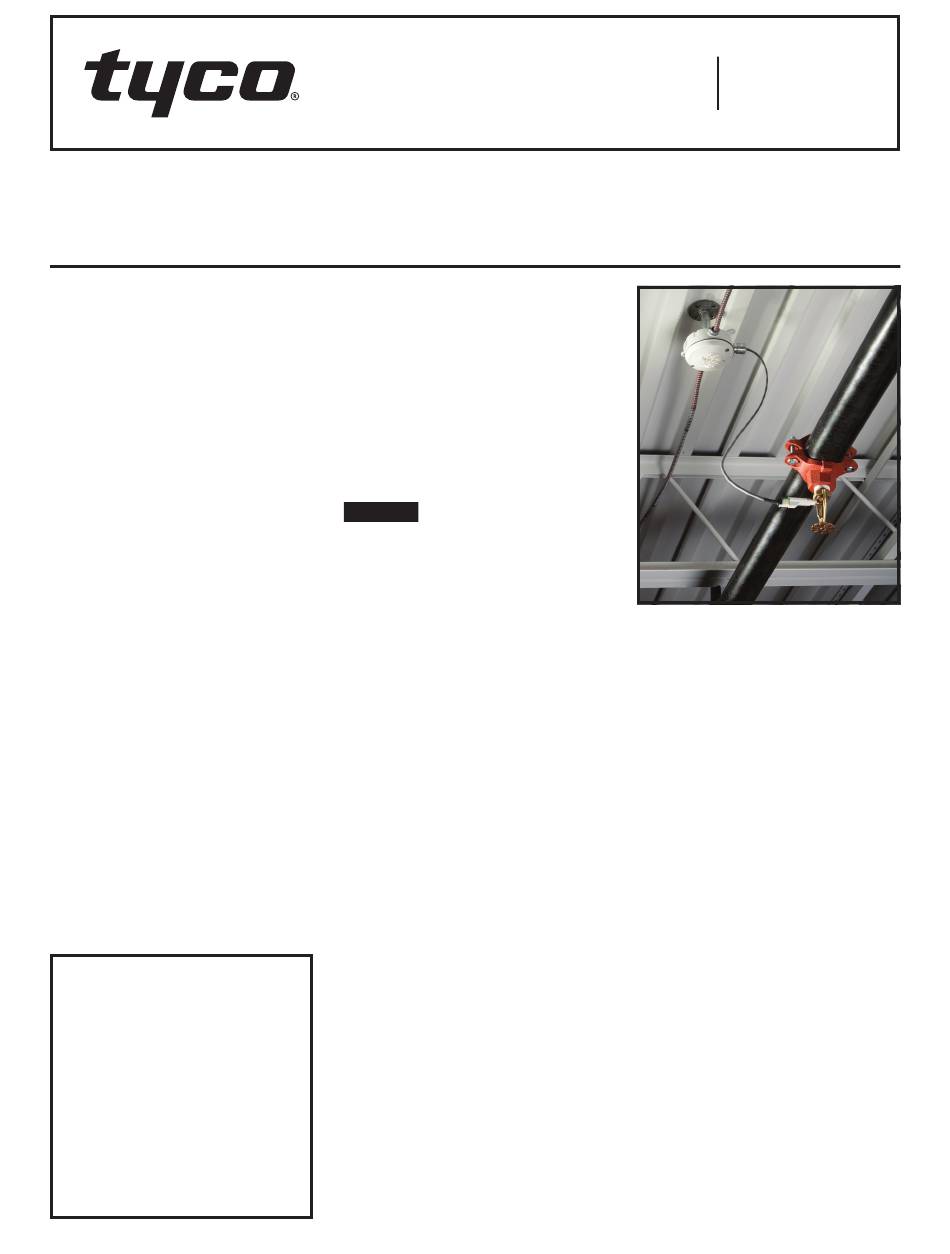

Tyco EAS-1 Manual

EAS-1 Electronically Activated Sprinkler System
ASRS-A Configuration
General
Description
The TYCO EAS-1 Electronically Acti-
vated Sprinkler System ASRS-A Con-
figuration is specifically engineered to
provide effective fire protection for an
ASRS-A configuration of an Automated
Storage and Retrieval System (ASRS).
The sprinkler system for the ASRS-A
configuration consists of the following
components:
• Addressable heat sensors
• Addressable photoelectric smoke
sensors
• Electronic control system

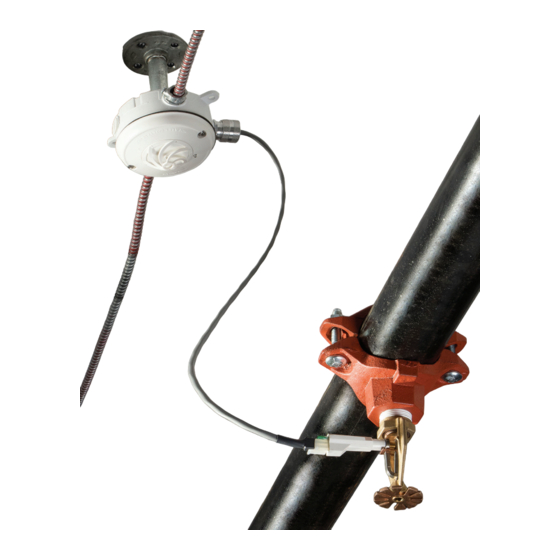

• Electronically controlled sprinklers
The sensors are connected to an elec-
tronic control system that continuously
analyzes temperature information and
monitors for the presence of smoke
within the protected area.
In the event of a fire, the system is
designed to simultaneously operate
a group of sprinklers surrounding the
point of fire origin very early in the fire
development.
Features
• UL Listed components
• Provides focused protection by
responding with a grouped sprinkler
operation surrounding the fire
• Increases installation flexibility and
improves system performance by
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
allowing heat sensors and sprin-
klers to be installed for optimal
performance
• Delivers rapid response during the
incipient stages of fire growth
• Maintains continuous monitoring of
integral system components
• Provides ceiling only fire protection
for storage arrangements that can-
not be protected by traditional ceil-
ing only sprinkler schemes
NOTICE
The TYCO EAS-1 Electronically Acti-
vated Sprinkler System ASRS-A Con-
figuration described herein must be
installed and maintained in compliance
with this document and with the appli-
cable standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices. Applicable Standards
are:
• NFPA 13
• NFPA 20
• NFPA 24
• NFPA 25
• NFPA 72
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data
Approvals
All system components integral to the
TYCO EAS-1 Electronically Activated
Sprinkler System ASRS-A Configura-
tion are UL Listed.
Maximum Working Water Pressure
175 psi (12 bar)
DECEMBER 2020
Worldwide
www.tyco-fire.com
Contacts
System
Components
The TYCO EAS-1 Electronically Acti-
vated Sprinkler System ASRS-A
Configuration is a fully engineered inte-
grated system that requires specific
proprietary components for system
operation. For a list of the core com-
ponents, see Table A. For an additional
list of recommended components for
use with the sprinkler as applicable,
see Table B.
Design Criteria
The TYCO EAS-1 Electronically Acti-
vated Sprinkler System ASRS-A Con-
figuration and algorithm are designed
to respond to a single fire originating
from a single ignition location.
Building Construction
The sprinkler system is suitable for use
within building construction that
use Early Suppression Fast Response
(ESFR) sprinklers based on the require-
ments of NFPA 13.
The system is suitable for use in build-
ings with horizontal ceilings and unob-
structed construction.
can
