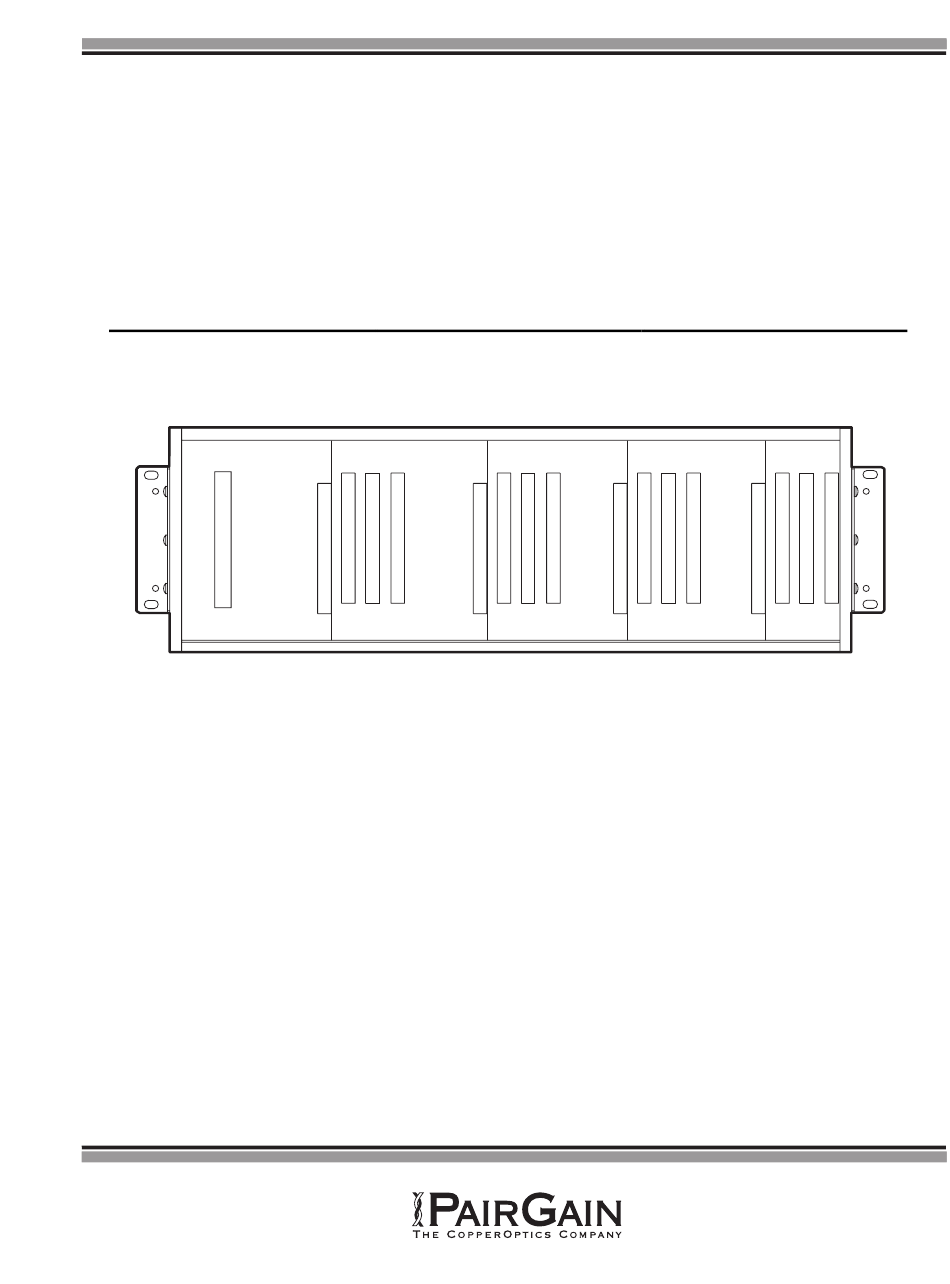

- Page 1 PG-F CO T ERMINAL HELF FCS-719 ODEL List Number Part Number CLEI Code 150-1319-01 VAMCBE0ARA ECHNOLOGIES NGINEERING ERVICES ECHNICAL RACTICE 363-719-100 ECTION Revision History of this practice. Revision 03—December 18, 1996 a) Added List 2...
-
Page 2: Table Of Contents
A caution warns you of possible damage to equipment. A warning indicates the possibility of personal injury. ©Copyright 1996 PairGain Technologies, Inc. PairGain is a registered trademark, and PG-Flex is a trademark of PairGain Technologies, Inc. PairGain Engineering - Plant Series PG-Flex FCS-719... -
Page 3: Product Overview
Alarm, Line, and Channel Units, as well as termination points for subscriber circuits, alarm, power, and metallic test access. The FCS-719, List 1 COT Shelf provides 25-pair male Amphenol connectors for subscriber connections. All circuit boards are installed from the front of the shelf. -
Page 4: Specifications
PGTC Interface unit (common to all systems). 4. BACKPLANE CONNECTIONS The backplane of the FCS-719 COT Shelf List 1 contain the following connectors (Figure 2): CO Power, (Table 7) Local Area Network (Table 8) - Page 5 Revision 03 December 18, 1996 Section 363-719-100 Figure 2. FCS-719, List 1 COT Shelf Backplane Refer to the installation section of the appropriate instruction manual to get information on: Cabling Proper connections Grounding Wiring external to the product(s) should follow the provisions of the current edition of the National Electrical Code.
- Page 6 P8, P12, P16, P20 System 4 wirewrap fields Composite Clock Timing Input Alarms Ext. ACO, PGTC Inhibit P24, P25 Circuit, Frame, Battery Grounds PGTC Connector Spare pins; not connected TB1, TB2 CO Power Page 4 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 7 CC1TIP CC1RING EXT_ACO CC2TIP CC2RING 8KHZ_CC SYS_ID_NO SYS_ID_COM SYS_ID_NC MAJ_AUD_NO MAJ_AUD_COM MAJ_AUD_NC MAJ_VIS_NO MAJ_VIS_COM MAJ_VIS_NC MIN_AUD_NO MIN_AUD_COM MIN_AUD_NC MIN_VIS_NO MIN_VIS_COM MIN_VIS_NC FUSEALARM MAJORALARM MINORALARM BATTERY- BATTERY- BATTERY- BATTERY+ BATTERY+ BATTERY+ PROTGND PG-Flex FCS-719 PairGain Engineering - Plant Series Page 5...
- Page 8 TESTIN-R_n TESTOUT-T_n TESTOUT-R_n BYPASS-T_n BYPASS-R_n HDSLTIP1_n HDSLTIP2_n HDSLRING1_n HDSLRING2_n PROTGND PROTGND Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. Page 6 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 9 TIP01_n RING01_n TIP02_n RING02_n TIP03_n RING03_n TIP04_n RING04_n PROTGND PROTGND * Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. PG-Flex FCS-719 PairGain Engineering - Plant Series Page 7...
- Page 10 TIP05_n RING05_n TIP06_n RING06_n TIP07_n RING07_n TIP08_n RING08_n PROTGND PROTGND * Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. Page 8 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 11 TIP09_n RING09_n TIP10_n RING10_n TIP11_n RING11_n TIP12_n RING12_n PROTGND PROTGND * Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. PG-Flex FCS-719 PairGain Engineering - Plant Series Page 9...
- Page 12 "CKT GND" wire-wrap post. Follow local grounding practices. Table 8. COT Shelf Connectors (LAN) Connector Type Function (Not currently used) Table 9. COT Shelf Connector (DATA) Connector Type Function RS-232 DTE (Not currently used) Page 10 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 13 Central office battery ground. This is isolated from frame ground in Wire Wrap PG-Flex. * Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. PG-Flex FCS-719 PairGain Engineering - Plant Series Page 11...
- Page 14 8 ckt 8 ckt 8 ckt 8 ckt 8 ckt 8 ckt 8 * Refer to Table 11 for alarm unit terminations, and to Table 14 for line unit terminations. Page 12 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 15 Service Service Service Configurations Configurations Configurations Configurations 4-Channel POTS 8-Channel POTS 4-Channel ISDN 4-Channel DDS Ckt 1 Ckt 2 Ckt 3 Ckt 4 Ckt 5 Ckt 6 Ckt 7 Ckt 8 PG-Flex FCS-719 PairGain Engineering - Plant Series Page 13...
- Page 16 Shaded terminations are used only with 8 Channel POTS and DDS Units. * Where n is 1 on System 1, 2 on System 2, 3 on System 3, and 4 on System 4. Page 14 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 17 Table 15. PGTC Telco Connector P27 Signal Signal PGTC_RING1 PGTC_TIP1 PGTC_RING2 PGTC_TIP2 PGTC_RING3 PGTC_TIP3 PGTC_RING4 PGTC_TIP4 SLEEVE2 SLEEVE1 SLEEVE4 SLEEVE3 PROCEED2 PROCEED1 PROCEED4 PROCEED3 LOCK2 LOCK1 LOCK4 LOCK3 TMAJ TSTALM SEZBY SEIZE PG-Flex FCS-719 PairGain Engineering - Plant Series Page 15...
-
Page 18: Installation And Test
Check the contents against the packing list to ensure complete and accurate shipment. If the shipment is short or irregular, contact PairGain as described in Section 12. If you must store the equipment for a prolonged period, store the equipment in its original container. - Page 19 5.9 km 444 Ω 22 AWG 13.7 kft 0.6 mm 4.2 km 554 Ω 24 AWG 10.7 kft 0.5 mm 3.3 km 672 Ω 26 AWG 8.1 kft 0.4 mm 2.5 km PG-Flex FCS-719 PairGain Engineering - Plant Series Page 17...
-
Page 20: Mounting
Connect one end of the frame ground wire to the grounding lug G1 (Frame Ground). Connect the other end of the frame ground wire to the central office ground termination point. Figure 3. Connecting the Frame Ground (Protection Ground) Page 18 PairGain Engineering - Plant Series PG-Flex FCS-719... - Page 21 Connect the central office battery wire from TB1 on the COT Shelf to the equipment bay's fuse panel termination point. Figure 4. Connecting the CO Battery for the List 1 COT Shelf PG-Flex FCS-719 PairGain Engineering - Plant Series Page 19...
- Page 22 (Ring) on the COT shelf, where n is 1 for System 1, 2 for System 2, 3 for System 3, and 4 for System 4. Repeat steps 1 and 2 for each system being installed. Figure 5. Connecting the HDSL Lines Page 20 PairGain Engineering - Plant Series PG-Flex FCS-719...
- Page 23 3 for System 3, and 4 for System 4 (Figure 6): Figure 6. Connecting the Metallic Bypass Pair. The metallic bypass pair is also present on the 25th pair of the Amphenol connector for each PG-Flex system (see Table 14). PG-Flex FCS-719 PairGain Engineering - Plant Series Page 21...
- Page 24 There should be > 100 kohm resistance between the tip and ring, tip and ground, and ring and ground of each of the HDSL circuits terminated on the shelf. 8.1.10 Replace the clear Plexiglas cover removed in section 8.1.1. Page 22 PairGain Engineering - Plant Series PG-Flex FCS-719...
-
Page 25: Turn-Up And Testing
12.2 The FCS-719 should not be field repaired. If it fails, replace it with another unit and return the faulty unit to PairGain for repair. Any modifications of the unit by anyone other than an authorized PairGain representative will void the warranty. - Page 26 December 18, 1996 Revision 03 12.3 If a unit needs repair, call PairGain for a Return Material Authorization (RMA) number and return the defective unit, freight prepaid, along with a brief description of the problem, to: PairGain Technologies, Inc. 2120 Ritchey St.
- Page 27 Revision 03 December 18, 1996 Section 363-719-100 PG-Flex FCS-719 PairGain Engineering - Plant Series Page 25...
