Product description
10
4.2

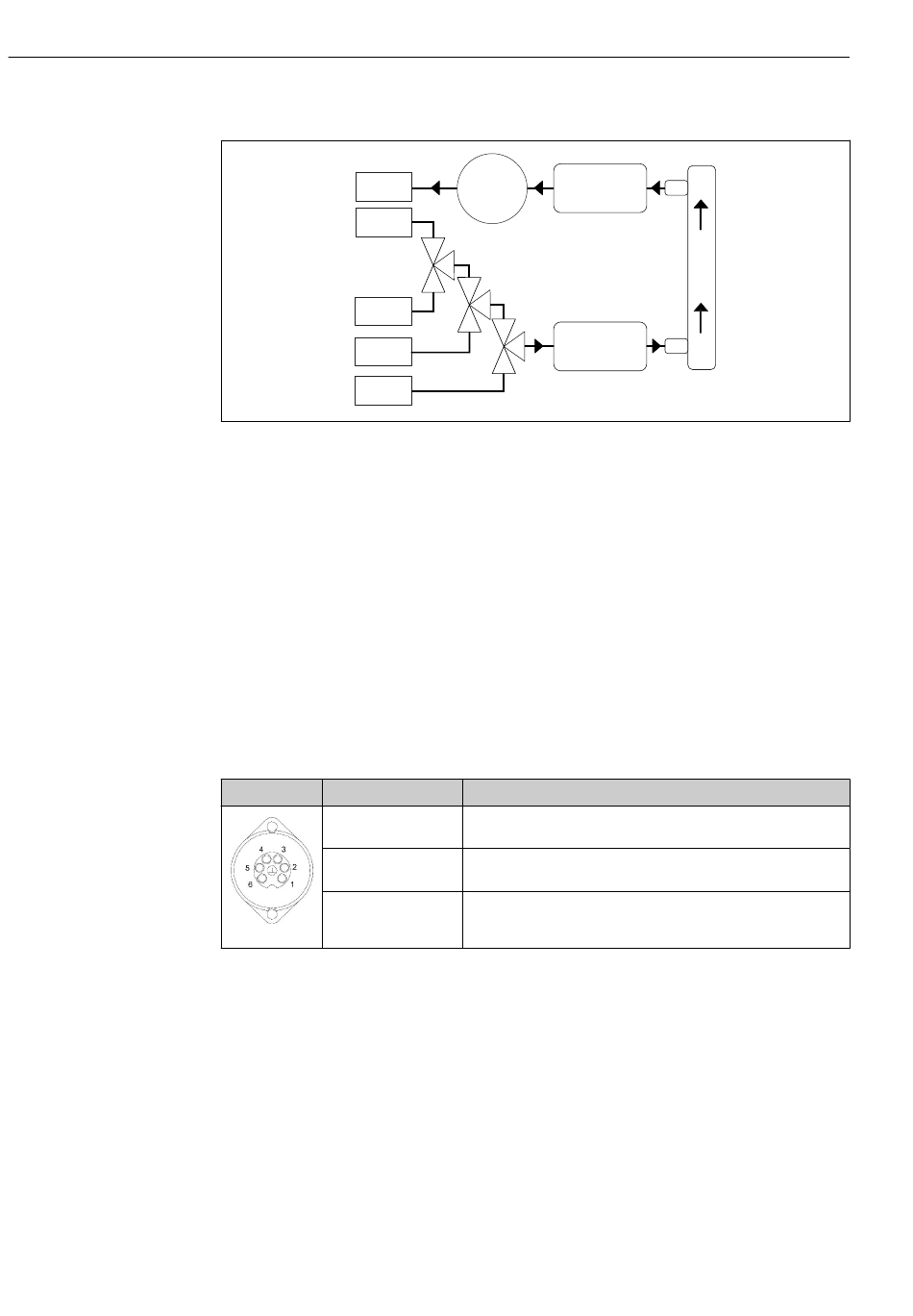

Process diagram

1
2
3
4
5
 2 Process diagram
1 Waste
2 Sample
3 Input 1
4 Input 2
5 Input 3
6 Pump
V1 - Valve 1, valve 2 (order option) and valve 3 (order option)
V3
LF1 - Conductivity and temperature sensors
LF2
UV UV lamp (12 VDC)
4.3

Socket assignment

4.3.1 Socket assignment (system with a connection socket)
Socket Pin
1: 4 (0) - 20 mA (GND)
2: 4 (0) - 20 mA (+)
3: 4 (0) - 20 mA (GND)
4: 4 (0) - 20 mA (GND)
5: Relay
6: Relay
A0046897
Pin 1/2: Provides an analog signal between 4 and 20 mA for the TOC measured value
between 0 and the limit (to be configured in the Settings menu, Options 1 tab).
Pin 3/4: Provides an analog signal between 4 and 20 mA for the Δ conductivity value
between 0 and the limit in μS/cm (to be configured in the Settings menu, Service 1 tab).
Pin 5/6: Acts as an NO contact if the configured TOC or conductivity limit value is
exceeded in the "analog output" option, or as an NC contact in the option with a group error
message in the event of a power failure, a reaction of the leak, lamp or pressure sensor
and if one of the two conductivity sensors is over range.
The measured value is updated every minute. During a calibration or the SST, the last value
is displayed until a new measurement is started.
6
V1
V2
V3
Description
TOC (0 to set limit)
Δ conductivity (0 to set limit)
Group error message or limit value overshoot depending on the
selected option
TOC Analyzer CA79
L 2 F
U
V
L 1 F
Endress+Hauser
A0046935
