- Page 1 ZXSDR R8862A Macro Radio Remote Unit Product Description Version: V1.0 ZTE CORPORATION No. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://support.zte.com.cn E-mail: 800@zte.com.cn...
- Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
-
Page 3: Table Of Contents
4.4 EMC Specifications .................... 4-5 4.5 Reliability Specifications ..................4-5 Chapter 5 Environment Requirements ............. 5-1 5.1 Operating Power Supply ..................5-1 5.2 Operating Environment Requirements ..............5-1 Figures......................I Tables ......................III Glossary ......................V SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential... - Page 4 This page intentionally left blank. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 5: About This Manual
About This Manual Purpose This manual provides information about the ZXSDR R8862A, including functions, structures, maintenance, and technical specifications. Intended Audience This manual is intended for: Equipment installation engineers Maintenance engineers What Is in This Manual This manual contains the following chapters. - Page 6 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance cm between the radiator & your body. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 7: Chapter 1 Product Positioning And Features
Product Positioning ....................1-1 Product Features......................1-2 1.1 Product Positioning The ZXSDR R8862A is an outdoor remote radio unit in a ZTE base station. The ZXSDR R8862A and a form a complete base station, implementing radio transmission in the coverage area and controlling radio channels. -
Page 8: Product Features
The ZXSDR R8862A supports a dynamic auto-sensing power supply based on the output power, reducing the overall power consumption. Natural heat dissipation of the ZXSDR R8862A contributes to quite low power consumption and zero noise. Integrated lightning protection module The ZXSDR R8862A has an integrated lightning protection module with the protection level of 20 kA. -
Page 9: Chapter 2 Product Structure

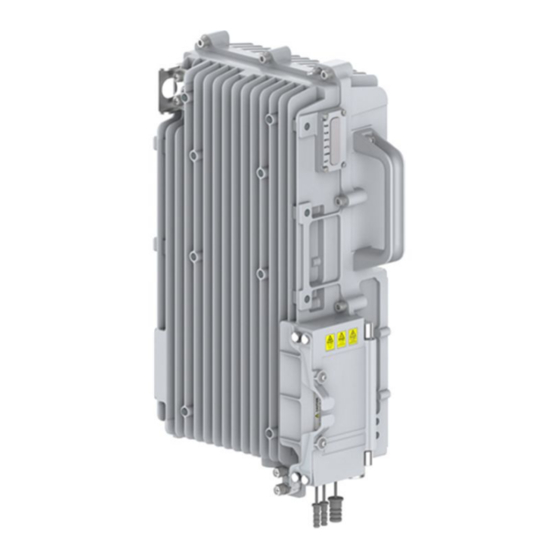

Chapter 2 Product Structure Table of Contents Hardware Architecture....................2-1 Logical Architecture....................2-2 Software Architecture ....................2-2 2.1 Hardware Architecture Figure 2-1 shows an external view of the ZXSDR R8862A. Figure 2-1 External View of the ZXSDR R8862A SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential... -
Page 10: Logical Architecture
ZXSDR R8862A Product Description 2.2 Logical Architecture The ZXSDR R8862A consists of a power supply, transceiver, power amplifier, and diplexer filter. Figure 2-2 shows the logical structure of the ZXSDR R8862A. Figure 2-2 Logical Structure of the ZXSDR R8862A For the function description of the modules, refer to Table 2-1. -
Page 11: Figure 2-3 Software Architecture Of The Zxsdr R8862A
Chapter 2 Product Structure Figure 2-3 Software Architecture of the ZXSDR R8862A The hardware platform is operating on the Linux operating system. The Board Support Package (BSP) is a set of software closely related to board hardware and supports the RealTime Operating System (RTOS) to operate on boards. - Page 12 ZXSDR R8862A Product Description This page intentionally left blank. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 13: Chapter 3 Operation And Maintenance
Local Maintenance The Local Maintenance Terminal (LMT), which is installed on a PC, is connected to the ZXSDR R8862A through an Ethernet cable for local operation and maintenance. Figure shows a diagram of local operation and maintenance. -
Page 14: Figure 3-2 Local Operation And Maintenance
ZXSDR R8862A Product Description Figure 3-2 Local Operation and Maintenance You can query the following information on the LMT of the ZXSDR R8862A: power, power increase and decrease, and calibration. The LMT is used to maintain a single base station. -
Page 15: Chapter 4 Technical Specifications
Power Consumption ....................4-4 EMC Specifications ....................4-5 Reliability Specifications .....................4-5 4.1 Physical Specifications For a description of the physical specifications of the ZXSDR R8862A S8500/S1800/ S2100/ S2600. Item Specification 422 mm × 218 mm × 133 mm (Height × Width × Depth) -
Page 16: Performance Specifications
12.4 L Weight 16 kg Color Silvery grey 4.2 Performance Specifications Operating Frequency Band For a description of the operating frequency bands supported by the ZXSDR R8862A, refer Table 4-1. Table 4-1 Operating Frequency Band Model Band Operating Frequency Band R8862A S7200 Tx: 758 MHz–803 MHz... -
Page 17: Table 4-2 Cabinet-Top Output Power
R8862A S7000 2 × 40 W Bandwidth The ZXSDR R8862A supports all LTE bandwidths, including 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, and 20 MHz. Receiving Sensitivity For a description of the receiving sensitivity of the ZXSDR R8862A, refer to Table 4-3. -
Page 18: Power Consumption
ZXSDR R8862A Product Description Table 4-3 Receiving Sensitivity Mode Frequency Single Antenna Dual Antennas Four Antennas Spectrum(MHz) (dBm) (dBm) (dBm) 900/1800 -113.5 -115.5 UMTS 2100 -126.5 -129.2 AP700/850/900 -106.6 -109.4 -112.2 1800/2100/ 2600 -106.4 -109.2 -112 4.3 Power Consumption R8862A Power Consumption in LTE Single Mode Configuration: LTE single carrier, 2PA, 60 W/LTE. -
Page 19: Emc Specifications
Contact discharge: ±6000 V Air discharge: ±8000 V Surge immunity DC power interface cable (ground): ±2000 V 4.5 Reliability Specifications For a description of the reliability specifications of the ZXSDR R8862A, refer to Table 4-5. Table 4-5 Reliability Specifications Item... - Page 20 ZXSDR R8862A Product Description This page intentionally left blank. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 21: Chapter 5 Environment Requirements
Chapter 5 Environment Requirements Table of Contents Operating Power Supply.....................5-1 Operating Environment Requirements................5-1 5.1 Operating Power Supply For a description of the operating power supply specifications of the ZXSDR R8862A, refer Table 5-1. Table 5-1 Operating Voltage Range Item Specification –48 V (–37 V to –60V) - Page 22 ZXSDR R8862A Product Description Caution! If the operating environment temperature is higher than 40°C, to avoid burns, never directly touch the equipment surface. If you disassemble the equipment in this case, first switch off its power supply. Do not disassemble the device until it cools down.
-
Page 23: Figures
Figures Figure 1-1 Position of the ZXSDR R8862A in a Wireless Network......1-1 Figure 2-1 External View of the ZXSDR R8862A............2-1 Figure 2-2 Logical Structure of the ZXSDR R8862A..........2-2 Figure 2-3 Software Architecture of the ZXSDR R8862A .......... 2-3 Figure 3-1 Remote Operation and Maintenance............ - Page 24 Figures This page intentionally left blank. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 25: Tables
Tables Table 2-1 ZXSDR R8862A Module Description ............2-2 Table 4-1 Operating Frequency Band................ 4-2 Table 4-2 Cabinet-Top Output Power ................ 4-3 Table 4-3 Receiving Sensitivity.................. 4-4 Table 4-4 EMC Specifications ................... 4-5 Table 4-5 Reliability Specifications ................4-5 Table 5-1 Operating Voltage Range ................5-1 Table 5-2 Operating Environment Requirements ............ - Page 26 Tables This page intentionally left blank. SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential...
-
Page 27: Glossary
- Database Subsystem - Direct Current - Global System for Mobile Communications - Internet Protocol - Local Maintenance Terminal - Long Term Evolution MTBF - Mean Time Between Failures MTTR - Mean Time To Recovery SJ-20150203110107-040|2016-04-08 (R1.1) ZTE Proprietary and Confidential... - Page 28 ZXSDR R8862A Product Description - Network Element - Operation, Administration and Maintenance - Operating and Maintenance - Operation Support Subsystem - Power Amplifier - Personal Computer - Remote Radio Unit RTOS - Real-Time Operating System - System Control Subsystem - Software Defined Radio...
