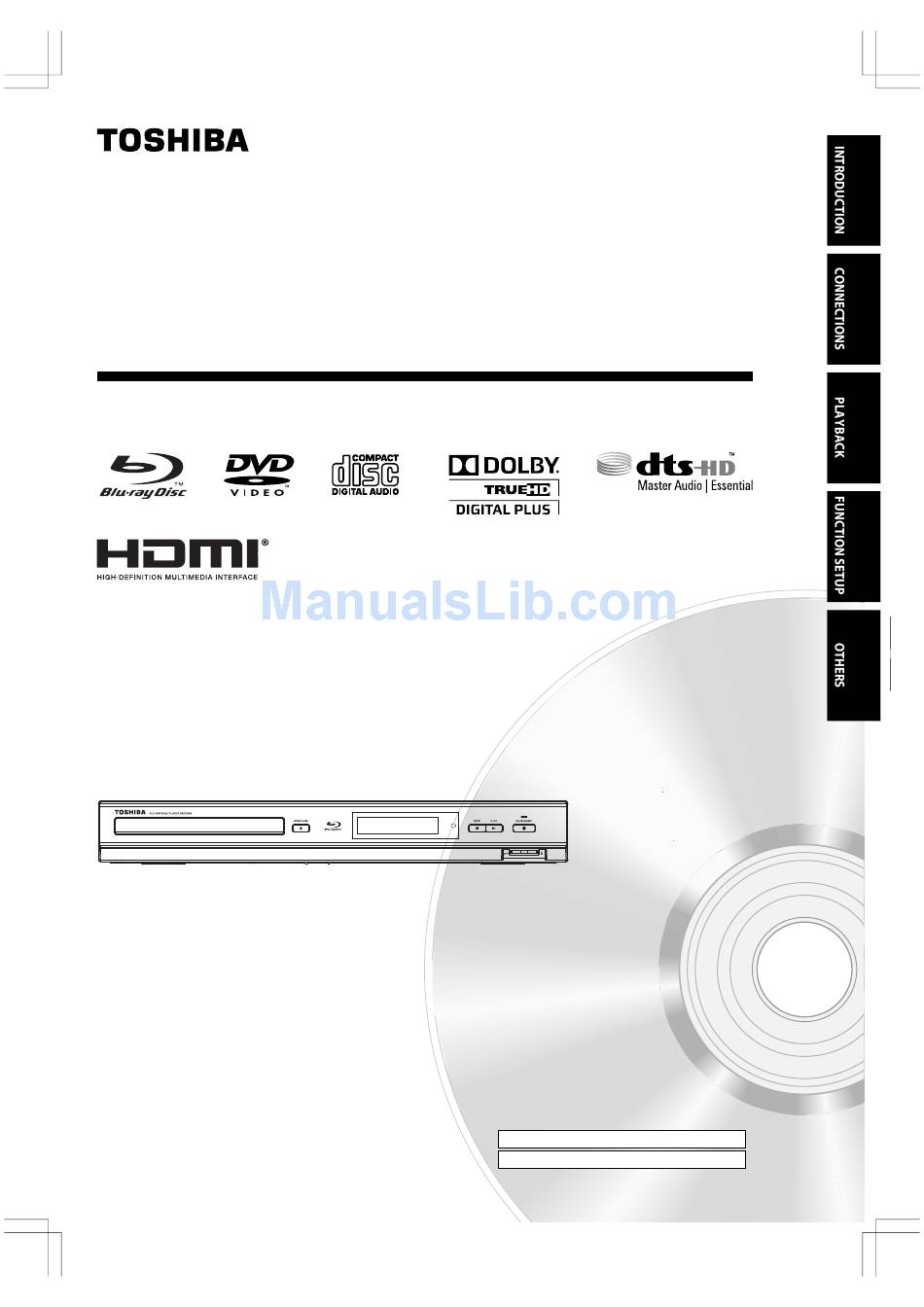

Page 1
The model number and serial number are on the back of this unit. Record these numbers in the spaces below. Refer to these numbers whenever you communicate with your Toshiba dealer about this unit. Model number : Serial number :...
Introduction SAFETY PRECAUTIONS CAUTION: VISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM. AVIS WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS 1.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. WARNING: Changes or modifications to this unit not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.
Introduction Supplied Accessories BONUSVIEW Remote Control with Composite Audio / Video Batteries (AAA x 2) Cables OWNER’S MANUAl Owner’s Manual Quick Start Guide (EN) (EN/ES) Symbols used in this Manual To specify for which media type each function is, we put the following symbols at the beginning of each item to operate.
Table of Contents Introduction SAFETY PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 2 PRECAUTIONS ... 3 Supplied Accessories ... 4 Symbols used in the Manual ... 4 Trademark Information ... 4 Table of Contents ... 5 Features ... 6 Identification of Controls ... 7 Front panel ...7 Rear panel ...7 Using the Remote Control ...
Introduction Features Blu-ray Disc You can enjoy Blu-ray Disc which is capable of storing five times more data than a conventional DVD. BD-Java With some BDs which support Java applications, you can enjoy the interactive functions such as games or interactive menus. BD-live BD-Live (BD-ROM version 2 Profile 2.0) that allows interactive functions to be used when this unit is connected to the Internet...
Identification of Controls Front panel 1. Disc tray 2. OPEN/ClOSE button 3. Display • Refer to “Front Panel Display” on page 10. 4. Remote sensor 5. STOP button 6. PlAY button Rear panel AC IN HDMI OUT 1. AC power cord •...
Introduction Using the Remote control Remote control BONUSVIEW No. Item Description Press to adjust aspect ratio in full ASPECT stop mode. OPEN/ClOSE Press to open or close the disc tray. Press to display the settings in SETTING home menu. Press to display the Connected in HOME MENU home menu.
• In playback mode, press GOTO, then press the number buttons to enter a title, chapter, track, Number buttons time or file number. • In menu mode, press to enter the parental code password. Press to display the search GOTO menu.
Introduction Operating with the remote control Point the remote control at the remote sensor and press the buttons. Distance: About 5 m from the front of the remote sensor. Angle: About 30° in each direction of the front of the remote sensor. Front Panel Display 1080ip 720p...
Connecting to a TV Connect the Blu-ray player to your TV. 1. Choose the appropriate connection, then proceed to the corresponding instruction (A, B or C) on the next page. Best (Supports up to 1080i/1080p, 1080p/24F resolution.) Video HDMI cable Audio No analog audio connection required.
Connections 2. Connect the cables by following the illustrations below. Connecting a TV using an HDMI cable (Best) COMPONENT VIDEO OUT AC IN BITSTREAM / PCM HDMI OUT AUDIO OUT OPTICAl HDMI OUT Notes: • Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.
Connecting to an Audio System • When you change the connections, all devices should be turned off. • Refer to the manual accompanying external devices for more information. Via 2-Channel Analog Audio Output COMPONENT VIDEO OUT AC IN BITSTREAM / PCM VIDEO HDMI OUT OPTICAl...
Connections Wired Network Connection Your Blu-ray disc player can be connected to your home network: • By connecting an Ethernet cable to the ETHERNET jack on the rear of your player and to a wired hub or router. Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.
Network Test Modem Port Notes: • This unit is compatible with TOSHIBA’s Wireless LAN Adapter only. Model name: WLM-10UB1 • You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the wireless network.) •...
Connections Connecting the Speakers (For 7.1 Audio Channel) You can connect the speakers as shown in the following diagram to obtain the 7.1 audio channels effects. Using the audio cables, connect the MUlTI CHANNEl AUDIO OUTPUT (SBL, SBR, C, SW, SL, SR, FL & FR) terminals on the rear of the Blu-ray disc player to 7.1 Channel ANALOG AUDIO IN terminals of your Amplifier.
positioning the Speakers (For 7.1 Audio Channel) How you set up your speakers can affect the bass and the sound field. Note the following points: • Place speakers on flat secure bases. • Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.
Playback Information on playback Before you start playing back a disc, read the following information. Playable Discs and Files This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes and color systems as described below.
Color Systems BD-video and DVD-video are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada). Region Codes This unit has been designed to play back BD-video with region “A”...
Playback playing a Disc This section shows you the basics on how to play a disc. Basic playback Preparations • When you want to view a disc, turn on the TV and select the video input connected to the Blu-ray disc player. Press the ON/STANDBY button.
Variable Speed playback You can play discs at various speeds, and resume playback from the location where you stopped playback. Playing in fast reverse / forward directions Press during playback. : Fast forward playback : Fast reverse playback Each time you press this button, the fast-forward or fast-reverse speed changes in the following sequence: Fast x 2...
Playback locating a specific chapter or track Press repeatedly to access the chapter or track number you want. Playback starts from the selected chapter or track. To locate succeeding chapters or tracks. Playback starts from the beginning of the current chapter or track. When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.
Repeating a Title, Chapter, Track or Specific Segment Repeating a title, chapter or track Press REPEAT repeatedly to select the desired repeat mode during playback. e.g. Repeat Off Repeat Title Repeat Chapter Repeat Off Repeat Track Repeat All Repeat Off Repeat File Repeat All Repeating a specific segment...
Playback pIp (BoNUSVIEW) Setting Some Blu-ray discs have the PIP function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing BONUS VIEW whenever the scene contains the secondary video. See the documentation that came with the disc for playback instructions.
Subtitle Selection During playback, press SUBTITlE. Subtitle 01/07 ENG PIP Subtitle Displaying on-screen Information You can check information about the current disc by pressing On-Screen display Disc format BD-ROM CD-DA In the example “01/07 ENG”, “01” indicates the currently selected subtitle. “07”...
Playback playing AVCHD/Mp3/WMA/JpEG Files You can play AVCHD, MP3, WMA or JPEG files that have been recorded on a disc on the Blu-ray disc player. Playing files on a data disc When you insert a data disc containing picture, music, or video files into your player, icons are added to the menu to indicate that video, music, or picture files are available for playback.
Pictures Optical Disc 30 item(s) Main Menu Settings Thumbnail Media Menu Start Slide Show Browse Music Now Playing File: 13/30 : displays source (Optical Disc/USB/SD) device name. : defines the total number of files that a device contains. : shows the currently playing file number. : shows all pictures in thumbnail mode.
Playback Using a USB Device You can play video, MP3 or JPEG files that have been stored on USB devices on the Blu-ray disc player. Operating a USB device Inserting a USB device into the USB slot on the back of Blu-ray disc player until it clicks.
Customizing the Function Settings You can change the default settings to customize performance to your preference. General Operations 1. Press to select Settings in home menu while in full stop mode, the Settings menu appears. 2. Press button, then use button to select the setting options.
Function setup Customizing the Function Settings Display Setting 1. In the main menu of Settings, press Display, and then press OK to confirm. Display HDMI Status Connected HDMI Preferred Format 1080p(HDMI) Resolution HDMI Auto TV Aspect 16:9 Pillarbox Film Mode Deep Color 2.
Customizing the Function Settings Audio Setting The settings in the Audio menu will configure the BD player’s digital audio outputs (HDMI or Optical). 1. In the main menu of Settings, press button to select Audio, then press OK button. Audio PCM Downsampling 48 kHz Digital Output...
Function setup Customizing the Function Settings Speaker Setting Once the speakers are connected to the system and properly configured, you can check to verify that the connections to the speakers are correct by running an audio speaker test. To run this test, follow the instructions described as below: 1.
Customizing the Function Settings language Setting 1. In the main menu of Settings, press language, and then press OK. Language English Menu English Audio Auto Subtitle None 2. Press to select OSD, Menu, Audio or Subtitle, and then press OK. 3.
Function setup Customizing the Function Settings Turning parental control on or off 1. In the main menu of Settings, press , then press to select Parental, and then press OK. to select Parental Control, then press OK. 2. Press 3. Press to select On or Off, then press OK.
Customizing the Function Settings Screen Saver Duration: This Blu-ray disc player has a screen saver feature that turns the screen black when your player is inactive. You can set the interval time you want your player to wait before activating the screen saver. CEC Support: This option is used to allow the TV remote control to control certain functions of the Blu-ray disc player;...
2. Creating Netflix account If you are not a Netfix Member: Select “no”. Read the instructions displayed on the TV screen, and visit http://www.netfix.com/toshiba from your PC. Sign up to create your account, then select “I’m now a member”. If you are a Netfix Member: Select “Yes”.
Using the Connected Applications Watching Movies with BlOCKBUSTER This Blu-ray Disc Player enables you to use the following services provided by Blockbuster. 1. In Home Menu, press to select Connected. 2. Press , then press to highlight Blockbuster, and then press OK to enter Blockbuster main menu. •...
Function setup Using the Connected Applications listening to Music with PANDORA™ Using an existing Pandora account to select Connected. 1. In Home Menu, press 2. Press , then press to highlight Pandora, and then press OK to confirm. 3. Select “I have a Pandora account” from the option list. 4.
Others Troubleshooting & Maintenance Troubleshooting If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist. Problem No power No sound or picture Distorted picture Completely distorted picture or black / white picture with BD / DVD No sound or distorted sound Picture freezes momentarily during...
Others Troubleshooting & Maintenance Problem The password for rating level has been forgotten Cannot connect to the network Cannot connect to the network while my PC is connected to the network Cannot use the BD-Live function The playback of BD-video or download of data does not perform properly Notes...
Others Glossary Analog Audio An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square);...
Page 42
Others Glossary local Storage A storage area of sub contents for playing virtual packages on BD-video. MP3 (MPEG audio layer 3) MP3 is a method of compressing files. You can copy MP3 files on BD-RE/-R, DVD-RW/-R, CD-RW/-R or SD Memory Card from the computer and play back the files on this unit.
Others Specifications Signal system Power requirements Power consumption Dimensions (width x height x depth) Weight Operating temperature Operating humidity Video output RCA jack Component video output RCA jack x 3 HDMI output HDMI jack x 1 Audio output (Analog) RCA jack x 2 Audio output (Digital) Optical jack x 1 Multi channel audio output...
United States Warranty Digital Audio Video (“DAV”) Product - Exchange Warranty Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS DAV PRODUCT AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
Page 45
However, some of the software components distributed under an EULA are made available for use by the user on the assumption that they are not copyrighted or warranted by TOSHIBA or any third party. These software components are licensed to the user free of charge and therefore not covered by any warranty within the scope of the applicable laws.
Page 46
Others Open-Source Third-party Software Included in the BD-Player (as of Feb 2010): Software license (*= source must be distributed on request) A copy of the GPL2.0 license is provided in Appendix K A copy of the LGPL2.1 license is provided in Appendix L *backtrace GPL2 (Included in DVD 3.x [7630 systems] only) *directfb-extra...
Page 47
Others *mtd-utils *ntfs-3g *passwd *route *sfdisk *shutdown *tinylogin *hotplug *utelnetd *procps *libfreetype.so.6.3. *libtermcap.so *libtermcap.so.2.0.8 zlib The terms and conditions which apply to this software are provided in Appendix F. libusb.so uClibc tcpdump The terms and conditions which apply to this software are provided in Appendix M. strace The terms and conditions which apply to this software are provided in Appendix M.
Page 48
Others Appendix A - CURl license COPYRIGHT AND PERMISSION NOTICE Copyright (c) 1996 - 2009, Daniel Stenberg, <daniel@haxx.se>. All rights reserved. Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.
Page 49
Others 1. The origin of this source code must not be misrepresented; you must not claim that you wrote the original software. 2. Altered versions must be plainly marked as such and must not be misrepresented as being the original source. 3.
Page 50
Others Appendix G – Freetype license The FreeType Project LICENSE ---------------------------- 2006-Jan-27 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction ============ The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.
Page 51
Others These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us. 3. Advertising -------------- Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission.
Page 52
Others Original SSLeay License ----------------------- /* Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;...
Page 53
Others Appendix K – GNU GPl 2.0 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
Page 54
Others c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it.
Page 55
Others Appendix l – GNU lGPl 2.1 GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL.
Page 56
Others Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it).
Page 57
Others c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
Page 58
Others How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).
Page 59
Others THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
