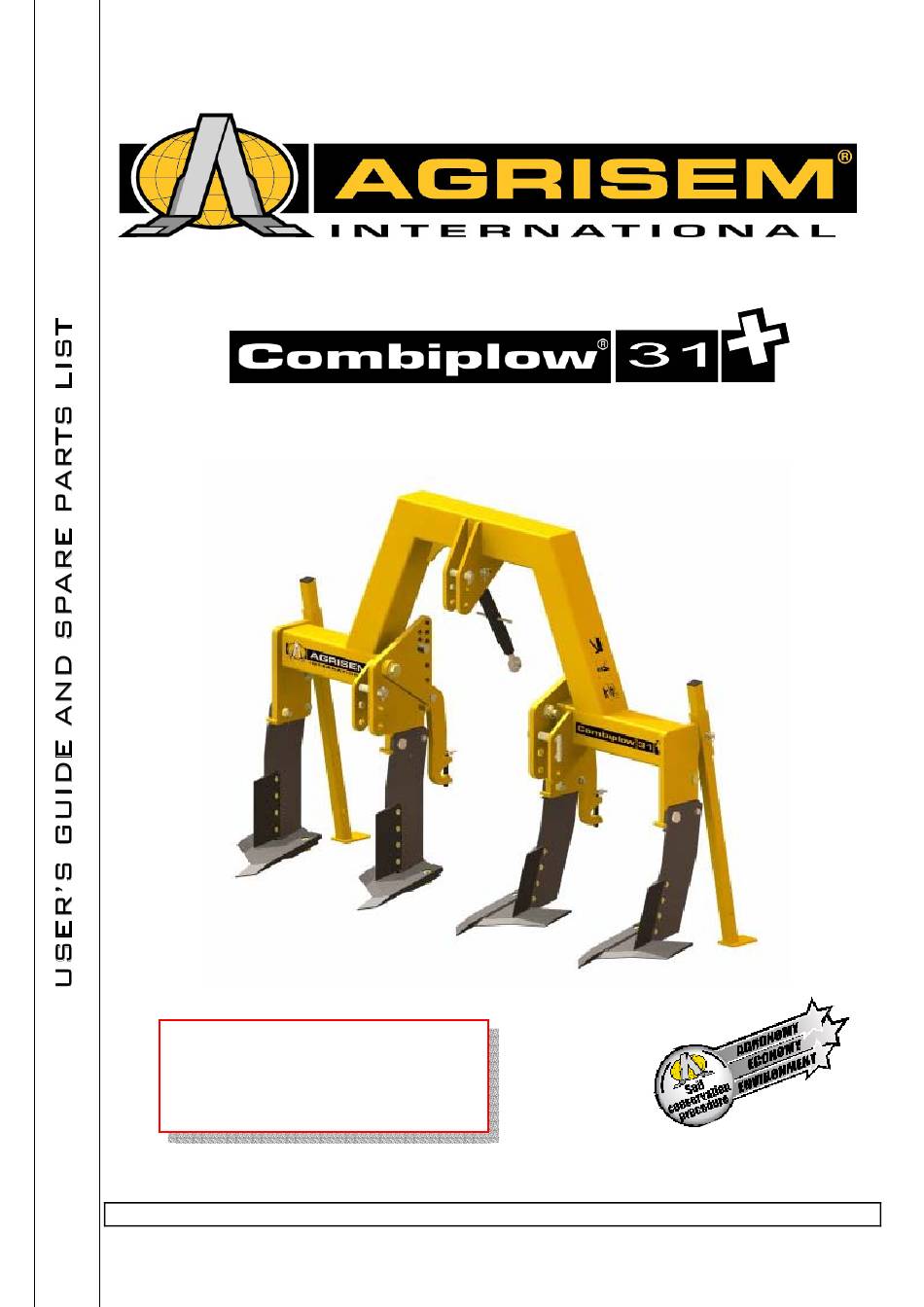

Summary of Contents for Agrisem Combiplow 31+
- Page 1 15 days with joined invoice (without these documents we cannot apply the guarantee procedure). AGRISEM - « Beaucé » F 44850 LIGNE Tél. : 33 (0)2 40 77 40 48 – Fax : 33 (0)2 40 77 45 45 NOTT-AN-569-B...
- Page 3 We are fully aware of, and accept, the contents of the instruction manual and we hereby adhere to the clauses of the guarantee. AGRISEM INTERNATIONAL"Beaucé" 44850 LIGNE - France Tel: 33 (0)2 40 77 40 48 Fax: 33 (0)2 40 77 45 45...
- Page 5 DECLARATION OF CONFORMITY TO « MACHINE » REGULATIONS “Beaucé” F - 44850 LIGNÉ - Tél. 33 (0)2.40.77.40.48 Fax. 33 (0)2.40.77.45.45 MODEL SERIAL N° EQUIPMENT MANUFACTURED UNDER LICENCE The above-named constructor certifies that the hereby designated new material: COMBIPLOW 31 Conforms to the dispositions of the modified “machines” regulations (regulation 98/37/CE) and the national legislations transposed Signed in Ligné, France , 19 May 2003...
- Page 6 Your dealer remains at your disposal for information on any particular point, so please don’t hesitate to contact him. In the interest of improvement, AGRISEM INTERNATIONAL reserves the right to modify their products, but in so doing they are not under obligation to reproduce these modifications on existing models.
-
Page 7: Table Of Contents
IV – Coupling of a complementary device V – Adjustment VI – Maintenance/repair VII – Advice for optimal use D – PIECES DETACHEES Blades installing Combiplow 31+ Kit 3 point linkage Kit Blade AGRISEM 610. Kit Axle Kit Support Kit stickers... -
Page 8: A - Guarantee Conditions
(eg. Counterfeit parts). • AGRISEM INTERNATIONAL cannot be held responsible for complaints or injuries to the owner or a third person, nor the indirect consequences as a result; likewise no recourse is possible in the case of the breakdown of an instrument due to a defect or incident with the machine. - Page 9 B) The recourse must imperatively be formulated on the AGRISEM INTERNATIONAL guarantee reclamation form and sent by the dealer to the company’s technical service, by recorded delivery, with an acknowledgement of receipt, within a delay of one month following the incident. The...
-
Page 10: Correct Use Of The Machine
CORRECT USE OF THE MACHINE The COMBIPLOW 31+ produced by AGRISEM INTERNATIONAL must only be used for the work they are destined for. Stubble-breaking of arable soil in standard conditions In the case of damage due to use of the machine for work outside the constructor’s specifications, the constructor can not be held responsible. -
Page 11: B - Safety Instructions
2. This COMBIPLOW 31+ was conceived for precise work, it must always be in perfect working order and only repaired with original AGRISEM INTERNATIONAL parts. 3. All necessary precautions must be taken when adapting working parts that are heavy or sharp. - Page 12 Beware ! The hydraulic circuit is under pressure. 1. When assembling the jacks and hydraulic devices take care to connect up the circuit correctly as indicated in the manufacturer’s instructions. 2. Before connecting a hose to the hydraulic circuit of the tractor ensure that the tractor’s circuits and those of the COMBIPLOW 31+ are perfectly clean and not under pressure.
-
Page 13: General Safety Rules
1.3 GENERAL SAFETY RULES • Never let children climb on the tractor or play close to equipment, even when the machine is stopped ; • On delivery of a machine (new or second-hand) demand the user’s manual and the certificate of conformity to the Labour code and thereon respect the constructor’s instructions ;... -
Page 14: C - Using Your Combiplow 31
C – USING YOUR COMBIPLOW 31+ I – Description The COMBIPLOW 31+ framework can be equipped with a variety of blades. Each blade is supplied with replaceable wear and tear part. It is protected with a shear bolt or a safety spring. The blades’ working depth is controlled by the depth-control device or by a pair of adjustable wheels. -
Page 15: Adjustment
Putting into operation : • In order to respect the parallelogram effect, ensure that the distances AA’ and BB’ are equal. • With adjusting of the stop axle C you can control the working depth. So, higher you place the stop axle C, more deeply you work with Combiplow 31+. -
Page 16: Advice For Optimal Use
The correct use of the COMBIPLOW 31+ optimizes and ensures a good planting of your crop. AGRISEM INTERNATIONAL can not be held responsible for soil degradation or a result which is not up to your expectations. The user must make his own decisions and assume the risks taken... -
Page 17: D - Pieces Detachees
D – SPARE PARTS... -
Page 19: Blades Installing
Blades installing Blade outside Blade inside 2548 AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45... - Page 20 Combiplow 31+ - 3.00m 4 blades Reference : BC-31+304-AGR AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45...
-
Page 21: Combiplow
Reference Description Qty. Weight Comments CBP04-01-501 Frame 278.59 CBP01-15-001 Kit shafts 5.13 AGR20-612 Right-hand Agrisem 610 blade 32.93 AGR20-611 Left-hand Agrisem 610 blade 32.87 VPI-503 Flanked fixing bolt Ø30 0.44 EN18 Nylstop Nut M18 - 8 - bichromated yellow 0.06 VSC-504 Safety screw Ø18... -
Page 22: Kit 3 Point Linkage
Kit coupling arm Reference : CBP04-02-001 AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45... - Page 23 Kit coupling arm Reference : CBP04-02-001 Weight : 37.46 Kg Seep Reference Description Qty. Weight Comments CBP04-02-601 Coupling arm 13.10 CBP04-02-602 Coupling arm ring 0.14 EN30 Nylstop Nut M30 - 8 - bichromated yellow 0.27 R30M Average washer Ø30 - yellow electro zinc 0.07 VH30-120 Screw H - M30 x 120 - 8.8 - bichromated yellow...
- Page 24 Agrisem 610 blade kit Ø30 and Ø18 AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45...
- Page 25 Seep Reference Description Qty. Weight Comments LAM-611 Left-hand 610 blade 20.14 SOC2012-331 Left-hand Twinplow Agrisem winged ploughshare 8.49 BOR25-131 Reinforced left-hand 610 leading edge 1.92 VFHC20-050-FT Screw FHc - M20 x 50 - 8.8 - bichromated yellow 0.14 EH20 Nut H - M20 - 8 - bichromated yellow 0.067...
-
Page 26: Kit Axle
Kit shafts Reference : CBP01-15-001 AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45... - Page 27 Kit shafts Reference : CBP01-15-001 Weight : 5.13 Kg Seep Reference Description Qty. Weight Comments 36-140-PB Coupling shaft Ø36 x 140 with stop 1.81 32-110-PB Coupling shaft Ø32 x 110 with stop 1.35 GC-10 Bolt clip Ø10 0.05...
-
Page 28: Kit Support
Kit support Reference : CBP01-07-001 AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45... - Page 29 Kit support Reference : CBP01-07-001 Weight : 9.32 Kg Seep Reference Description Qty. Weight Comments 32-07-501 Support 8.94 22-078 Coupling shaft Ø22 x 78 0.33 GC-8 Bolt clip Ø8 0.03 CT50505 Tube-mask 50x50x5 0.02...
-
Page 30: Kit Stickers
Danger of injury. Minds yours ands-pinches. Danger of injury. Keep your distance at the rear of tractor when manoeuvring. Danger of injury. AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : 33.(0)2.40.77.40.48 - Fax : 33.(0)2.40.77.45.45... - Page 31 Sharp-edged sticker - 78 x 78 0.00 ETIQ-504 Coupling sticker - 78 x 78 0.00 ETIQ-503 Anti-nipping sticker - 78 x 78 0.00 Plaque Signalization plate 0.01 RIV40_08 Mushroom headed fluted rivet 0.00 AGRISEM500 AGRISEM stickers Lg: 500mm 0.01 ETIQ-803 Combiplow 31+ sticker 0.00...
