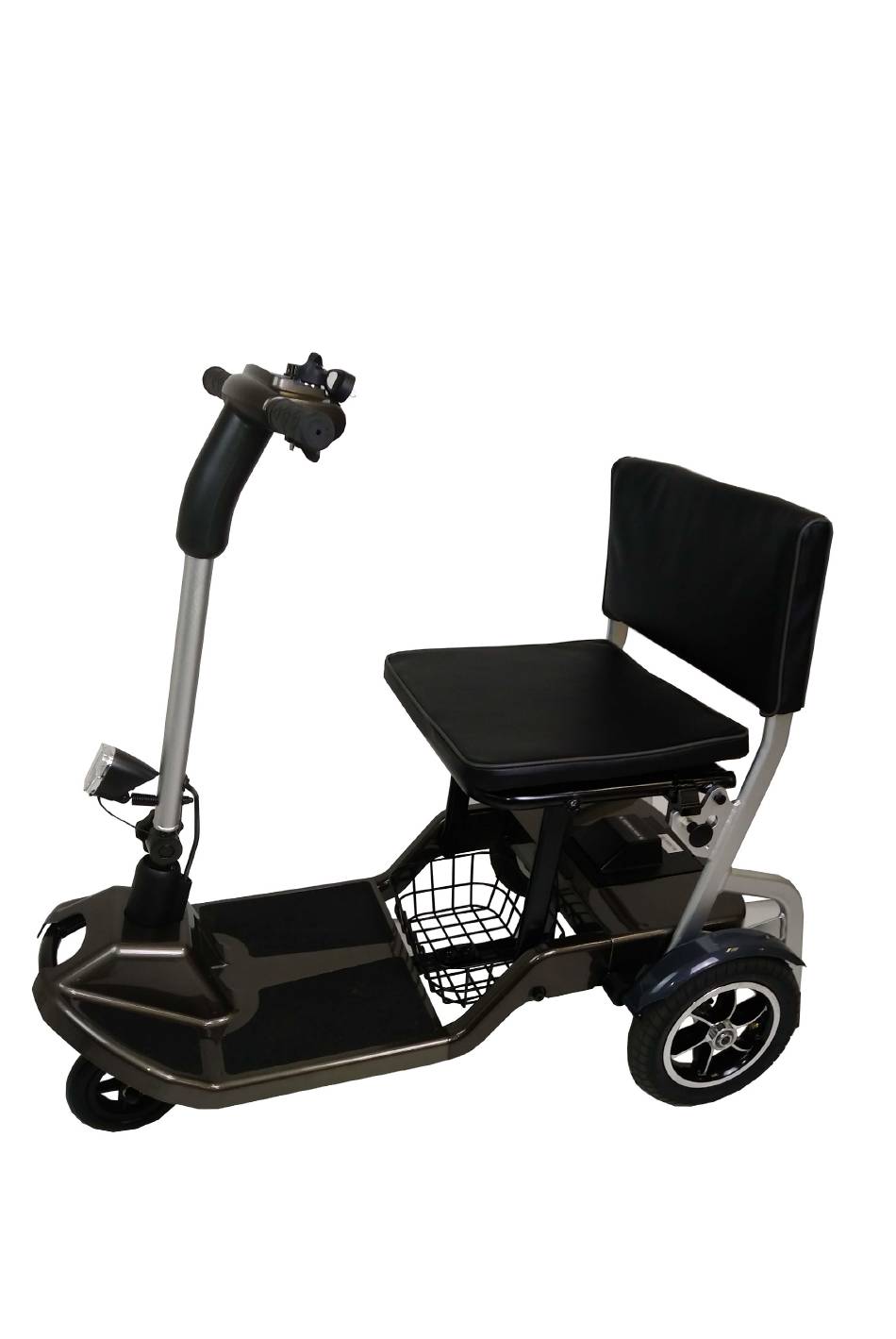

  • Page 1 QFold Mobility Scooter User Manual...

  • Page 2: Table Of Contents

    Welcome! Congratulations on the purchase of your new QFold Mobility Scooter! The advanced ultra lightweight design of the QFold with its highly engineered auto-folding ensures many years of enhanced trouble-free mobility. Correct use improves your mobility and quality of life.

  • Page 3: Safety Guidelines

    1.0 Safety Guidelines WARNING! An authorized Provider or qualified technician must perform the initial setup of this scooter and must perform all of the procedures in this manual. The symbols below are used throughout this owner’s manual. It is very important for you to read them and understand them completely.

  • Page 4: Pre-Ride Safety Check

    Additional general information can be found on the supplemental information sheets and booklets included in your Owner’s Package. Please fully read and review the information, and keep it readily available for future reference. 2.0 Pre-Ride Safety Check Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check before each use to make sure your scooter operates smoothly and safely.

  • Page 5: Specifications

    Charger 2 Amp Charging Type Battery Box that can be off-board Brake Automatic Electromagnetic REMARK One Rehab reserves the right to modify the specification if necessary. The final specification is subject to the individual scooter you purchase from the dealer.

  • Page 6: Components Of The Scooter

    4.0 Components of the Scooter Seat back cushion Front Wheel Seat base cushion Tiller Adjuster Seat Folding knob LED Light Battery Box Control Panel Rear mud guard Anti Tip Wheel Rear Wheel Freewheel Lever Storage basket Your scooter is equipped with a number of elements and parts. You should know these before using the scooter.

  • Page 7: Operations - Control Panel

    5.0 Control Panel Battery Indicator/Gauge Throttle Lever Forward/Back Speed Adjustment Dial Light Switch Key Switch Tiller Handle Horn Button 5.1 Battery Indicator/Gauge (1) Indicates the voltage of the batteries: • Green – batteries are fully charged. • Yellow – batteries are half full. •...
  • Page 8 5.4 Horn Button (4) This button activates a warning horn. Your scooter must be turned on for the horn to be operational. Do not hesitate to use the warning horn when doing so may prevent an accident or injury. 5.5 Throttle Control Lever - Forward/Back (5) This lever allows you to control the forward speed and the reverse speed of your scooter up to the maximum speed you pre-set with the speed adjustment dial.

  • Page 9: Operation - Folding And Unfolding

    6.0 Operation - Folding and Unfolding The scooter is fast and easy to assemble and fold by the following steps: 6.1 Unfold Scooter To unfold the scooter first sit the scooter with all wheels on the ground as shown. [Fig 6.0.1].
  • Page 10 6.2 Unfold the seat You are now ready to unfold the seat. To do this, simply lift-up the seat back into the driving position as shown below. [Fig 6.2.1] You should hear and feel the fold knob click into the lock position. Check that the seat fold knob has clicked into position as shown. [Fig6.2.2] (The fold knob is positioned on the left-hand side of the scooter).
  • Page 11 Now with the seat folded, loosen off the tiller adjuster knob and gently lower the tiller into the folded position. [Fig 6.3.3] The tiller handles should be able to rest between the chassis as shown below. Re-tighten the tiller knob to hold the tiller into position. This will then allow you to pull the scooter on its rear tip wheels as shown in 6.4 Storage and travel.

  • Page 12: Operation - Fitting Seat Covers

    7.0 Operation - Fitting Seat Covers 7.1 Seat Covers The seat base and seat back have removable padded covers. These are easy to fit or remove. The three items are shown below [Fig 7.1.1] [Fig 7.1.1] 7.2 Padded Seat Bar To fit the padded back bar cover, simply undo the Velcro and fold around the back bar and then connect the Velcro back into position.
  • Page 13 7.3 Back Seat Cover To fit the seat back cover, make sure the back support section is positioned as shown, [Fig 7.2.1] then simply pull down the back cover over the back, pulling the flap under the back bar. The flap can be securely tightened by the Velcro as shown. [Fig 7.3.1] 7.4 Base Seat Cover To fit the seat base cushion, simply line up the Velcro strips on the cushion and base [7.4.1] of seat and insert into place [7.4.2].

  • Page 14: Operation - Fitting The Battery Box

    8.0 Operation - Fitting the Battery Box 8.1 Insert Battery Box To insert the battery box, simply place into position and push forwards as shown below, [Fig 8.1.0] gently lowering into position. Make sure the rubber protector flap remains on top of the battery box.
  • Page 15 [Fig 9.0.1] [Fig 9.0.2] WARNING! Before placing your scooter into or taking it out of freewheel mode, remove the key from the key switch. Never sit on the scooter when it is in freewheel mode. Never put your scooter in freewheel mode on any incline.

  • Page 16: Operation - Batteries And Charging

    Only every use the battery charger supplied with your vehicle, or a charger that has been approved by One Rehab. Never charge 10 Ah batteries with a 5 Ah battery charger. Always use a 2 Ah battery charger.
  • Page 17 WARNING! Risk of short circuit and electric shock if the battery charger has been damaged. Never use the charger if it has been dropped or damaged. WARNING! Do not use the battery if it gives off an odour, generates heat or appears abnormal in any way.
  • Page 18 10.3 How to charge your batteries • Make sure you read and understand the battery chargers user manual, if supplied, as well as the safety notes on the charger. • Turn off the scooter power and remove the key. • Remove the battery box from the scooter.

  • Page 19: Operation - Driving Your Scooter

    11.0 Operation - Driving Your Scooter 11.1 Before Getting on to Your Scooter • Keep your batteries fully charged and avoid deeply discharging your batteries. • Never leave the manual freewheel lever in the forward position unless you are manually pushing your scooter. WARNING! Never attempt to get onto or off of your scooter without first removing the key from the key switch.
  • Page 20 WARNING! The following can adversely affect steering and stability while operating your scooter: • Holding onto or attaching a leash to walk your pet. • Carrying passengers (including pets). • Hanging any article from the tiller. • Towing or being pushed by another motorized vehicle. IMPORTANT! Keep both hands on the tiller and your feet on the floorboard at all times while operating your scooter.
  • Page 21 • Always drive straight up or straight down an incline, ramp, slope etc. • Never drive across (traverse) an incline, ramp etc, in any direction – Driving across an incline, ramp etc could result in turning the scooter over resulting in serious injury or death.

  • Page 22: Emi

    12.0 EMI / RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CB’s), amateur radios (ham radios), wireless computer left, microwave transmitters, paging transmitters etc. These electromagnetic (EM) waves are invisible and increase in strength the closer one gets to the source of transmission.

  • Page 23: Daily Checking

    13.0 Daily Checking Check the following items before driving. If you find anything abnormal, contact your scooter dealer for a further inspection before using it. Item Inspection Content Handle bar Is it tight? Can they be turned left or right smoothly? Speed Dial Can it be adjusted freely and function well? Throttle Lever...

  • Page 24: Basic Troubleshooting

    15.0 Basic Troubleshooting This table is only a guide to aid you in getting your scooter operating, should you have any problems. If you are unable to get your scooter operating, please contact your Scooter Dealer. Sympton Possible Solution Scooter does not 1.

  • Page 25: Flash Codes

    16.0 Flash Codes Scooter Controller Internal Diagnostics The diagnostic flash codes for your scooter are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from the Power light in the event one of the conditions listed below develops. Flash Flash Fault...

  • Page 26: Warranty

    17.0 Warranty WARRANTY POLICY: LIMITED WARRANTY. IMPORTANT NOTICE – TO ENSURE THIS WARRANTY IS VALIDATED IT HAS TO BE COMPLETED AND RETURNED TO ONE REHAB WITHIN 14 DAYS OF PURCHASE 17.1 Two-Year Limited Warranty The main chassis frame is covered by a two-year warranty.
  • Page 27 This warranty only covers failures due to defects in materials or workmanship which occur during normal use and does not cover damage that occurs in shipment or failures which are caused by products not supplied by One Rehab or failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, commercial use or by anyone other than an authorized dealer, or damage that is attributable to the acts of God.
  • Page 28 QFold Mobility Scooter User Manual...
