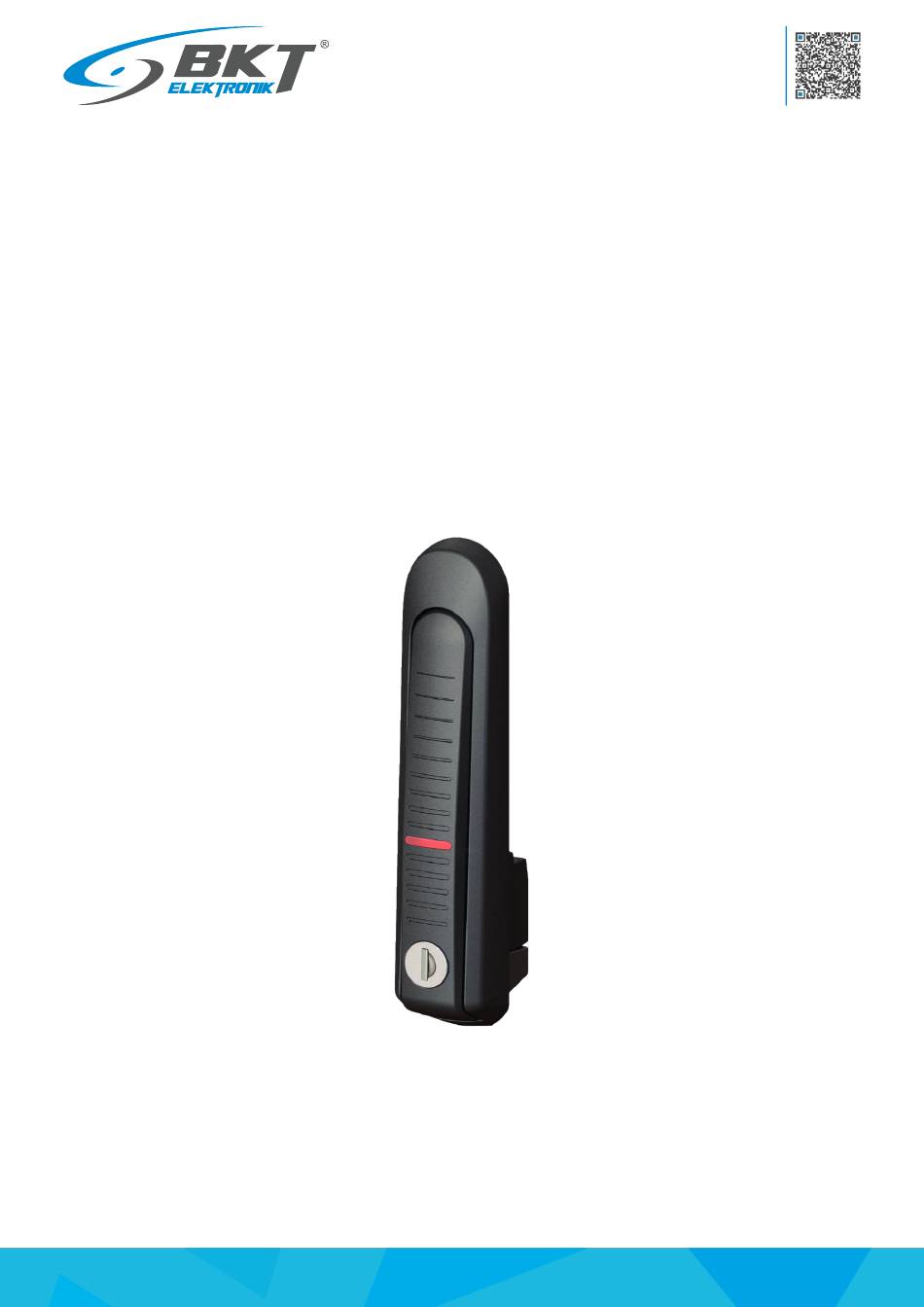

- Page 1 BKT Elektronik - Headquarter Poland, Lochowska 69 Str. 86-005 Biale Blota Phone: +48 52 36 36 750 e-mail: export@bkte.pl BKT AL200 Electronic locking & monitoring swinghandle with mechanical override - user manual - version 3 © 2022 BKT Elektronik www.bkte.pl...
-
Page 2: Table Of Contents
5 Operation mode in the access control system ..............................12 5.1 Connection ......................................12 5.2 Electrical opening ....................................13 5.3 Handle position indication..................................13 5.4 LED signalling ......................................14 6 Accessories ......................................... 14 7 Document revisions ......................................15 AL200 swinghandle manual... -
Page 3: Introduction
Device characteristics The AL200 is an electronic swinghandle for ICT cabinets. It allows opening of cabinet doors in a standard mechanical way and by electrical remote control. It can operate with any access control system. Together with optional card reader it can also work as a stand-alone access control system. -
Page 4: Technical Specifications
The handle has a connector for powering the reader. The reader is powered by the same voltage as the handle, so it is necessary to select the value of the supply voltage appropriate for the handle and also for the optional reader. Maximum allowable power 200mA consumption by the reader AL200 swinghandle manual... -
Page 5: Assembly
Quick Start Guide with screw Dimensions 3.2.1 Swinghandle dimensions 3.2.2 AR221 reader dimensions Mounting hole Make a hole in the door at such a distance from the swinghandle that the length of the reader cable will enable connection. AL200 swinghandle manual... -
Page 6: Cut Out Dimensions
3.2.3 Cut out dimensions 3.2.4 Cogwheel dimensions 3.2.5 Cam dimensions AL200 swinghandle manual... -
Page 7: Single Point Assembly
Cam h=0mm (locking height H=18mm) Multi-point assembly AL200 swinghandle 122AL002000 Fastening element with screw 122AM002001 Cogwheel mechanism 122AM002002 Cogwheel mechanism adapter 122AM002003 Bushing for cam 122AM002004 Cam bolt M6x16 122AM002005 Cogwheel screw F4.1x22 122AM002006 Cam h=0mm (locking height H=24mm) AL200 swinghandle manual... -
Page 8: Connectors
Card reader power supply output +12V (directly connected to +12V of 8-pin socket). Wiegand 0 card reader input. WIEGAND 0 Wiegand 1 card reader input. WIEGAND 1 UTP AW205 cable 8-pin socket white-brown brown white-green green blue white-blue orange white-orange AL200 swinghandle manual... -
Page 9: Standalone Mode
The handle 8-wire cable can be extended to a maximum length of 100m with selecting the appropriate cross-section of the wire. The maximum allowed length of the reader cable is 3m. AL200 swinghandle manual... -
Page 10: Master Card Programming
When the green diode is flashing and the master card is not applied, the handle will return to the normal operating state and the existing user cards will not be removed from the memory. Wait 3 seconds for the handle to restart. Keep the master card in a safe place. AL200 swinghandle manual... -
Page 11: Adding New User Card
Make sure the card does not open the handle anymore - the red LED should flash once. Removing all user cards To remove all user cards, use the master card programming procedure (see chapter 4.2 Master card programming). AL200 swinghandle manual... -
Page 12: Led Signalling
Input for handle position 4-pin socket yellow Relay or OC control output grey pink Unused wires must blue be insulated. The handle connection cable can be extended to a maximum length of 100m using eg. UTP cat.5e twisted pair. AL200 swinghandle manual... -
Page 13: Electrical Opening
50mA, the output will be turned off. The STATUS output will return to normal operation after removing the overload and changing the position of the handle. Position of the handle STATUS output state STATUS output inactive (NPN Handle closed transistor is OFF) STATUS output active (NPN Handle open transistor is ON) AL200 swinghandle manual... -
Page 14: Led Signalling
The electric lock of the handle is open (controlled on the CTRL input) Accessories Product Description Part number AW285 - AL200 swinghandle 8-wire connection cable, length 5m; connectors: 1-plug, 122AW002850 2-ferrules AW240 - AL200 swinghandle 4-wire connection cable, length 0.5m; connectors: 1-plug, 122AW002400... -
Page 15: Document Revisions
Changes Date Initial version. March 2021 Updated 3.2, 3.3 and 3.4 July 2021 Support for rfid readers has been added for handles manufactured from 2Q2022. The device February 2022 manufacturing date can be checked on the sticker. AL200 swinghandle manual...
