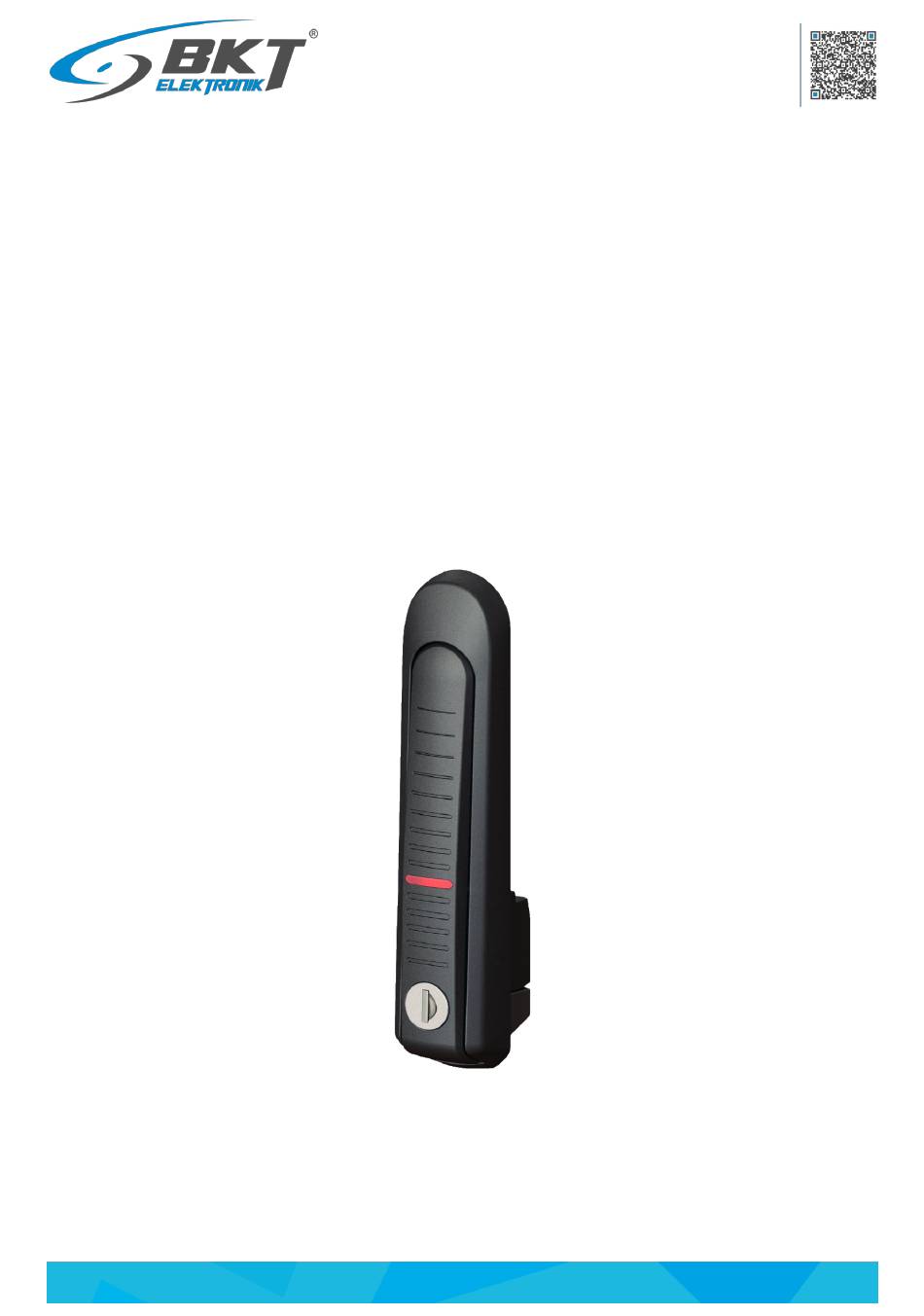

- Page 1 BKT Elektronik - Headquarter Poland, Lochowska 69 Str. 86-005 Biale Blota Phone: +48 52 36 36 750 e-mail: export@bkte.pl BKT AL200 Electronic locking & monitoring swinghandle with mechanical override - user manual Version 2 © 2021 BKT Elektronik www.bkte.pl...
-
Page 2: Table Of Contents
Table of contents 1 Introduction ........................................ 3 1.1 General information ..................................3 1.2 Device characteristics ..................................3 2 Technical specifications ....................................3 3 Assembly........................................4 3.1 Package Contents .................................... 4 3.2 Dimensions...................................... 4 3.2.1 Swinghandle dimensions ..............................4 3.2.2 Cut out dimensions................................5 3.2.3 Cogwheel dimensions ................................ -
Page 3: Introduction
The specification is owned and copyrighted by BKT Elektronik Sp. z o.o. Information contained herein may be changed at owner’s discretion without any notice. BKT Elektronik may not be held liable for any possible inaccuracies and discrepancies in this document. -
Page 4: Assembly
EN 61000-4-6:2014 Immunity to conducted disturbances, inducted by radio-frequency fields. EN 61000-6-4:2007/A1:2011 Electromagnetic compatibility (EMC) – Emission standard for industrial environments. Part number 122AL002000 Assembly The swinghandle can work in a single-point system (only with a cam) or a multi-point system (with a cogwheel mechanism and a cam). The package does not contain all the mounting elements. -
Page 5: Cut Out Dimensions
3.2.2 Cut out dimensions 3.2.3 Cogwheel dimensions 3.2.4 Cam dimensions AL200 swinghandle manual... -
Page 6: Single Point Assembly
Single point assembly AL200 swinghandle 122AL002000 Fastening element with screw 122AM002021 122AM002022 Cap adapter 122AM002023 Cap screw F4.1x12 122AM002024 Cam bolt M6x8 122AM002100 Cam h=0mm (locking height H=18mm) Multi-point assembly AL200 swinghandle 122AL002000 Fastening element with screw 122AM002001 Cogwheel mechanism 122AM002002 Cogwheel mechanism adapter 122AM002003... -
Page 7: Connection
Connection To connect the handle to external access control systems, use the AW200 or AW205 cable (see chapter 5 Accessories). The cable can be extended to a maximum length of 100m using UTP Cat5e cable. Connectors Socket type 53047-0810 Power supply input: GND w/brown Power supply input: +12V DC +12V... -
Page 8: Handle Position Indication
Handle position indication The device has an optical sensor of the handle position, thanks to which this information can be transferred to an external access control system. The state of the STATUS output corresponds to the position of the handle. The STATUS output has overload protection. If the current through the transistor is greater than 50mA, the output will be turned off. -
Page 9: Document Revisions
Document revisions Version Changes Date Initial version. March 2021 Updated 3.2, 3.3 and 3.4 July 2021 AL200 swinghandle manual...
